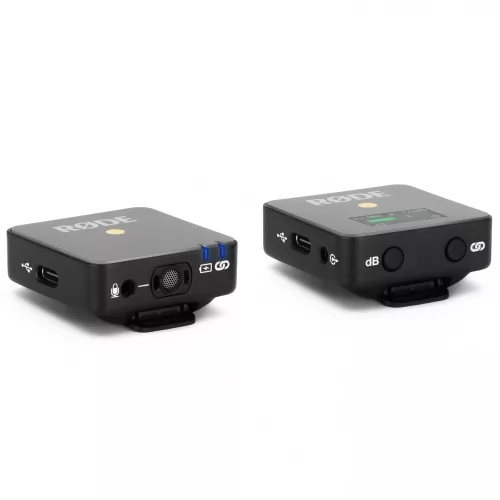

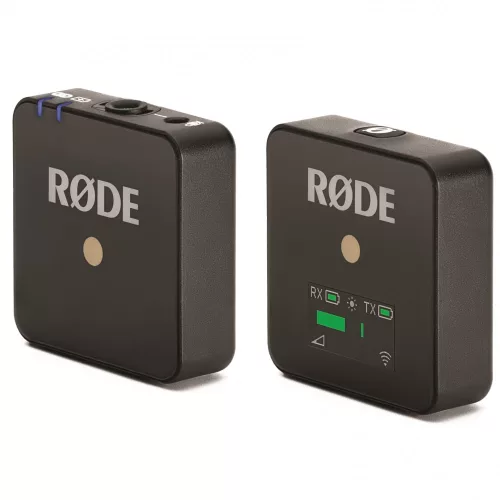

The Transmitter (TX)
Measuring in at an ultra-compact 44mm x 45.3mm x 18.5mm and weighing just 31g, the Wireless GO transmitter (TX) acts as either a quick and easy clip-on wireless microphone, thanks to a high-quality built-in omnidirectional condenser capsule, or as the world’s smallest beltpack transmitter for a lavalier microphone via the 3.5mm TRS input. The Wireless GO’s quick clip-on capabilities make it perfect for run-and-gun journalists and vloggers in the field: never miss the action as it happens – no cables and great sound.
The Receiver (RX)

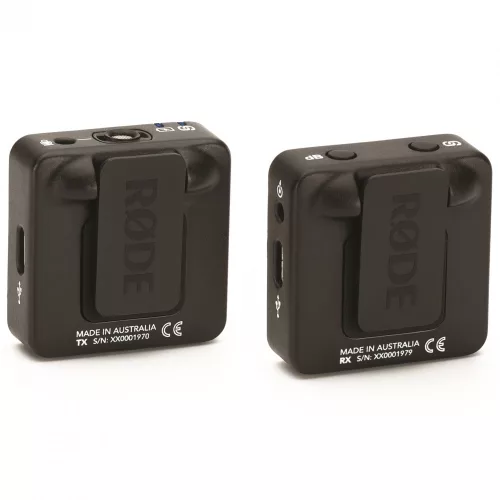

The RX is just as compact, measuring only 44mm x 46.4mm x 18.5mm and weighing only 31g, which makes your rig that much easier to carry and facilitates mounting on a range of camera gimbals and stabilisers. Its dual-purpose mount sits snug in your camera’s shoe mount, or clips easily onto your camera strap or an item of clothing. The supplied 3.5mm TRS output cable plugs into your camera’s audio input or, with the relevant available RØDE adaptors, into your recorder, GoPro, iPhone etc. There is also a three-stage output pad – 0dB, -6dB, -12dB – to tailor your output to your camera or recorder.
ACOUSTIC & ELECTRICAL SPECIFICATION
| Transmission type |
2.4GHz Digital Frequency Agile System |
| Acoustic Principle |
Pre-polarised pressure transducer |
| Polar Pattern |
Omnidirectional |
| Equivalent Input Noise @ Maximum Gain |
21.8dB (A-Weighted) |
| Frequency Range |
50Hz - 20kHz |
| External Mic Input |
20Hz - 20kHz |
| Maximum Output Level |
+3dBu |
| Maximum SPL |
100dB SPL (1kHz @ 1m) |
| Dynamic Range |
100dBA (Mic Preamplifiers) |
| Power Requirements |
Inbuilt Li-po battery rechargeable via USB |
| Battery Life |
Up to 7 hours |
| Analog Inputs |
3.5mm TRS lavalier microphone input (transmitter) |
| Analog Outputs |
3.5mm TRS (receiver) |
| Computer Connectivity |
USB (firmware update) |
| OS Requirements |
(For firmware update only) macOS 10.11 above Windows 10 and above |
MECHANICAL SPECIFICATION
| Form Factor |
Clip-on pack |
| Weight (g) |
TX: 31 RX: 31 |
| Dimensions (L x W x H, mm) |
TX: 44 × 45.3 × 18.5
RX: 44 x 46.4 x 18.5 |
| Included Accessories |

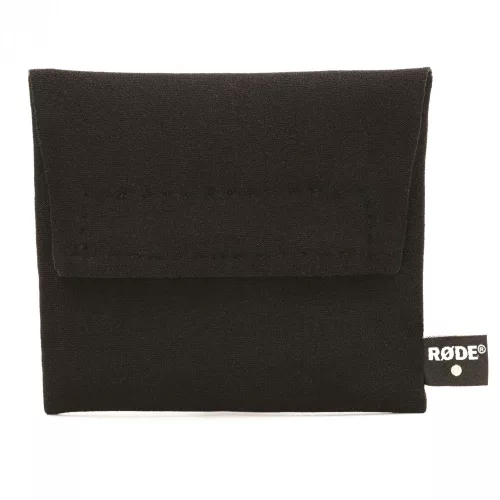

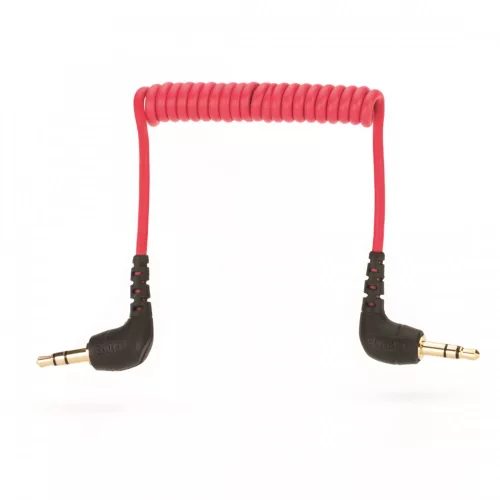

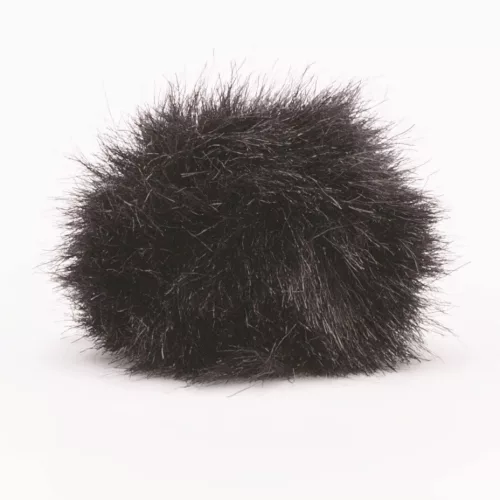

2 x fur windshield, 1 x pouch, 2 x USB-A to USB-C cables, 1 x SC2 cable |
