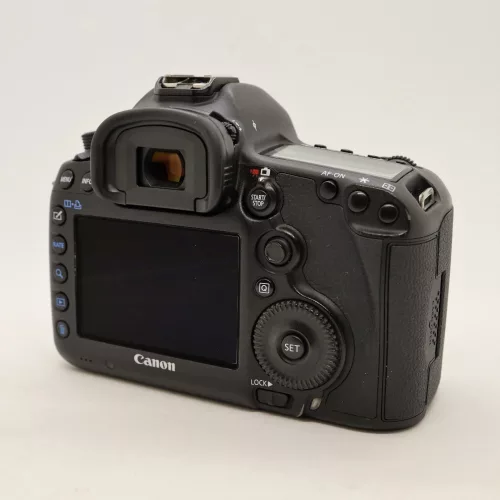

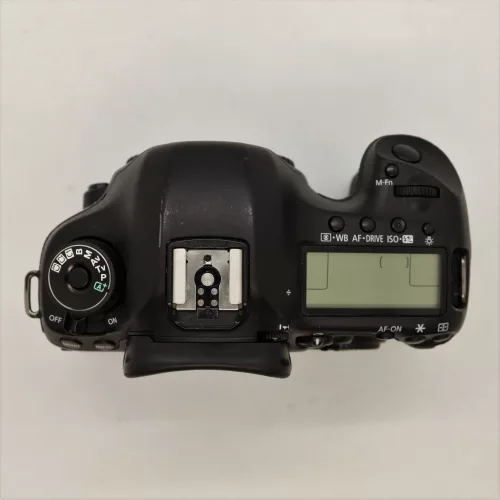

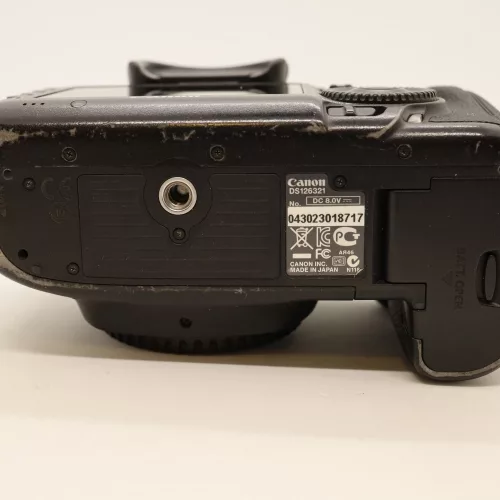

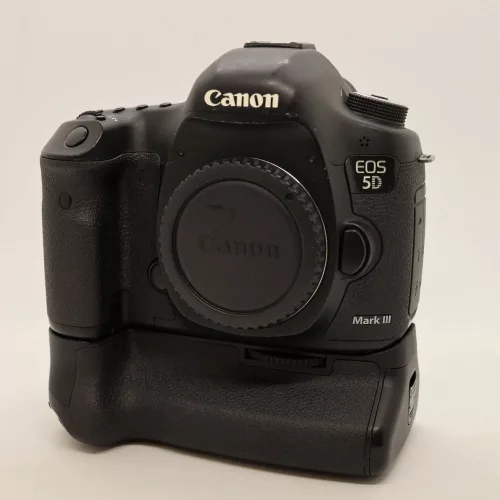

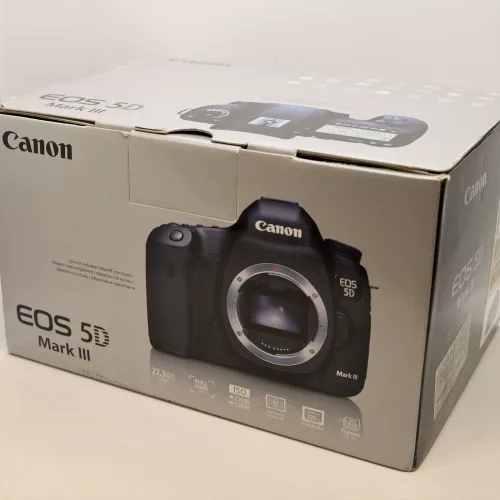

Canon EOS 5D mark III

Type

36 x 24 mm CMOS

Effective Pixels

Approx. 22.3 megapixels

Total Pixels

Approx. 23.4 megapixels

Aspect Ratio

3:2

Low-Pass Filter

Built-in/Fixed with fluorine coating

Sensor Cleaning

EOS integrated cleaning system

Colour Filter Type

Primary Colour

Type

DIGIC 5+

Lens Mount

EF (excludes EF-S lenses)

Focal Length

Equivalent to 1.0x the focal length of the lens

Type

TTL-CT-SIR with a dedicated CMOS sensor

AF System/ Points

61 Point / 41 f/4 cross-type AF points inc 5 dual cross type at f/2.8
The number of cross-type AF points will differ depending on the lens.

AF Working Range

EV -2 - 18 (at 23°C & ISO100)

AF Modes

AI Focus
One Shot
AI Servo

AF Point Selection

Automatic selection: 61 point AF
Manual selection: Single point AF (61, 41 cross type only, 15 or 9 points selectable)
Manual selection: Spot AF
Manual selection: AF point Expansion 4 points (up, down, left, right)
Manual selection: AF point Expansion surrounding 8 points
Manual selection: Zone AF
AF points can be selected separately for vertical and horizontal shooting

Selected AF Point Display

Superimposed in viewfinder and indicated on top LCD panel and Quick Control screen

AF Lock

Locked when shutter button is pressed half way in One Shot AF mode or AF-ON button is pressed.

AF Assist Beam

Emitted by optional dedicated Speedlite

Manual Focus

Selected on lens, default in Live View Mode

AF Microadjustment

AF Menu
+/- 20 steps ( wide and tele setting for Zooms)
Adjust all lenses by same amount
Adjust up to 40 lenses individually
Adjustments remembered for lens by serial number

Metering Modes

TTL full aperture metering with 63 zone Dual Layer SPC
(1) Evaluative metering (linked to All AF point)
(2) Partial metering (approx. 6.2% of viewfinder at centre)
(3) Spot metering (approx. 1.5% viewfinder at centre)
(4) Centre weighted average metering

Metering Range

EV 1 - 20 (at 23°C with 50mm f/1.4 lens ISO100)

AE Lock

Auto: In 1-shot AF mode with evaluative metering exposure is locked when focus is achieved.
Manual: By AE lock button in creative zone modes.

Exposure Compensation

+/-5 EV in 1/3 or 1/2 stop increments (can be combined with AEB).

AEB

2, 3, 5 or 7 Shots +/-3 EV 1/3 or 1/2 stop increments

ISO Sensitivity*

Auto (100-12800), 100-25600 (in 1/3-stop or whole stop increments)
ISO can be expanded to L: 50, H1: 51200, H2 102400

Type

Electronically-controlled focal-plane shutter

Speed

30-1/8000 sec (1/2 or 1/3 stop increments) + Bulb (Shutter speed range available varies according to shooting mode)

Type

Auto white balance with the imaging sensor

Settings

AWB, Daylight, Shade, Cloudy, Tungsten, White
Fluorescent light, Flash, Custom, Colour Temperature Setting.
White balance compensation:
1. Blue/Amber +/-9
2. Magenta/ Green +/-9.

Custom White Balance

Yes, 1 setting can be registered

WB Bracketing

+/-3 levels in single level increments
3 bracketed images per shutter release.
Selectable Blue/Amber bias or Magenta/ Green bias.

Type

Pentaprism

Coverage (Vertical/Horizontal)

Approx. 100%

Magnification

Approx. 0.71x¹

Eyepoint

Approx. 21mm (from eyepiece lens centre)

Dioptre Correction

-3 to +1 m-1 (dioptre)

Focusing Screen

Fixed (Transmissive LCD screen)

Mirror

Quick-return half mirror (Transmission: reflection ratio of 40:60, no mirror cut-off with EF600mm f/4 or shorter)

Viewfinder Information

AF information: AF point, focus confirmation, AF status indicator
Exposure information: Shutter speed, aperture, ISO speed (always displayed), AE lock,
exposure level, exposure warning
Flash information: Flash ready, flash exposure compensation, high-speed sync, FE lock,
red-eye reduction light
Image information: Highlight tone priority (D+), maximum burst (2-digit display), card
information, Battery check
Composition information
Grid, electronic level, Warning symbol
Displayed if any of the following is set: Monochrome, white balance
correction, One-touch recording quality switch, expanded ISO speed, or spot metering

Depth of Field Preview

Yes, with Depth of Field preview button.

Eyepiece Shutter

On strap

Type

8.11cm (3.2") Clear View II TFT, approx. 1040K dots

Coverage

Approx. 100%

Viewing Angle (Horizontally/Vertically)

Approx. 170°

Coating

Anti-reflection and Solid Structure

Brightness Adjustment

Adjustable to one of seven levels

Display Options

(1) Quick Control Screen
(2) Camera settings
(3) Dual Axis Electronic Level

Modes

E-TTL II Auto Flash, Metered Manual

X-Sync

1/200sec (EX series Speedlites only)

Flash Exposure Compensation

+/- 3EV in 1/2 or 1/3 increments

Flash Exposure Bracketing

Yes, with compatible External Flash

Flash Exposure Lock

Yes

Second Curtain Synchronisation

Yes

HotShoe/ PC Terminal

Yes/ Yes

External Flash Compatibility

E-TTL II with EX series Speedlites, wireless multi-flash support

External Flash Control

Via camera menu screen

Modes

Auto+, Program AE, Shutter priority AE, Aperture priority AE, Manual (Stills and Movie), Custom (x3)

Picture Styles

Auto, Standard, Portrait, Landscape, Neutral, Faithful, Monochrome, User Defined (x3)

Colour Space

sRGB and Adobe RGB

Image Processing

Highlight Tone Priority
Auto Lighting Optimizer (4 settings)
Long exposure noise reduction
High ISO speed noise reduction (4 settings)
Auto Correction of Lens Peripheral illumination
Chromatic aberration correction
Distortion correction
Resize to M1, M2 or S
RAW image processing - during image Playback only
Multiple exposure
HDR images 5 presets

Drive Modes

Single, Continuous L, Continuous H, Self-timer (2s+remote, 10s+remote),
Silent single shooting, Silent continuous shooting

Continuous Shooting

Max. Approx. 6fps. (speed maintained for up to 16270 images (JPEG)¹² or 18 images (RAW)) (with UDMA card)²

Type

Electronic viewfinder with image sensor

Coverage

Approx. 100% (horizontally and vertically)

Frame Rate

30 fps

Focusing

Manual Focus (Magnify the image 5x or 10x at any point on screen)
Autofocus: Quick mode, Live mode, Live Face detection mode

Metering

Real-time evaluative metering with image sensor
Active metering time can be changed

Display Options

Grid overlay (x3), Histogram, Aspect ratios, Dual Axis Electronic Level

Still Image Type

JPEG: Fine, Normal (Exif 2.3 [Exif Print] compliant) / Design rule for Camera File system (2.0),
RAW: RAW, sRAW1, sRAW2 (14bit, Canon original RAW 2nd edition),
Digital Print Order Format [DPOF] Version 1.1 compliant

RAW+JPEG Simultaneous Recording

Yes, any combination of RAW + JPEG possible, separate formats to separate cards possible

Image Size

JPEG: (L) 5760 x 3840, (M) 3840 x 2560, (S1) 2880 x 1920, (S2) 1920 x 1280, (S 3)720 x 480
RAW : (RAW) 5760 x 3840 (M-RAW) 3960 x 2640, (S-RAW) 2880 x 1920

Movie Type

MOV (Video: H.264 Intra frame / inter frame, Sound: Linear PCM)

Movie Size

1920 x 1080 (29.97, 25, 23.976 fps) intra or inter frame
1280 x 720 (59.94, 50 fps) intra or inter frame
640 x 480 (59.94, 50 fps) inter frame

Movie Length

Max duration 29min 59sec, Max single file size 4GB

Folders

New folders can be manually created and selected

File Numbering

(1) Consecutive numbering
(2) Auto reset
(3) Manual reset

Custom Functions

13 Custom Functions with 47 settings

Metadata Tag

User copyright information (can be set in camera)
Image rating (0-5 stars)

LCD Panel / Illumination

Yes / Yes

Water/ Dust Resistance

Yes (equal to EOS-1N)¹

Sound Memo

No

Intelligent Orientation Sensor

Yes

Playback Zoom

1.5x - 10x

Display Formats

(1) Single image with information (2 levels)
(2) Single image
(3) 4 image index
(4) 9 image index
(5) Magnified view
(6) 2 image compare display
(7) Movie edit

Slide Show

Image selection: All images, by Date, by Folder, Movies, Stills, Rating
Playback time: 1/2/3/5/10 or 20 seconds
Repeat: On/Off

Histogram

Brightness: Yes
RGB: Yes

Highlight Alert

Yes

Image Erase/Protection

Erase: Single image, All images in folder, Checkmarked images, unprotected images
Protection: Erase protection of one image at a time

Menu Categories

(1) Shooting menu (x4)
(2) AF Menu (x5)
(3) Playback menu (x3)
(4) Setup menu (x4)
(5) Custom Functions menu (x4)
(6) My Menu

Menu Languages

25 Languages
English, German, French, Dutch, Danish, Portuguese, Finnish, Italian, Norwegian, Swedish, Spanish, Greek, Russian, Polish, Czech, Hungarian, Romanian, Ukrainian, Turkish, Arabic, Thai, Simplified Chinese, Traditional Chinese, Korean and Japanese

Firmware Update

Update possible by the user.

Computer

Hi-Speed USB

Other

HDMI mini output, Video output (PAL/ NTSC), Headphone mini jack, External microphone (Stereo mini jack)

Canon Printers

Canon Compact Photo Printers and PIXMA Printers supporting PictBridge

PictBridge

Yes

Type

CompactFlash Type I (UDMA compatible), SD card, SDHC card or SDXC card

PC & Macintosh

Windows XP (SP2/SP3) / Vista inc SP1 (excl. Starter Edition) / 7 (excl. Starter Edition)
OS X v10.6-10.7

Browsing & Printing

ImageBrowser EX

Image Processing

Digital Photo Professional

Other

PhotoStitch, EOS Utility (inc. Remote Capture, WFT utility*), Picture Style Editor
* Requires optional accessory

Batteries

Rechargeable Li-ion Battery LP-E6 (supplied), 1xCR1616 for date & settings

Battery Life

Approx. 950 (at 23°C, AE 50%, FE 50%)¹
Approx. 850 (at 0°C, AE 50%, FE 50%)

Battery Indicator

6 levels + percentage

Power Saving

Power turns off after 1, 2, 4, 8, 15 or 30mins.

Power Supply & Battery Chargers

AC Adapter Kit ACK-E6, Battery charger LC-E6, Car Battery charger CBC-E6

Body Materials

Magnesium Alloy body covers

Operating Environment

0 – 40 °C, 85% or less humidity

Dimensions (WxHxD)

152 x 116.4 x 76.4mm

Weight (Body Only)

Approx. 950

Viewfinder

Eyecup Eg, Eg-series Dioptric Adjustment Lens with Rubber Frame Eg, Anti Fog Eyepiece Eg, Angle Finder C

Wireless File Transmitter

Wireless File Transmitter WFT-E7

Lenses

All EF lenses (excludes EF-S lenses)

Flash

Canon Speedlites (220EX, 270EX, 270EX II, 320EX, 420EX, 430EX, 430EX II, 550EX, 580EX, 580EX II, 600EX, 600EX-RT, Macro-Ring-Lite, MR-14EX, Macro Twin Lite MT-24EX, Speedlite Transmitter ST-E2, Speedlite Transmitter ST-E3-RT)

Remote Controller/ Switch

Remote control with N3 type contact, Wireless Controller LC-5, Remote Controller RC-6

Other

Hand Strap E2, GP-E2

Magnification

¹ with 50mm lens at infinity, -1m-1 dpt

Continuous Shooting

¹ Based on Canon's testing conditions, JPEG, ISO 100, Standard Picture Style. Varies depending on the subject, memory card brand and capacity, image recording quality, ISO speed, drive mode, Picture Style, Custom functions etc.
² Maximum fps and buffer capacity may be reduced depending on the cameras settings and light level

Water/ Dust Resistance

¹ Environmental protection

Battery Life

¹ Based on the CIPA Standard and using the batteries and memory card format supplied with the camera, except where indicated
