| Sampling Frequency |
48k / 96k Hz |
| Quantization Bit Rate |
16 / 24 bit
* Fs & Bitrate are synchronized with the settings of the connected camera |
| Number of channels |
2 channels |
| MIC inputs (Balanced) |
|

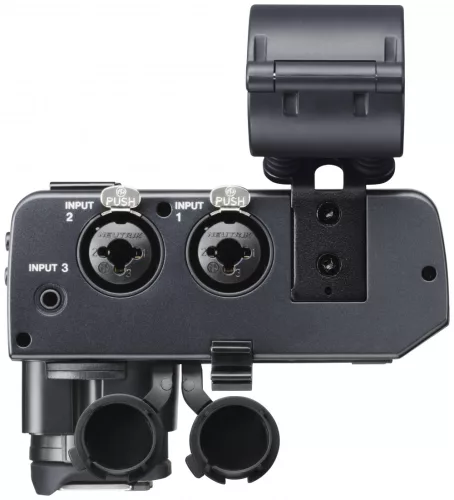

| INPUT 1/2 Jacks |
|
| Connectors |
XLR-3-31 equivalent (1:GND, 2:HOT, 3:COLD)
6.3mm(1/4") standard TRS jacks Input (Tip:HOT, Ring:COLD, Sleeve:GND)
* Phantom power supported by XLR only |
| MIC IN |
input switch set to "MIC" |
| Input Impedance |
2kΩ or higher |
| Maximum Input Level |
+6dBu (ATT setting "46dB") *1 |
| Minimum input level |
-60dBu (ATT setting "0dB") *1 |
| Gain range |
66dB |
| LINE IN |
input switch set to "LINE" |
| Input Impedance |
10kΩ or higher |
| Maximum Input Level |
+24dBu *1 |
| Rated input level |
+4dBu *1 |
| Gain range |
66dB |
| MIC inputs (Unbalanced) |
|
| INPUT 3 Jack |
|
| Connector |
3.5mm(1/8") Stereo mini jack
* Support plug-in power |
| Input Impedance |
2kΩ or higher |
| Maximum Input Level |
+6dBV (ATT setting "46dB") *2 |
| Minimum input level |
-60dBV (ATT setting "0dB") *2 |
| Gain range |
66dB |
| Plug-in power |
2.7V |
| PHONE / CAMERA output (Unbalanced) |
|

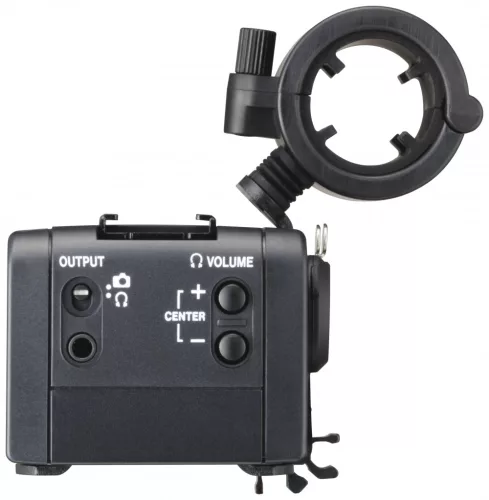

| OUTPUT Jack |
|
| Connector |
3.5mm(1/8") Stereo mini jack |
| Output level |
0.29Vrms (Fixed,OUTPUT setting "CAMERA")
0.5Vrms (Output volume setting at maximum、OUTPUT "HEADPHONE") |
| Headphone working impedance |
16 to 250Ω |
| Power |
2 AA batteries (alkaline, NiMH or lithium-ion)
Supplied through accessory shoe of compatible camera |
| Power consumption |
2.0W (maximum) |
| Dimensions |
88.2(W) × 119.1(H) × 110.0(D)mm (not including protrusions) |
| Weight |
|

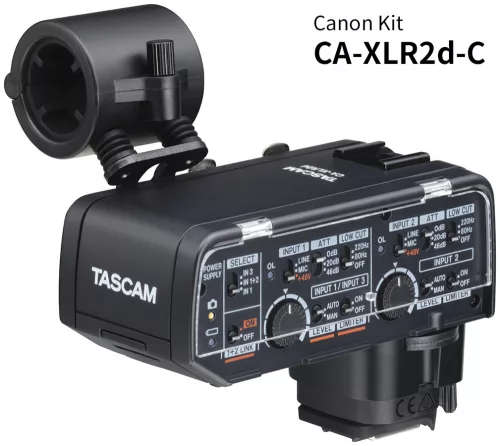

| CA-XLR2d-C |
341g (mic holder attached, battery holder not attached) |
| CA-XLR2d-F |
331g (mic holder attached, battery holder not attached) |
| CA-XLR2d-AN |
357g (not including batteries, mic holder attached, battery holder attached) |
| Operating temperature |
0 to 40°C (32 to 104°F) |
| Included |
|
| CA-XLR2d-C |
Mic holder (attached to unit, Battery holder, 3.5mm(1/8") stereo mini cable, TASCAM ID registration guide, Quick Guide (including warranty), CA-AK1-C accessory shoe mount adapter (attached to unit), CA-AK1-AN cold shoe mount adapter |
| CA-XLR2d-F |
Mic holder (attached to unit, Battery holder, 3.5mm(1/8") stereo mini cable, TASCAM ID registration guide, Quick Guide (including warranty), CA-AK1-F accessory shoe mount adapter (attached to unit), CA-AK1-AN cold shoe mount adapter |
| CA-XLR2d-AN |
Mic holder (attached to unit, Battery holder, 3.5mm(1/8") stereo mini cable, TASCAM ID registration guide, Quick Guide (including warranty), CA-AK1-AN cold shoe mount adapter(attached to unit) |
