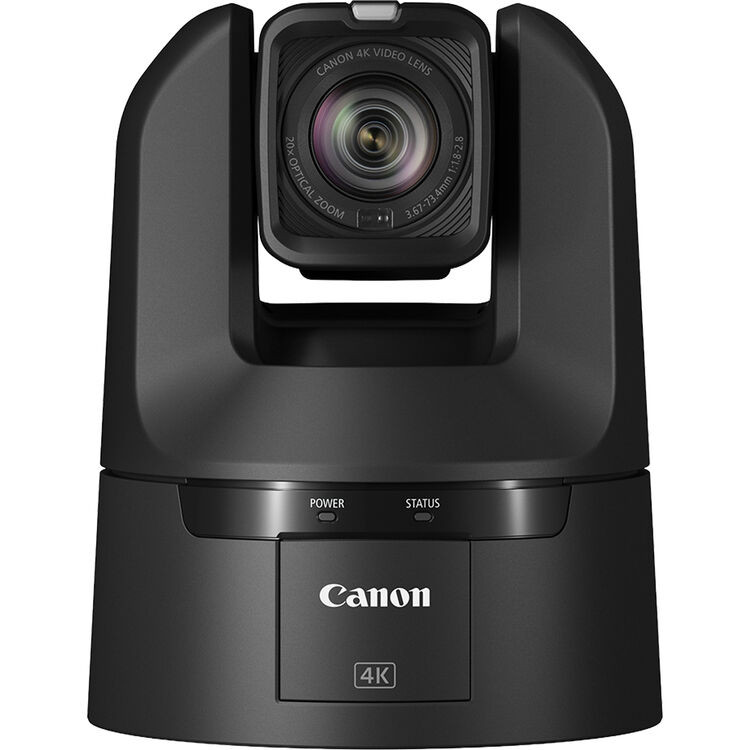

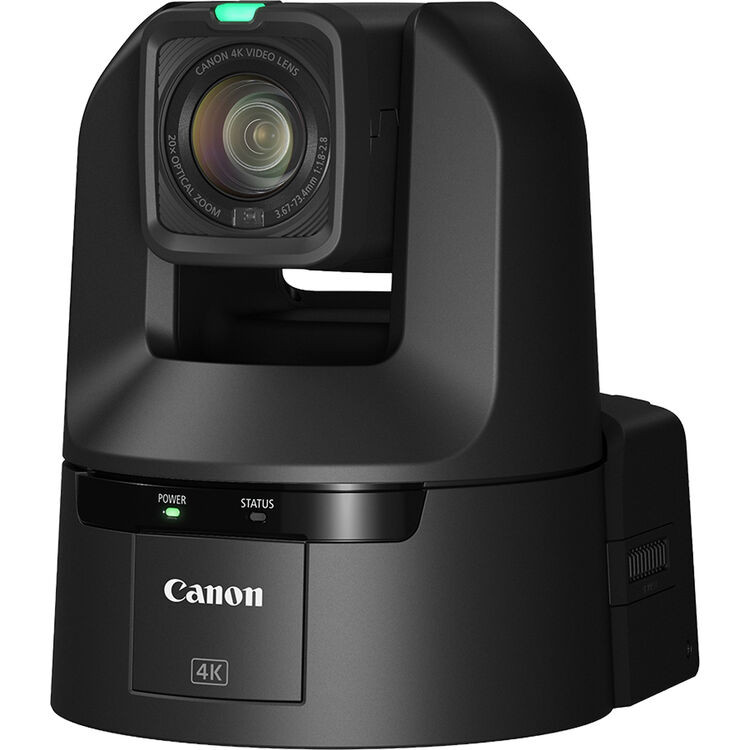

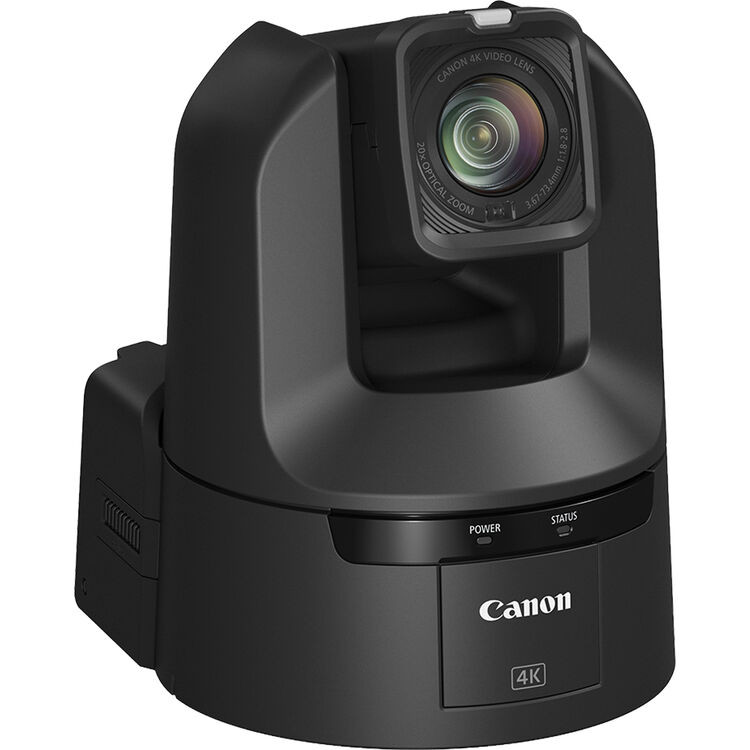

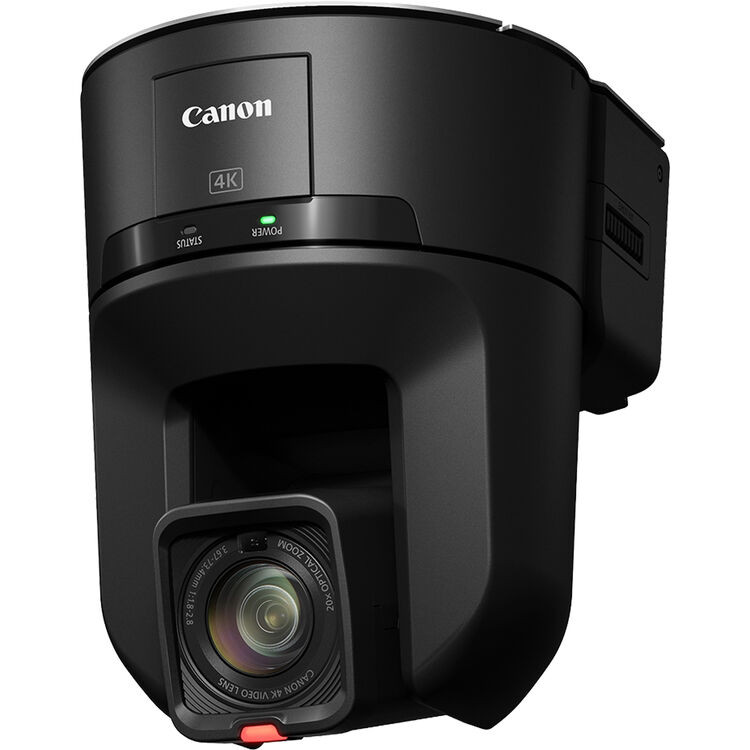

Name: Canon CR-N400 PTZ camera (4K) (12G-SDI) (NDI) (20x zoom) (satin black) (7505C005)
SKU: 7505C005-4549292257502
Price: 2658900 HUF
Availability: InStock

NEW

Canon CR-N400 PTZ camera (4K) (12G-SDI) (NDI) (20x zoom) (satin black) (7505C005)

Item number:

7505C005-4549292257502

Canon CR-N400 PTZ camera (4K) (12G-SDI) (NDI) (20x zoom) (satin black) (7505C005)

NEW

Canon CR-N400 PTZ camera (4K) (12G-SDI) (NDI) (20x zoom) (satin black) (7505C005)

Item number:

7505C005-4549292257502

Canon CR-N400 PTZ camera (4K) (12G-SDI) (NDI) (20x zoom)

A CR-N400 egy műsorszolgáltatóknak szánt PTZ kamera, amely széles képminőségi beállítási lehetőségeket kínál, beleértve a HDR-t és a 40x-es fejlett zoomot Full HD felbontásban (20x-os optikai zoom 4K felbontásban), valamint professzionális kezelőfelületet a legújabb DIGIC DV7 processzornak köszönhetően.

A doboz tartalma

Canon CR-N400 PTZ camera
Mennyezeti lemez
Mennyezeti lemez rögzítőcsavarja
Biztonsági huzal
Biztonsági huzal a kamera és a tartó között
Hálózati adapter
Hálózati kábel (EU/OTH)
Távirányító
Akkumulátor

** Gyártó **:

Canon

** Supported brand **:

PTZ camera,

Available to order

2 093 622 HUF+TAX=2 658 900 HUF

Points earned after purchase: 26 589 HUF

Details

CAMERA
Image Sensor		Type 1/2.3 (1/2.3 in.) single-plate CMOS sensor
Effective Pixels		approx. 8.29 megapixels (3840 x 2160 at 23.98 / 25 / 29.97Hz) approx. 7.88 megapixels (3744 x 2104 at 50 / 59.94Hz)

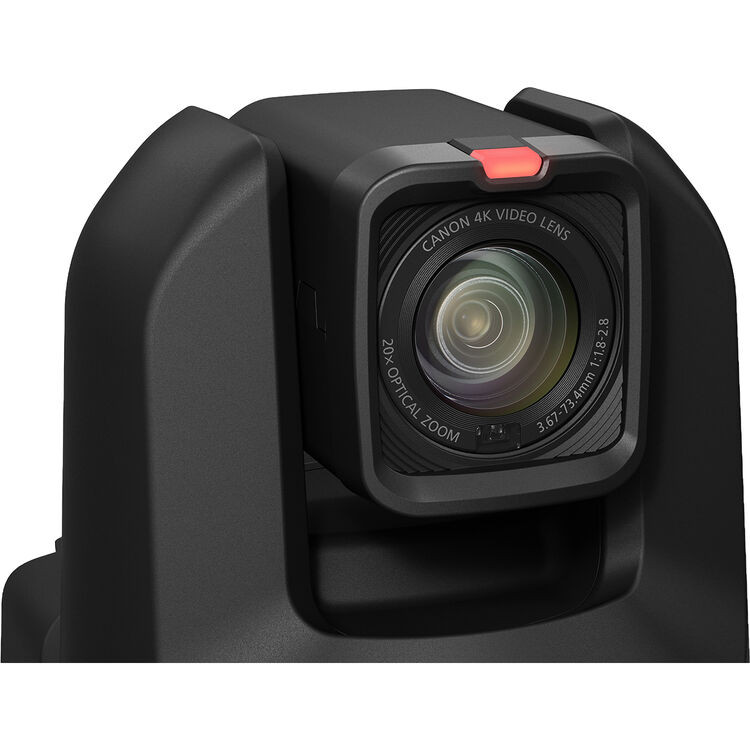

Lens		f=3.67 – 73.4 mm, F/1.8 – 2.8, 20x optical zoom, 8-bladed iris diaphragm
Optical zoom		20x optical zoom (40x with advanced zoom)
Digital zoom		20x digital zoom
Focal Length		3.67 – 73.4 mm, f/1.8 – 2.8, 35mm equivalent focal length: Approx. 30.0 (W) - 616 mm (T) (50 / 59.94Hz) Approx. 29.3 (W) - 601 mm (T) (23.98 / 25 / 29.97Hz)
Angle of View		59.94/50.00 Hz frame frequency: Horizontal: 63.3° (W) – 3.5° (T) Vertical: 38.9° (W) – 2.0° (T) 29.97/25.00/23.98 Hz frame frequency: Horizontal: 65.6° (W) – 3.6° (T) Vertical: 39.8° (W) – 2.0° (T)
Minimum Subject Illumination		・59.94/29.97 Hz frame frequency: -Approx. 3 lux (with 1/60 sec. shutter speed, 59.94P frame rate, and 30.0 dB gain) -Approx. 1.5 lux (with 1/30 sec. shutter speed, 59.94P frame rate, and 30.0 dB gain) ・50.00/25.00 Hz frame frequency: -Approx. 2.5 lux (with 1/50 sec. shutter speed, 50.00P frame rate, and 30.0 dB gain) -Approx. 1.3 lux (with 1/25 sec. shutter speed, 50.00P frame rate, and 30.0 dB gain)
Shutter Speed		1/3 – 1/2000 sec. (specific values depend on the frame frequency and frame rate)
Iris		Manual/Automatic aperture
Gain		0.0 dB – 36 dB
ND Filter		Built-in (Off, 1/2, 1/4, 1/8), motor operated
Night Mode (IR Cut Filter Off)		No
Optical Low-Pass Filter		No
White Balance		AUTO (AWB), Set A, Set B, preset settings (daylight: 5,600 K, tungsten lamp: 3,200 K), color temperature setting (2,000 K – 15,000 K), Manual
Focus		Focus mode: Manual, Continuous AF, Face / Eye AF, Tracking AF type: Hybrid AF, Contrast AF
Minimum focusing distance		1 cm at wide end, 60 cm across entire zooming range
Gamma		BT.709 Wide DR, BT.709 Standard, Canon Log 3, Canon 709, PQ, HLG
Pan and Tilt		Pan operation range: Horizontal ±170° Pan operation speed: 0.1° – 100°/sec. (Maximum speed at preset: 200.00°/sec.) Tilt operation range: Vertical -30° – +100° Tilt operation speed: 0.1° – 100°/sec. (Maximum speed at preset: 180.00°/sec.)

SERVER
Video Output Format	SDI	[12G-SDI] / 4:2:2 10-bit 3840 x 2160: 59.94P, 50.00P, 29.97P, 25.00P, 23.98P 1920 x 1080: 59.94P/59.94i, 50.00P/50.00i/25.00P, 29.97P/23.98P, 29.97PsF/25.00PsF 1280 x 720: 59.94P, 50.00P 720 x 576: 50.00i 720 x 480: 59.94i [3G-SDI] / 4:2:2 10-bit 1920 x 1080: 59.94P/59.94i, 50.00P/50.00i/25.00P, 29.97P/23.98P, 29.97PsF/25.00PsF 1280 x 720: 59.94P, 50.00P 720 x 576: 50.00i 720 x 480: 59.94i
	HDMI	[HDMI] / 4:2:2 10-bit 3840 x 2160: 59.94P, 50.00P, 29.97P, 25.00P, 23.98P 1920 x 1080: 59.94P/59.94i, 50.00P/50.00i/25.00P, 29.97P/23.98P, 29.97PsF/25.00PsF 1280 x 720: 59.94P, 50.00P 720 x 576: 50.00i 720 x 480: 59.94i

	IP	[Frame frequency 59.94 Hz] 3840 x 2160, 1920 x 1080, 1280 x 720, 640 x 360: 59.94 fps, 29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8 bit) [Frame frequency 29.97 Hz] 3840 x 2160, 1920 x 1080, 1280 x 720, 640 x 360: 29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8 bit) [Frame frequency 50.00 Hz] 3840 x 2160, 1920 x 1080, 1280 x 720, 640 x 360: 50.00 fps, 25.00 fps, 12.50 fps, 5.00 fps (4:2:0 8 bit) [Frame frequency 25.00 Hz] 3840 x 2160, 1920 x 1080, 1280 x 720, 640 x 360: 25.00 fps, 12.50 fps, 5.00 fps (4:2:0 8 bit) [Frame frequency 23.98 Hz] 3840 x 2160, 1920 x 1080, 1280 x 720, 640 x 360: 23.98 fps, 11.99 fps, 5.99 fps (4:2:0 8 bit) *59.94 fps/50.00 fps is only when H.265. – JPEG has one pattern fixed depending on the frame frequency (format is fixed and cannot be selected) Resolution: 1280 x 720 59.94/29.97 Hz: 14.99 fps, 50.00/25.00 Hz: 12.50 fps, 23.98 Hz: 11.99 fps
	USB	Motion JPEG: 1920 x 1080 59.94 Hz: 30.00 fps, 15.00 fps, 5.00 fps 50.00 Hz: 25.00 fps, 12.50 fps, 5.00 fps 1280 x 720 59.94 Hz: 30.00 fps, 15.00 fps, 5.00 fps 50.00 Hz: 25.00 fps, 12.50 fps, 5.00 fps 640 x 360 59.94 Hz: 30.00 fps, 15.00 fps, 5.00 fps 50.00 Hz: 25.00 fps, 12.50 fps, 5.00 fps YUV: 640 x 360 59.94 Hz: 30.00 fps, 15.00 fps, 5.00 fps 50.00 Hz: 25.00 fps, 12.50 fps, 5.00 fps
Protocol		Canon XC, RTSP/RTP, NDI\|HX, RTMP/RTMPS, Standard Communication (Serial), Standard Communication (IP), SRT, FreeD
Preset		Number of presets: Max. 100 (including home position)

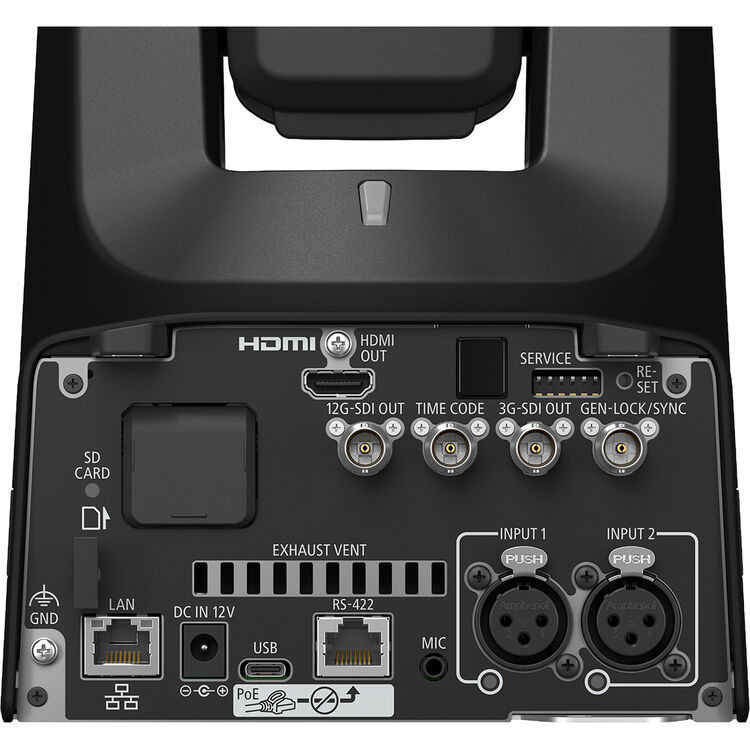

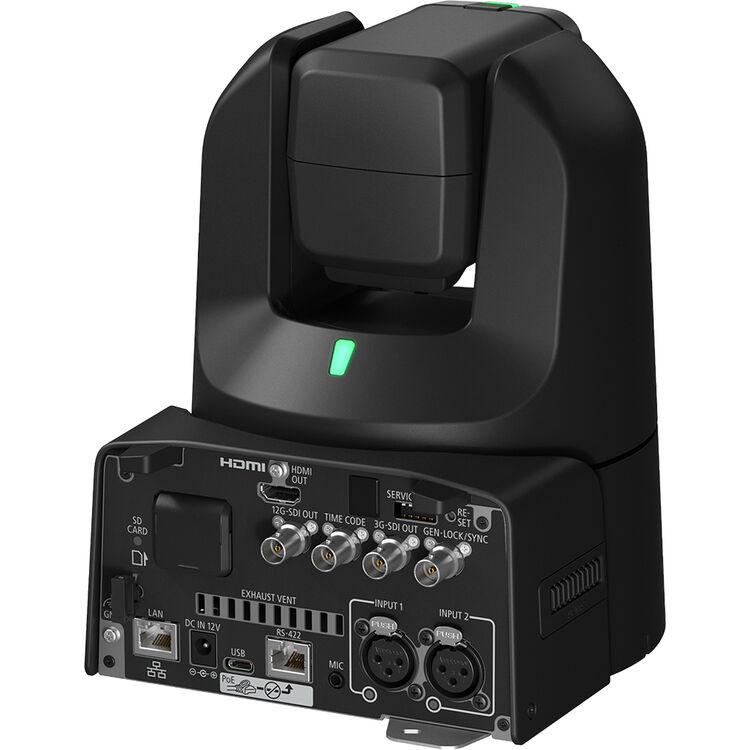

INTERFACE
Communication Control		LAN, Wi-Fi, Serial, IR
Network Terminal		LAN x 1, RJ45, 1000Base-T
12G-SDI OUT Terminal		BNC jack (output only) x 1, 0.8 Vp-p/75 Ω, SMPTE ST 2082, 2081, 424, 425, 292, 259, 299, 272 compliant Embedded audio, Time code (VITC/LTC)
6G-SDI OUT Terminal		No
3G-SDI OUT Terminal		BNC jack (output only) x 1, 0.8 Vp-p/75 Ω, unbalanced SMPTE 424, SMPTE 425, SMPTE ST 299-2 compliant Embedded audio, Time code (VITC/LTC)
GEN-LOCK Terminal		BNC jack (also serves as the SYNC OUT terminal)
TIME CODE Terminal		BNC jack (for both input/output)
HDMI OUT Terminal		HDMI connector (Type A), both video and audio are output only
RS-422 Terminal		RJ45 connector x 1
AUDIO INPUT 1/INPUT 2 Terminals		XLR 3-pin jack (balanced) ((1) shield, (2) hot, (3) cold), two lines Sensitivity (MIC): -60 dBu (manual volume center, -18 dB full scale) Sensitivity (LINE): +4 dBu (manual volume center, -18 dB full scale) Supply Voltage: 48 V DC (bias resistance: 6.8 kΩ)
MIC Terminal		ϕ 3.5 mm stereo mini-jack (unbalanced; supports plug-in power) Sensitivity (MIC): -72 dBu (manual volume center, -18 dB full scale) Sensitivity (LINE): -12 dBV (manual volume center, -18 dB full scale) Supply Voltage: 2.4 V DC (bias resistance: 2.2 kΩ)
USB Terminal		Type-C (USB 3.0) x 1

OTHERS
Operating Environment	Temperature 0°C – +40°C (+32°F – +104°F) Humidity 10% – 90% (without condensation)
Power Supply	PoE: PoE++ power supply via LAN connector (IEEE802.3bt compliant) – PoE and PoE+ cannot be used External power source: 12 V DC (using included AC adaptor)
Power Consumption	PoE++ Input: Approx. 34.4 W/0.8 A max. (body only) DC Input: Approx. 33.8 W/2.9 A max. (body only) Class 5 (40.0 W required) for power supply devices
Dimensions (W x H x D)	Approx. 176 x 220 x 194 mm (excluding protrusions)
Weight	Approx. 3.1 kg (6.8 lb.) (body only)
Noise	NC35 or less

Data

Szín "szöveggel":

satin black

Cikkszám #1:

7505C005

EAN:

4549292257502
