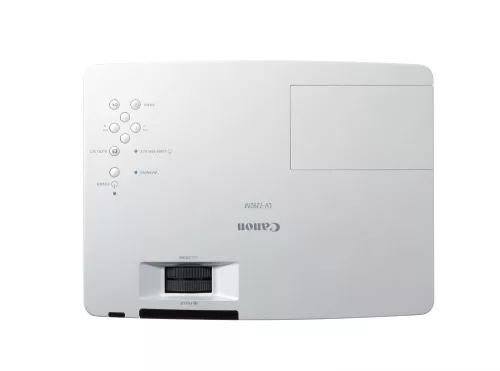

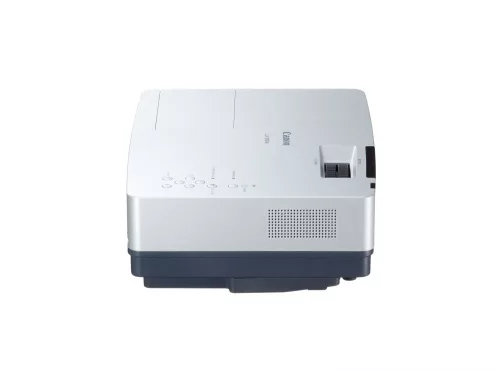

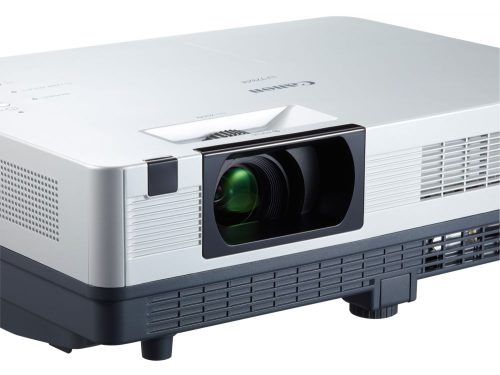

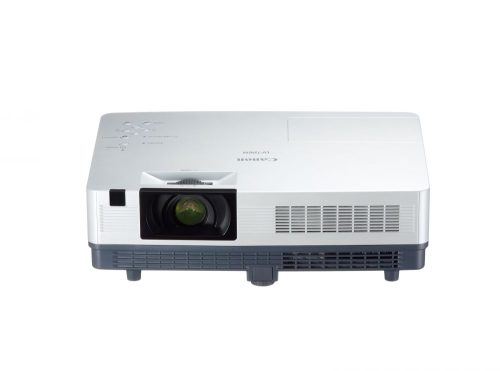

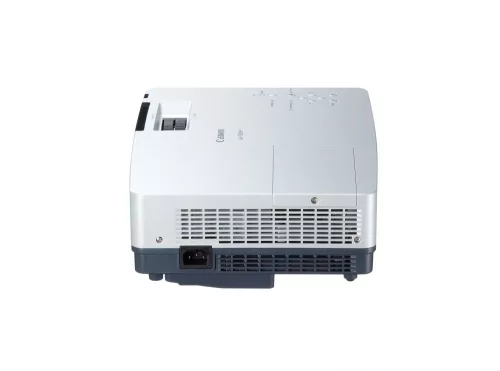

With built in audio, the XGA LV-7292M is a great performer in or out of the office.
Crisp, bright projection
Native XGA resolution (1024 x 768 pixels) and 2,200 lumens brightness make the LV-7292M, part of the Middle Portable series, ideal for projecting clear images, in the office or on the move. A 500:1 contrast ratio enables the LV-7292M to faithfully capture detail and display vivid colours. Canon’s 1.2x zoom projection lens also ensures superb image quality, in virtually any environment.
Automated operation
Even inexperienced users will find it easy to operate the LV-7292M, thanks to a range of automatic features. These include the Auto Input Search function that automatically captures input signals and Auto Keystone Correction, which compensates for any projector tilt.
Powerful digital connections
First choice for high quality digital projections in small spaces, the LV-7292M supports HDMI™, which makes it possible to connect PCs, DVD players and the like. With compact 1W speakers built-in to provide sound, it is a complete projection system. Alternatively, the line out can be used to connect to an external audio system.
Pre-set Image Modes
It is simple to optimise the projector for your current environment, using one of the pre-set quality mode buttons. These automatically adjust settings for projecting in bright light, as well as displaying images on blackboards (green), or coloured walls. Manual changes to contrast, hue and brightness can also be saved to memory for future use. In addition, the LV-7292M automatically adjusts the aspect ratio to suit the projected image.
Less maintenance, lower costs
A long-life lamp (up to 6,000 hours in Eco Mode) and air filter (which lasts about 5,500 hours) extends the time between maintenance periods and reduces costs. Power consumption is low in standby (under 1W) and there’s little distracting noise during projections as the projector runs quietly at just 29dBA in Eco Mode.
Control and management
The serial control port enables remote management of the projector, including switching the projector on or off, changing settings, and monitoring lamp usage. It’s also ideal for integrating with room control systems.
Error-free presentations
Unauthorised use is prevented by password protection. A Control Panel Key Lock offers peace of mind by stopping errors caused by accidentally pressing the wrong button.
Product Specification
|
PANEL
|
Type
|
Transmissive LCD, Poly-silicon TFT Active Matrix
|
Size and Number
|
0.55” diagonal, 3 panels
|
Aspect Ratio
|
4:3
|
Native Resolution
|
1024 x 768 (XGA), 786432 pixels
|
|
|
OPTICS
|
Lamp Type
|
215W NSHA
|
Lens F Number and Focal Length
|
F2.0 – F2.15; f=18.38 – 22.06mm
|
Zoom Magnification and Control
|
1.2x Manual
|
Focus Control
|
Manual
|
Lens Shift
|
6 : 1 (fixed)
|
|
|
IMAGE AND AUDIO
|
Brightness
|
2200 lumens
|
Brightness Uniformity
|
85%
|
Contrast Ratio
|
500:1
|
Projection Distance Coverage
|
1.3m – 11.8m (3.3m – 3.9m for 100” image)
|
Screen Size
|
40” - 300” (813 x 610mm – 6096 x 4572mm)
|
Digital Zoom Magnification
|
0.5x – 4x
|
Keystone Correction Range
|
Vertical: Manual +/- 30° ; Auto +/- 20°
|
Digital RGB Compatibility
|
(WUXGA/UXGA/WXGA/SXGA+/SXGA) / XGA / SVGA / VGA
|
Analogue RGB Compatibility
|
(WUXGA/UXGA/WXGA/SXGA+/SXGA) / XGA / SVGA / VGA / MAC
|
Digital Video Scan Systems
|
1080p / 1080i / 720p / 575p / 480p
|
Component Video Scan Systems
|
1080i / 1035i / 720p / 575p / 575i / 480p / 480i
|
Video / S-Video Colour Systems
|
PAL / PAL-M / PAL-N / NTSC / NTSC4.43 / SECAM
|
Display Modes
|
Presentation, Standard, High Contrast, Cinema, Blackboard (green), Colour board (red, blue, yellow, green), User 1 – 4
|
Image Enhancement
|
-
|
Built-in Speaker
|
1.0W RMS, Monaural
|
|
|
PORTS AND CONNECTORS
|
Digital Video and Audio Input
|
HDMI™ V1.3 (with Deep Colour)
|
Analogue RGB Input 1
|
Mini D-Sub 15-pin (Component Video via optional cable / S-Video via optional cable / SCART-RGB via optional cable)
|
Analogue RGB Input 2
|
-
|
Analogue RGB Output
|
-
|
S-Video Input
|
Mini D-Sub 15-pin (Shared with RGB input 1, via optional cable)
|
Composite Video Input
|
RCA x1
|
Audio Input 1
|
3.5mm stereo mini-jack (input for RGB 1 / Microphone)
|
Audio Input 2
|
RCA x2 (L/R) (input for Composite Video)
|
Audio Input 3
|
-
|
Audio Output
|
3.5mm stereo mini-jack (variable level)
|
Service Port / Projector Control
|
Mini D-Sub 9-pin (RS-232c)
|
Network Port
|
-
|
|
|
MECHANISMS
|
Front Elevation Mechanism
|
1x Mechanical foot, 10° maximum image elevation
|
Rear Adjustment Mechanism
|
-
|
|
|
RATINGS
|
Dimensions (W x H x D)
|
334mm x 101mm x 247mm
|
Weight
|
2.9 kg
|
Power Source
|
100V - 240V AC, 50/60Hz
|
Power Consumption
|
Lamp Mode – High / Normal / Eco: 245 W / 220 W / 177 W Standby: 0.5 W
|
Noise Level
|
Lamp Mode - High / Normal / Eco: 36.4dBA / 34.4dBA / 29dBA /
|
Operating Environment
|
+5°C to +35°C
|
Storage Environment
|
-10°C to +60°C
|
Warranty
|
3 years
|
|
|
