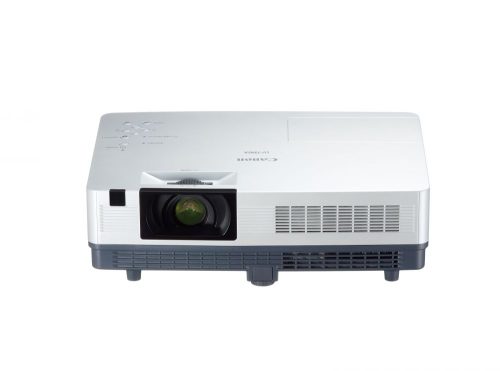

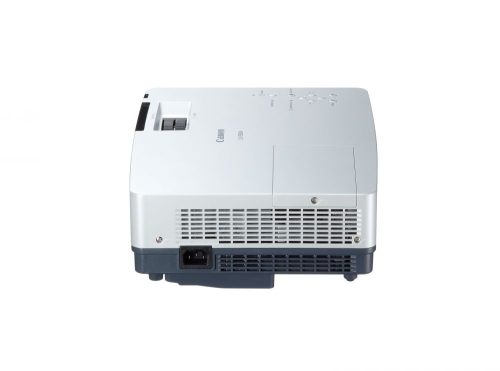

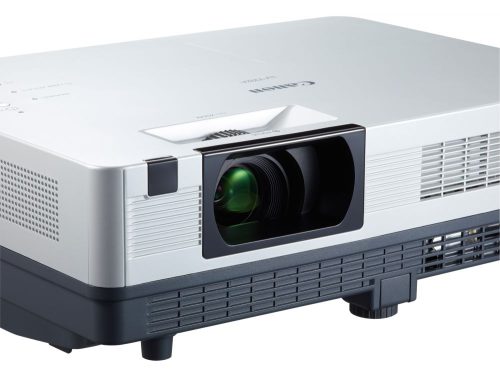

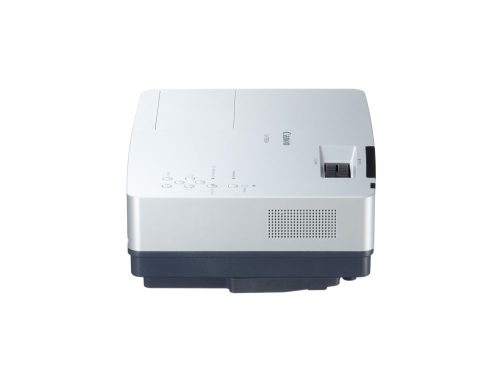

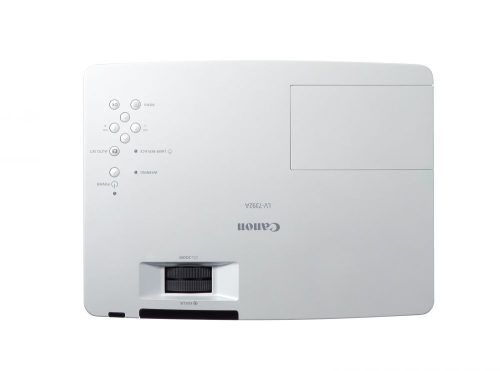

3000 lumens make the LV-7392A ideal for larger education spaces like lecture halls.
Advanced brightness
Native XGA resolution ensures crisp detailed images and with 3000 lumens brightness, the LV-7392A Advance Portable projector is ideal for use in well-lit spaces, such as the classroom or laboratory.
Superb image quality
The high 2000:1 contrast ratio and Auto Iris, which automatically adjusts to changing light conditions, ensures vivid image quality, with deep blacks and rich colours, no matter the environment. Canon’s 1.2x zoom projection lens delivers great results, wherever you need.
Simple to operate
For true portability, the LV-7392A includes a range of automatic features that make setting up the projector easy, even for the first-time user. Simply plug-in the input source and Auto Input Search will automatically identify the signal and adjust the settings. Auto Keystone Correction will also detect any projector tilt and correct image distortion.
Flexible connections
Built-in audio enables sound to be played through the powerful internal 10W speaker. Alternatively, you can connect to external speakers, if available, using the line-out connection. A microphone connection lets speakers add a commentary during presentations or while projecting videos, even where there is no audio equipment. HDMI™ input makes it possible to project high quality images from digital sources.
Easy maintenance and reduced costs
A long-life lamp of about 6,000 hours (in Eco Mode), together with the 3-layer long-life air filter, which lasts about 5,500 hours, greatly reduces maintenance time involved – as well as making better use of resources. In standby the projector’s power consumption is just under 1W and it also runs quietly in Eco Mode, at just 29dBA, to minimise noise during presentations.
Expanding ease-of-use
The projector can be controlled and managed through the RJ-45 network port. This lets you switch the projector on or off, change settings and also monitor lamp usage and status, remotely. Ideal for integrating into room control systems and connecting to the corporate LAN, the projector also supports PJLINK™.
Reliable security
For peace of mind, password protection prevents unauthorised use of the projector, while the Control Panel Key Lock enables trouble free operation by locking buttons so they can’t be accidentally pressed during the presentation.
Product Specification
|
PANEL
|
Type
|
Transmissive LCD, Poly-silicon TFT Active Matrix
|
Size and Number
|
0.63” diagonal, 3 panels
|
Aspect Ratio
|
4:3
|
Native Resolution
|
1024 x 768 (XGA), 786432 pixels
|
|
|
OPTICS
|
Lamp Type
|
215W NSHA
|
Lens F Number and Focal Length
|
F2.00 – F2.15; f=18.38 – 22.06mm
|
Zoom Magnification and Control
|
1.2x Manual
|
Focus Control
|
Manual
|
Lens Shift
|
6 : 1 (fixed)
|
|
|
IMAGE AND AUDIO
|
Brightness
|
3000 lumens
|
Brightness Uniformity
|
85%
|
Contrast Ratio
|
2000:1 (Auto Iris enabled & lamp dimmer function)
|
Projection Distance Coverage
|
1.1m – 10.5m (2.9m – 3.5m for 100” image)
|
Screen Size
|
40” - 300” (813 x 610mm – 6096mm x 4572mm)
|
Digital Zoom Magnification
|
0.5x – 4x
|
Keystone Correction Range
|
Vertical: Manual +/- 30° ; Auto +/- 20°
|
Digital RGB Compatibility
|
(WUXGA/UXGA/WXGA/SXGA+/SXGA) / XGA / SVGA / VGA
|
Analogue RGB Compatibility
|
(WUXGA/UXGA/WXGA/SXGA+/SXGA) / XGA / SVGA / VGA / MAC
|
Digital Video Scan Systems
|
1080p / 1080i / 720p / 575p / 480p
|
Component Video Scan Systems
|
1080i / 1035i / 720p / 575p / 575i / 480p / 480i
|
Video / S-Video Colour Systems
|
PAL / PAL-M / PAL-N / NTSC / NTSC4.43 / SECAM
|
Display Modes
|
Presentation, Standard, High Contrast, Cinema, Blackboard (green), Colour board (red, blue, yellow, green), User 1 – 4
|
Image Enhancement
|
-
|
Built-in Speaker
|
10.0W RMS, Monaural
|
|
|
PORTS AND CONNECTORS
|
Digital Video and Audio Input
|
HDMI™ V1.3 (with Deep Colour)
|
Analogue RGB Input 1
|
Mini D-Sub 15-pin (Component Video via optional cable / S- Video via optional cable / SCART-RGB via optional cable)
|
Analogue RGB Input 2
|
-
|
Analogue RGB Output
|
-
|
S-Video Input
|
Mini D-Sub 15-pin (Shared with RGB input 1, via optional cable)
|
Composite Video Input
|
RCA x1
|
Audio Input 1
|
3.5mm stereo mini-jack (input for RGB 1 / Microphone)
|
Audio Input 2
|
RCA x2 (L/R) (input for Composite Video)
|
Audio Input 3
|
-
|
Audio Output
|
3.5mm stereo mini-jack (variable level)
|
Service Port / Projector Control
|
Mini D-Sub 9-pin (RS-232c)
|
Network Port
|
RJ-45
|
|
|
MECHANISMS
|
Front Elevation Mechanism
|
1x Mechanical foot, 10° maximum image elevation
|
Rear Adjustment Mechanism
|
-
|
|
|
RATINGS
|
Dimensions (W x H x D)
|
334mm x 101mm x 247mm
|
Weight
|
3.0kg
|
Power Source
|
100V - 240V AC, 50/60Hz
|
Power Consumption
|
Lamp Mode - High / Normal / Eco: 271W / 252W / 187W Standby: 8.5W / Standby (LAN off): 0.7W
|
Noise Level
|
Lamp Mode – High / Normal / Eco: 36.4dBA / 34.4dBA / 29.0dBA
|
Operating Environment
|
+5°C to +35°C
|
Storage Environment
|
-10°C to +60°C
|
Warranty
|
3 years
|
|
|
