Ultra-Short Throw WXGA networkable projector, with built-in speaker and 3D ready.
Ultimate short-focus projector
The LV-8235 UST offers large screen projection, even where space is limited. Compactly designed, it can show an 80-inch image from a projection distance of just 32cm (with just 2.4cm installation distance). Featuring native WXGA resolution (1280x800) and a 16:10 wide-aspect ratio, it is ideal for use with today’s widescreen notebook computers. Presenters can avoid being dazzled and shadows will not be cast on the projected image, which makes it perfect for use in classrooms and corporate meeting rooms.
High quality imaging, flexibly delivered

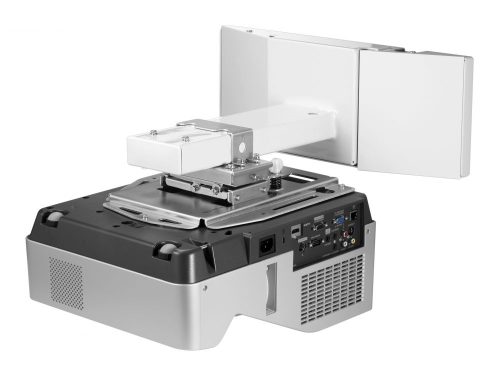

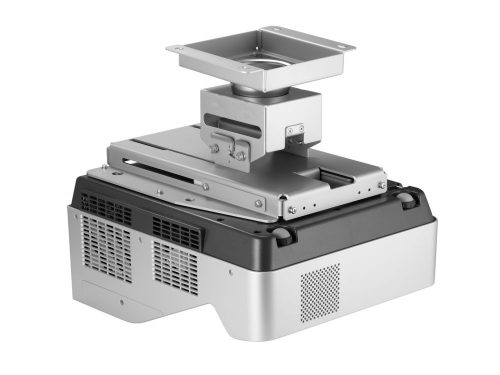

A wonderfully versatile performer, its 2,500 lumens ensure bright, clear images, while the impressive 2000:1 contrast ratio delivers deep blacks. Flexible installation means it has a wide range of applications in classrooms, offices and commercial spaces. It can be installed on the ceiling or desktop for the typical wall projection used for lessons or meetings. Rear projection is ideal for video promotions in shop windows, restaurants, museums and the like, while under desk projection can turn tabletops or floors into useful display screens.
Brilliant 3D in close-up
The ultra short-focus technology of the LV-8235 UST means it can project large screen 3D in confined spaces. Advanced imaging technology makes it possible to reproduce natural colours even when projecting onto a blackboard or coloured wall. The result is incredible presentations for visitors to education and commercial centres, events or product displays. The LV-8235 UST uses the Frame Sequential Display Method, which switches at high speed between the images for left and right eye, and requires active shutter type glasses to be viewed in full 3D.
Exceptional sound and vision
A built-in 10W speaker ensures a richer experience, enhancing presentations with vibrant sound, even in locations where there is no available sound system. The LV-8235 UST can also project clear images from digital sources using the HDMI input.
Easy, economical maintenance
With a long-life lamp of up to 3,000 hours (in Eco Mode) and a long-life air filter of up to 4,000 hours (in Eco mode), the LV-8235 UST is very economical to run and maintenance is simplified. A built-in RJ-45 network port also lets you monitor and control the projector remotely.
Product Specification
|
PANEL
|
Type
|
DLP™ chip
|
Size and Number
|
0.65” diagonal, Single chip
|
Aspect Ratio
|
16:10
|
Native Resolution
|
1280 x 800 (WXGA), 1024000 pixels
|
|
|
OPTICS
|
Lamp Type
|
275W NSHA
|
Lens F Number and Focal Length
|
F2.5; f=4.83mm
|
Zoom Magnification and Control
|
1.0x Fixed
|
Focus Control
|
Manual
|
|
|
IMAGE AND AUDIO
|
Brightness
|
2500 lumens
|
Brightness Uniformity
|
78%
|
Contrast Ratio
|
2000:1
|
Projection Distance Coverage
|
23.0cm - 45.5cm (32cm for 80 inch image)
|
Screen Size
|
60” - 110” (1.29m x 0.81m - 2.37m x 1.48m)
|
Digital Zoom Magnification
|
0.5x - 2x
|
Keystone Correction Range
|
Vertical: Manual +/- 5°
|
Digital RGB Compatibility
|
WSXGA+ / SXGA+ / WXGA / SXGA / XGA / SVGA / VGA
|
Analogue RGB Compatibility
|
(WUXGA / UXGA / WSXGA+ / SXGA+) / WXGA / SXGA / XGA / SVGA / VGA / MAC
|
Digital Video Scan Systems
|
1080p / 1080i / 720p / 576p / 480p
|
Component Video Scan Systems
|
1080i / 720p / 576p / 576i / 480p / 480i
|
Video / S-Video Colour Systems
|
PAL / PAL-M / PAL-N / NTSC / NTSC4.43 / SECAM
|
Scanning Frequency
|
Presentation, Standard, High Contrast, Cinema, Blackboard (Green), Colour board (Red, Blue, Yellow, Green), User 1 - 4
|
Display Modes
|
10–bit Colour Reproduction (1.07 billion colours)
|
Image Enhancement
|
10.0W RMS, Monaural
|
|
|

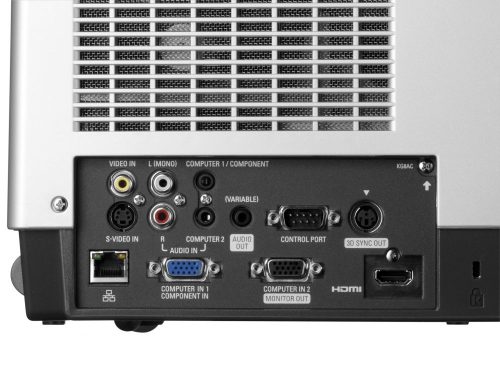

CONNECTORS
|
Digital RGB Input
|
Mini D-Sub 15-pin (Component Video via optional cable / SCART–RGB via optional cable)
|
Digital Video and Audio Input
|
Mini D-Sub 15-pin (shared with RGB output)
|
Analogue RGB Input 1
|
Mini D-Sub 15-pin (shared with RGB input 2)
|
nalogue RGB Input 2
|
Mini DIN 4-pin
|
Analogue RGB Output
|
RCA x1
|
S-Video Input
|
3.5mm stereo mini-jack (input for RGB 1)
|
Composite Video Input
|
3.5mm stereo mini-jack (input for RGB 2)
|
Audio Input 1
|
RCA x2 (L/R) (input for video)
|
Audio Input 2
|
3.5mm stereo mini-jack (variable level)
|
Audio Input 3
|
Mini D-Sub 9-pin (RS232c)
|
Audio Output
|
RJ-45
|
Service Port / Projector Control
|
Mini DIN 3-pin
|
|
|
RATINGS
|
Dimensions (W x H x D)
|
100-120 / 200-240 V AC, 50/60Hz
|
Weight
|
Modes - Normal: 375W / Eco: 305W Sleep: 11.5W / Standby: 0.85W
|
Power Source
|
Modes - Normal: 36dBA / Eco: 28dBA
|
Power Consumption
|
+5°C to +40°C
|
Noise Level
|
-10°C to +60°C
|
Operating Environment
|
3 years
|
|
|
