Rear LED (Charging) Red: Charging
Green: Charging completed
Green flashing: Booting device
Red/Green Looping : Charging Fault
Front LED (Status) White On : Device is On and Standby
White Flashing : Booting Device / Standby without
Bluetooth connection
White with breathing effect : Preparing Printing /
Firmware Updating
Red On : Device is too High Temperature
Red Flashing : Cover Opened / Printer Error / No
Paper / Paper Jam
Red/White Looping : Low Battery
Blue Flashing : non-Canon Smartsheet
Cyan On : Device is too Low Temperature
Cyan with breathing effect : Printer Head Cooling
Yellow/Magenta/Cyan/White Looping with
breathing effect : Processing Smartsheet /Printer is
Printing (Default Setting)
HARDWARE
Recommend Printing
Temperature (℃)
15 - 32°C (59 - 90°F)
Recommend Printing
Humidity (RH)
40-55% RH
Operating Temperature (℃) 5 - 40°C (41 - 104°F)
Operating Humidity (RH) <70% RH
Print Technology ZINK®
Printer Head Life 1000 pages (under 25°C)
Print Speed Approximately 50 second (Motor Start & Stop, at
room temperature 25°C)
Print Resolution 313 x 500 dpi
Borderless Printing YES
Supported Media Type Canon ZINK® Photo Paper, Canon ZINK® Pre-Cut
Sticker
Paper Size 2.0” x 3.0”
Paper Capacity Up to 10 sheets of Canon ZINK® photo paper + 1
SmartSheet®
Sensor YES (for Paper Detection/Paper Cover Detection)
Connectivity to External
Mobile Device
Bluetooth® 5.0
Mobile Application Canon Mini Print
Connector for Charging USB Type-C
Battery Built-in Rechargeable lithium polymer Battery,
500mAh (0V Charging Support)
Battery Life Average 20 photo papers (TBC)
Charging Speed Approximately 50 minutes (From 0% to fully charged)
Approximately 36 minutes (From 0% to 80%)
Approximately 20 minutes (From 0% to 50%)
Remark: Its fast charging speed requires the USB
Adaptors supports QC, PD or 5V@2.4A under
temperature 10C - 40C condition. For other USB
Adaptors such as 5V@1.5A or lower, it may not
support fast charge.
Control Panel 1. Power Button
CONSUMABLE / ACCESSORIES
Canon ZINK® Photo Paper Canon ZINK® Photo Paper (10 sheets per pouch)
2” x 3” photo paper size / Peel-and-sticky back
Canon ZINK® Pre-Cut Sticker
(Bundle Set Only)
Canon ZINK® Pre-Cut Sticker (10 sheets per pouch)
2” x 3” photo paper size / 1.3" sticker size /
Peel-and-sticky back
Pouch case Set B:
Printer pouch case x 1
Storage Environment Temperature: 0 - 25°C, Humidity: 40-55% RH
BODY
Body Upper Case Material Plastic
Body Middle Case Material Plastic
Body Lower Case Material Plastic
Top Plate Material Plastic
No. of Rubber Foot -
Others -
OTHERS
Auto-power Off YES (3mins / 5mins / 10mins) (Setting on APP)
Reset Button YES
PRODUCT STORAGE
CONDITION
Warehouse Storage
Environment (Sales Company
+ Sales Channel)
Temperature: 0 - 25°C, Humidity: 40-55% RH
Warehouse Storage Time
(Sales Company + Sales
Channel)
~ 1 Year (TBC)
PRODUCT SPECIFICATIONS
Power Source Rechargeable lithium polymer (500mAh)
Display Window Size N/A

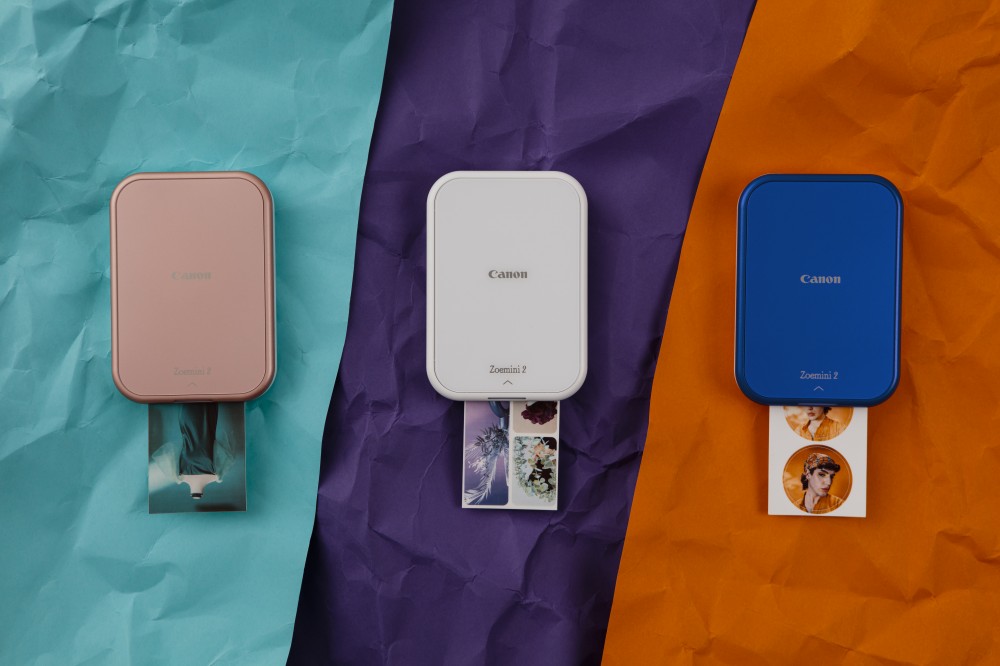

Body Color Rose Gold and White / White and Silver / Navy and
White
Body Size (W x H x D) 120 x 84 x 21.5mm
Weight 177g
