Redefining the quality standard for installation projectors.

With WUXGA resolution, Full HD support and a range of interchangeable lenses, the WUX4000 benefits from LCOS technology - redefining the benchmark for installation projectors.

Native WUXGA resolution and Full HD capability
LCOS technology
4000 lumens
1000:1 contrast ratio
Motorised lens shift, zoom and focus
3 interchangeable lens options
Advanced RGB and gamma adjustment
DVI and HDMI inputs
PJLink compatible Network port

Not available for purchase!

Details

WUXGA resolution and LCOS technology – A unique combination

Projecting at WUXGA resolution (1920 x 1200 pixels), the XEED WUX4000 raises the quality bar for installation projectors. Images from a PC or Macintosh are delivered with exceptional clarity, while Full HD video is reproduced with perfect detail. Canon LCOS technology overcomes the typical side-effects of conventional image projection, producing stunning images without the unwanted ‘lattice’ or ‘rainbow’ effects.

Exceptional performance

The XEED WUX4000 employs the latest generation of Canon’s AISYS optical system, delivering a powerful 4000 lumens. AISYS optimises the performance of the LCOS panels, for results that cut through high levels of ambient light. A high 1000:1 contrast ratio ensures vivid colours and excellent black levels.

Canon Interchangeable Lens Range

The WUX4000 is the first model in the XEED range to offer a choice of high-quality interchangeable lenses. For most installations, the standard 1.5x zoom lens will be sufficient. However, a long-focus zoom lens is also available for larger venues, while the ultra-wide fixed lens is perfect for rear projection. Whichever lens is chosen, Canon quality is assured - ensuring that image detail is maintained without sacrificing brightness or image geometry.

Motorised Lens Shift

The WUX4000 features powered vertical and horizontal lens shift, ensuring straightforward installation. Vertical shift can be varied between +55% and -15% of image height, while horizontal shift can be adjusted between +/-10% of image width.

Flexible Integration and Versatile Connectivity

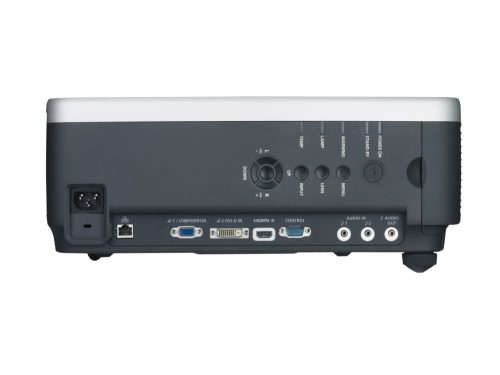

Designed for use with high-definition digital sources, the XEED WUX4000 incorporates both DVI-D and HDMI ports. A 15-pin VGA terminal is provided and three mini-jacks provide audio connectivity. Serial and network ports enable control and monitoring, while PJLink compatibility makes the WUX4000 ideal for AV system integration.

Easy Maintenance

Built to last, the WUX4000 has a modular design which facilitates easy servicing. The high-efficiency lamp has a lifespan of up to 3000 hours (in Quiet Mode) and is accessed from the rear of the projector. The air filter simply slides out from the side, while the projector remains in situ. Quick access is even provided to key optical components that have a finite lifespan, removing the need for complex dismantling. Maintenance has never been quicker or easier.

LCD PANEL

Type	LCOS reflective display, TFT Active Matrix
Size and Number	0.71” diagonal (15.4mm x 9.6mm), 3 panels
Aspect Ratio	16:10
Native Resolution	1920 x 1200 (WUXGA), 2304000 pixels

OPTICS

Lamp Type	310W NSHA
Lens F Number and Focal Length	F1.89 – F2.65; f=23.0 - 34.5mm (Lens RS-IL01ST)
Zoom Magnification and Control	1.5x Motorised
Focus Control	Motorised
Lens Shift	Vertical: 3.5:6.5 to 10.5:-0.5 (-15% to +55%) Motorised Horizontal: 4:6 to 6:4 (+/-10%) Motorised

IMAGE AND AUDIO

Brightness	4000 lumens (3500 lumens in Quiet Mode)
Brightness Uniformity	88%
Contrast Ratio	1000:1 (full on / full off)
Projection Distance Coverage	1.3m - 9.6m (3.2m - 4.8m for 100” image, Lens RS-IL01ST)
Screen Size	40” - 300” (86 x 54cm - 646 x 404cm)
Digital Zoom Magnification	1x - 12x
Keystone Correction Range	Vertical: +20° to -11° Horizontal: +/- 20°
Digital RGB Compatibility	WUXGA / UXGA / WSXGA+ / SXGA+ / WXGA+ / WXGA / SXGA / XGA / SVGA / VGA
Analogue RGB Compatibility	WUXGA / UXGA / WSXGA+ / SXGA+ / WXGA+ / WXGA / SXGA / XGA / SVGA / VGA
Digital Video Scan Systems	1080p / 1080i / 720p / 576p / 480p
Component Video Scan Systems	1080p / 1080i / 720p / 576p / 576i / 480p / 480i
Video / S-Video Colour Systems	PAL / PAL-M / PAL-N / NTSC / NTSC4.43 / SECAM
Scanning Frequency	Horizontal: 15-75kHz, Vertical: 50-85Hz, Clock: 162MHz
Display Modes	Standard, Presentation, Dynamic, Vivid Photo, Photo/sRGB, Video, Cinema, Custom (with 5 presets)
Image Enhancement	12-bit Digital Gamma Correction
Built-in Speaker	5.0W RMS, Monaural

CONNECTORS

Digital RGB Input	DVI-D 24-pin
Digital Video and Audio Input	HDMI V1.3 (with Deep Colour)
Analogue RGB Input 1	Mini D-Sub 15-pin (Component via optional adaptor cable)
Audio Input 1	3.5mm stereo mini-jack
Audio Input 2	3.5mm stereo mini-jack
Audio Output	3.5mm stereo mini-jack (variable level)
Service Port / Projector Control	Mini D-Sub 9-pin
Network Port	RJ-45

MECHANISMS

Front Elevation Mechanism

Two rotary feet, 6° maximum image elevation

RATINGS

Dimensions (W x H x D)		380mm x 170mm x 430mm
Weight		8.5kg (without lens)
Power Source		100V - 240V AC, 50/60Hz
Power Consumption		Normal Mode: 410W / Quiet Mode: 365W / Standby: 1.7W / Standby (LAN off): 0.35W
Noise Level		Normal Mode: 39dBA / Quiet Mode: 36dBA
Operating Environment		+5°C to +35°C
Storage Environment		-30°C to +60°C
Warranty		3 years

All data is based on Canon standard testing methods except where indicated
Subject to change without notice.
