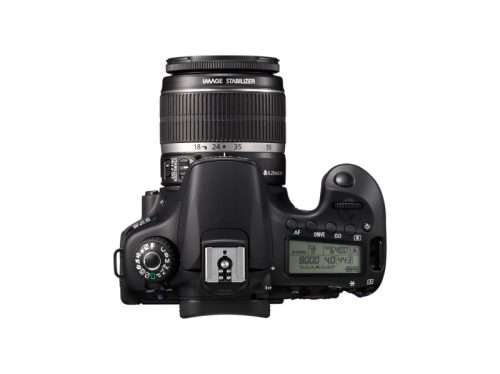

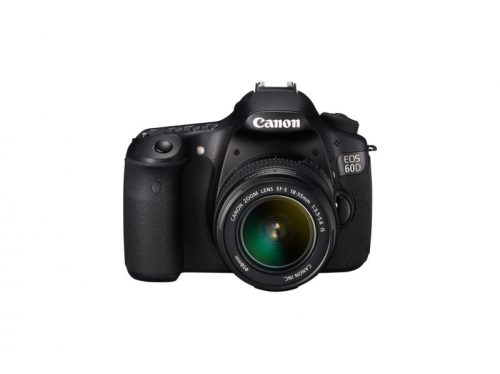

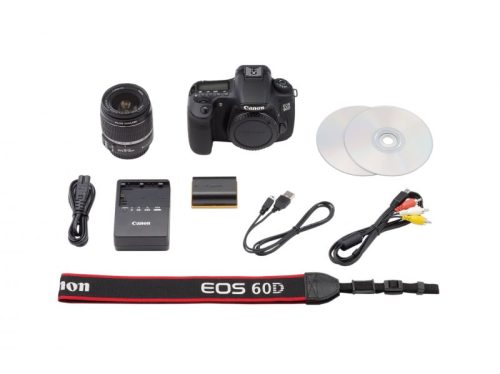

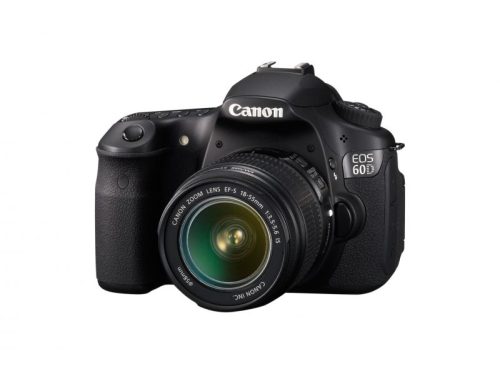

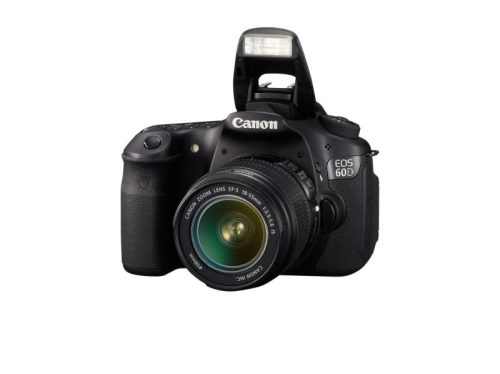

Canon EOS 60D + EF-S 18-55mm / 4-5.6 IS II

Type

22.3mm x 14.9mm CMOS

Effective Pixels

Approx. 18.00 megapixels

Total Pixels

Approx. 19.00 megapixels

Aspect Ratio

3:2

Low-Pass Filter

Built-in/Fixed

Sensor Cleaning

EOS integrated cleaning system with fluorine coating

Colour Filter Type

Primary Colour

Type

DIGIC 4

Lens Mount

EF/EF-S

Focal Length

Equivalent to 1.6x the focal length of the lens

Type

TTL-CT-SIR with a CMOS sensor

AF System/ Points

9 cross-type AF points (f/2.8 at centre)

AF Working Range

EV -0.5 - 18 (at 23°C & ISO100)

AF Modes

AI Focus
One Shot
AI Servo

AF Point Selection

Automatic selection, Manual selection

Selected AF Point Display

Superimposed in viewfinder and indicated on top LCD panel and Quick Control screen

Predictive AF

Yes up to 8m¹

AF Lock

Locked when shutter button is pressed half way in One Shot AF mode or AF-ON button is pressed.

AF Assist Beam

Intermittent firing of built-in flash or emitted by optional dedicated Speedlite

Manual Focus

Selected on lens, default in Live View Mode

AF Microadjustment

No

Metering Modes

TTL full aperture metering with 63 zone SPC
(1) Evaluative metering (linked to all AF point)
(2) Partial metering (approx. 6.5% of viewfinder at centre)
(3) Spot metering (approx. 2.8% viewfinder at centre)
(4) Centre weighted average metering

Metering Range

EV 0-20 (at 23°C with 50mm f/1.4 lens ISO100)

AE Lock

Auto: In One-shot AF mode with evaluative metering exposure is locked when focus is achieved.
Manual: By AE lock button in creative zone modes.

Exposure Compensation

+/-5 EV in 1/3 or 1/2 stop increments (can be combined with AEB).

AEB

3 Shots +/-3 EV 1/3 or 1/2 stop increments

ISO Sensitivity*

Auto (100-3200), 100-6400 (in 1/3-stop or whole stop increments)
ISO can be expanded to H: 12800

Type

Electronically-controlled focal-plane shutter

Speed

30-1/8000 sec (1/2 or 1/3 stop increments), Bulb (Total shutter speed range. Available range varies by shooting mode)

Type

Auto white balance with the imaging sensor

Settings

AWB, Daylight, Shade, Cloudy, Tungsten, White
Fluorescent light, Flash, Custom, Colour Temperature Setting.
White balance compensation:
1. Blue/Amber +/-9
2. Magenta/ Green +/-9.

Custom White Balance

Yes, 1 setting can be registered

WB Bracketing

+/-3 levels in single level increments
3 bracketed images per shutter release.
Selectable Blue/Amber bias or Magenta/ Green bias.

Type

Pentaprism

Coverage (Vertical/Horizontal)

Approx. 96%

Magnification

Approx. 0.95x¹

Eyepoint

Approx. 22mm (from eyepiece lens centre)

Dioptre Correction

-3 to +1 m-1 (dioptre)

Focusing Screen

Interchangeable (3 types, optional). Standard Focusing Screen Precision Matte Ef-A

Mirror

Quick-return half mirror (Transmission: reflection ratio of 40:60, no mirror cut-off with EF600mm f/4 or shorter)

Viewfinder Information

AF information: AF points, focus confirmation light.
Exposure information: Shutter speed, aperture value, ISO speed (always displayed), AE lock, exposure level/compensation, spot metering circle, exposure warning, AEB.
Flash information: Flash ready, high-speed sync, FE lock, flash exposure compensation, red-eye reduction light.
Image information: White balance correction, Card information, monochrome shooting, maximum burst (2 digit display), Highlight tone priority (D+).
Composition information: Electronic level (Horizontal only), Battery check

Depth of Field Preview

Yes, with Depth of Field preview button.

Eyepiece Shutter

On strap

Type

Vari angle 7.7cm (3.0") 3:2 Clear View TFT, approx. 1040K dots

Coverage

Approx. 100%

Viewing Angle (Horizontally/Vertically)

Approx 160°

Coating

Dual Anti-reflection

Brightness Adjustment

Adjustable to one of seven levels

Display Options

(1) Quick Control Screen
(2) Camera settings
(3) Electronic Level

Built-in Flash GN (ISO 100, meters)

13

Built-in Flash Coverage

up to 17mm focal length (35mm equivalent: 28mm)

Built-in Flash Recycle Time

Approx. 3 seconds

Modes

Auto, Manual flash, Integrated Speedlite Transmitter

Red-Eye Reduction

Yes

X-Sync

1/250sec

Flash Exposure Compensation

+/- 3EV in 1/2 or 1/3 increments

Flash Exposure Bracketing

Yes, with compatible External Flash

Flash Exposure Lock

Yes

Second Curtain Synchronisation

Yes

HotShoe/ PC Terminal

Yes/ No

External Flash Compatibility

E-TTL II with EX series Speedlites, wireless multi-flash support

External Flash Control

via camera menu screen

Modes

Auto, No Flash, Creative Auto, Portrait, Landscape, Close-up, Sports, Night Portrait, Movie, Program AE , Shutter priority AE, Aperture priority AE, Manual, Custom

Picture Styles

Standard, Portrait, Landscape, Neutral, Faithful, Monochrome, User Defined (x3)

Colour Space

sRGB and Adobe RGB

Image Processing

Highlight Tone Priority
Auto Lighting Optimizer (4 settings)
Long exposure noise reduction
High ISO speed noise reduction (4 settings)
Auto Correction of Lens Peripheral illumination
Basic+ (Shoot by ambience selection, Shoot by lighting or scene type)
Creative filters (Grainy B/W, Soft focus, Toy camera, Minaiture effect) - during image Playback only
RAW image processing - during image Playback only

Drive Modes

Single, Continuous L, Continuous H, Self timer (2s+remote, 10s +remote)

Continuous Shooting

Max. Approx. 5.3fps. (speed maintained for minimum of approx 58 images (JPEG)¹³, 16 images (RAW)²³

Type

Electronic viewfinder with image sensor

Coverage

Approx. 100% (horizontally and vertically)

Frame Rate

30 fps

Focusing

Manual Focus (Magnify the image 5x or 10x at any point on screen)
Autofocus: Quick mode, Live mode, Live Face detection mode

Metering

Real-time evaluative metering with image sensor Active metering time can be changed

Display Options

Grid overlay (x2), Histogram, Multi aspect ratios, Electronic level

Still Image Type

JPEG: Fine, Normal (Exif 2.3 compliant) / Design rule for Camera File system (2.0),
RAW: RAW, M-RAW, S-RAW (14bit, Canon original RAW 2nd edition),
Digital Print Order Format [DPOF] Version 1.1 compliant

RAW+JPEG Simultaneous Recording

Yes, any combination of RAW + JPEG, M-RAW + JPEG, S-RAW + JPEG possible.

Image Size

JPEG 3:2: (L) 5184x3456, (M) 3456x2304, (S1) 2592x1728, (S2) 1920x1280, (S3) 720x480
JPEG 4:3: (L) 4608x3456, (M) 3072x2304, (S1) 2304x1728, (S2) 1696x1280, (S3) 640x480
JPEG 16:9: (L) 5184x2912, (M) 3456x1944, (S1) 2592x1456 (S2) 1920x1080, (S3) 720x400
JPEG 1:1: (L) 3456x3456, (M) 2304x2304, (S1) 1728x1728, (S2) 1280x1280, (S3) 480x480
RAW: (RAW) 5184x3456, (M-RAW) 3888x2592, (S-RAW) 2592x1728

Movie Type

MOV (Video: H.264, Sound: Linear PCM)

Movie Size

1920 x 1080 (29.97, 25, 23.976 fps)
1280 x 720 (59.94, 50 fps)
640 x 480 (59.94, 50 fps)

Movie Length

Max duration 29min 59sec, Max file size 4GB

Folders

New folders can be manually created and selected

File Numbering

(1) Consecutive numbering
(2) Auto reset
(3) Manual reset

Custom Functions

20 Custom Functions with 59 settings

Metadata Tag

User copyright information (can be set in camera)
Image rating (0-5 stars)

LCD Panel / Illumination

Yes / Yes

Water/ Dust Resistance

Yes¹

Sound Memo

-

Intelligent Orientation Sensor

Yes

Playback Zoom

1.5x - 10x

Display Formats

(1) Single image with information (2 levels)
(2) Single image
(3) 4 image index
(4) 9 image index
(5) Magnified view

Slide Show

Image selection: All images, by Date, by Folder, Movies, Stills, Rating
Playback time: 1/2/3/5/10 or 20 seconds
Repeat: On/Off

Histogram

Brightness: Yes
RGB: Yes

Highlight Alert

Yes

Image Erase/Protection

Erase: Single image, All images in folder, Checkmarked images, unprotected images
Protection: Erase protection of one image at a time

Data Verification

Original image verification data can be appended to the image (OSK-E3 required for verification)

Menu Categories

(1) Shooting menu (x4)
(2) Playback menu (x2)
(3) Setup menu (x3)
(4) Custom Functions menu
(5) My Menu

Menu Languages

25 Languages
English, German, French, Dutch, Danish, Portuguese, Finnish, Italian, Norwegian, Swedish, Spanish, Greek, Russian, Polish, Czech, Hungarian, Romanian, Ukrainian, Turkish, Arabic, Thai, Simplified Chinese, Traditional Chinese, Korean and Japanese

Firmware Update

Update possible by the user.

Computer

Hi-Speed USB

Other

Video output (PAL/ NTSC) (integrated with USB terminal), HDMI mini output (HDMI-CEC compatible), External microphone (3.5mm Stereo mini jack)

Canon Printers

Canon Compact Photo Printers and PIXMA Printers supporting PictBridge

PictBridge

Yes

Type

SD card, SDHC card or SDXC card

PC & Macintosh

Windows XP (SP2/SP3) / Vista inc SP1 (excl. Starter Edition) / 7 (excl. Starter Edition)
OS X v10.4-10.6

Browsing & Printing

ZoomBrowser EX / ImageBrowser

Image Processing

Digital Photo Professional

Other

PhotoStitch, EOS Utility (inc. Remote Capture, Original Data Security Tools*), Picture Style Editor
* Requires optional accessory

Batteries

Rechargeable Li-ion Battery LP-E6 (supplied), built in for date & settings

Battery Life

Approx. 1100 (at 23°C, AE 50%, FE 50%)¹
Approx. 1000 (at 0°C, AE 50%, FE 50%)

Battery Indicator

6 levels + percentage

Power Saving

Power turns off after 1, 2, 4, 8, 15 or 30mins.

Power Supply & Battery Chargers

AC Adapter Kit ACK-E6, Battery charger LC-E6, Car Battery charger CBC-E6

Body Materials

Aluminium and polycarbonate resin with glass fibre

Operating Environment

0 - 40 °C, 85% or less humidity

Dimensions (WxHxD)

144.5 x 105.8 x 78.6mm

Weight (Body Only)

Approx. 755g (CIPA testing standard, including battery and memory card)

Viewfinder

Eyecup Eb, E-series Dioptric Adjustment Lens Focusing Screens Ef (with Grid Ef-D, Super Precision Matte Ef-S), Angle Finder C

Case

Leather case EH21-L

Wireless File Transmitter

Compatible with Eye-Fi cards

Lenses

All EF and EF-S lenses

Flash

Canon Speedlites (220EX, 270EX, 270EX II, 320EX, 420EX, 430EX, 430EX II, 550EX, 580EX, 580EX II, Macro-Ring-Lite, MR-14EX, Macro Twin Lite MT-24EX, Speedlite Transmitter ST-E2)

Battery Grip

BG-E9

Remote Controller/ Switch

Remote Switch RS-60E3, Remote Controller RC-6/RC-1/RC-5

Other

Hand Strap E2

Predictive AF

¹ with EF300mm f/2.8L IS USM at 50kph

Magnification

¹ with 50mm lens at infinity, -1m-1 dpt

Continuous Shooting

¹ Large/Fine(Quality 8) resolution
² Based on Canon's testing conditions, JPEG, ISO 100, Standard Picture Style. Varies depending on the subject, memory card brand and capacity, image recording quality, ISO speed, drive mode, Picture Style, Custom functions etc.
³ Maximum fps and buffer capacity may be reduced depending on the cameras settings and light level

Water/ Dust Resistance

¹ Memory card and battery door only

Battery Life

¹ Based on the CIPA Standard and using the batteries and memory card format supplied with the camera, except where indicated
