Canon XEED WUX10 mark II

Article No.: 4231B003-

Canon XEED WUX10 mark II

Article No.: 4231B003-

Out of stock

WUXGA and Full HD – The Best of Both Worlds

With industry leading WUXGA resolution (1920 x 1200), the WUX10 Mark II projects widescreen images and Full HD video at 3200 lumens – making it perfect for business and specialist AV applications.

Native WUXGA resolution and Full HD capability
Canon LCOS technology with AISYS Optical System
3200 lumens brightness and 1000:1 contrast ratio
1.5x zoom lens with 10:0 offset
PHOTO image mode
Auto setup
DVI and HDMI™ connectivity

Gift

Info

Delivery time

Kifutott termék, már nem rendelhető. - No Longer Available.

Article No.

4231B003-

Details

Native WUXGA resolution and Full HD capability

Projecting at WUXGA resolution (1920 x 1200 pixels), the XEED WUX10 Mark II offers outstanding imaging power – reproducing bright, high contrast widescreen computer images and Full HD (1080p) video. Canon LCOS technology overcomes conventional projection limitations, reproducing fine detail without the unwanted “lattice” or “rainbow” effects.

Exceptional brightness and contrast

The XEED WUX10 Mark II employs Canon’s AISYS optical system to deliver sharp, clear images at a powerful 3200 lumens. AISYS optimises the light path to get the most from a highly efficient AC projector lamp, for results that cut through high levels of ambient light. In addition, the Canon AISYS system also yields a high 1000:1 contrast ratio, for faithful reproduction of every subtle gradation in the source image.

Easy placement

The WUX10 Mark II is fitted with a Canon 1.5x powered zoom projection lens, specially designed to combat distortion and deliver exacting image geometry. A 10:0 lens offset makes installation exceptionally easy.

PHOTO image mode

The WUX10 Mark II features a new ‘Photo’ image mode, specially designed for the optimum reproduction of sRGB photographic images. By taking into account the colour tone and brightness of the ambient light, photos can be reproduced with superb colour accuracy, regardless of variations in lighting conditions.

Fully automatic set-up

At the touch of a button, the projector automatically configures four key settings: Focus, Keystone Correction, Input Selection and Screen Colour Correction. Settings are accurately adjusted in seconds, leaving you free to concentrate on your presentation.

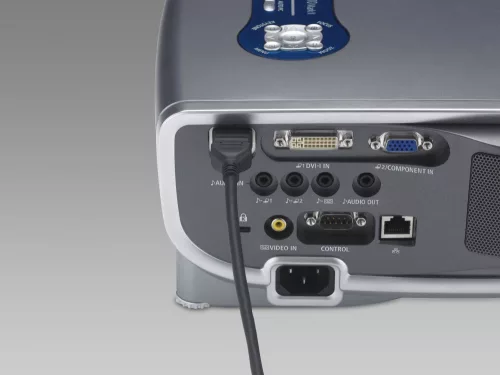

High Definition connectivity

Designed for use with HD sources, the WUX10 Mark II features a DVI terminal and an HDMI™ Connector, with full HDCP support.

Integrated networking

With its on-board RJ-45 port, the WUX10 Mark II can be connected directly to a network for control and monitoring. This makes it ideal for integration with AV control systems.

Quiet operation

Running at levels of just 32dBA in Quiet Mode, this projector won’t distract your audience with unwanted fan noise. Quiet Mode also extends lamp lifetime, up to a maximum of 3000 hours.

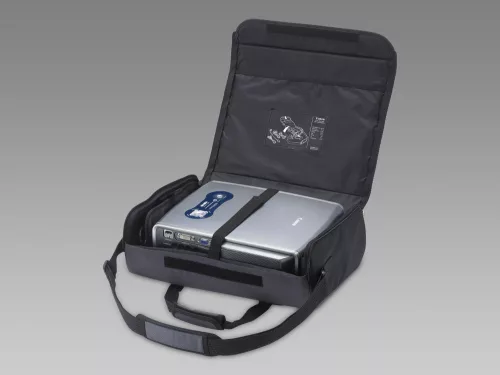

Convenient portability

With a portable design weighing just 5.0kg, the WUX10 Mark II offers outstanding projection power in an exceptionally convenient, compact form.

LCD PANEL

Type	LCOS reflective display, TFT Active Matrix
Size and Number	0.71” diagonal (15.4mm x 9.6mm), 3 panels
Aspect Ratio	16:10
Native Resolution	1920 x 1200 (WUXGA), 2304000 pixels

OPTICS

Lamp Type	275W NSHA
Lens F Number and Focal Length	F1.85 – F2.65; f=21.8 – 31.9mm
Zoom Magnification and Control	1.5x Motorised
Focus Control	Motorised Auto / Manual Focus
Lens Shift	10:0 (fixed)

IMAGE AND AUDIO

Brightness	3200 lumens (2560 lumens in Quiet Mode)
Brightness Uniformity	88%
Contrast Ratio	1000:1 (full on / full off)
Projection Distance Coverage	1.2m – 9.1m (3.0m - 4.4m for a 100 inch image)
Screen Size	40” - 300” (86 x 54cm - 646 x 404cm)
Digital Zoom Magnification	1x – 12x
Keystone Correction Range	Vertical: +/- 20° (Auto / Manual)
Digital RGB Compatibility	WUXGA / UXGA / WSXGA+ / SXGA+ / WSXGA / SXGA / XGA / SVGA / VGA
Analogue RGB Compatibility	WUXGA / UXGA / SXGA+ / WSXGA / SXGA / WXGA / XGA/ SVGA / VGA
Digital Video Scan Systems	1080p / 1080i / 720p / 576p / 480p
Component Video Scan Systems	1080p / 1080i / 1035i / 720p / 576p / 576i / 480p / 480i
Video / S-Video Colour Systems	PAL / PAL-M / PAL-N / NTSC / NTSC4.43 / SECAM
Scanning Frequency	Horizontal: 15-75kHz, Vertical: 50-85Hz, Clock: 170MHz
Display Modes	Standard, Presentation, Movie, sRGB, Photo
Image Enhancement	12-bit Digital Gamma Correction
Built-in Speaker	1.0W RMS, Monaural

CONNECTORS

Digital RGB / Analogue RGB Input 1	DVI-I 29-pin
Digital Video and Audio Input	HDMI V1.3 with Deep Colour
Analogue RGB Input 2	Mini D-Sub 15-pin (Component via supplied adaptor cable)
Analogue RGB Output	Mini D-Sub 15-pin (shared with Analogue RGB Input 2)
Composite Video Input	RCA x 1
Audio Input 1, Input 2, Input 3	3.5mm stereo mini-jack x 3
Audio Output	3.5mm stereo mini-jack x 1 (variable level)
Service Port / Projector Control	Mini D-Sub 9-pin
Network Port	RJ-45

MECHANISMS

Front Elevation Mechanism	One-Touch mechanical foot, 10° maximum image elevation
Rear Adjustment Mechanism	Two rotary feet for fine adjustment

RATINGS

Dimensions (W x H x D)	284mm x 114mm x 336mm
Weight	5.0kg
Power Source	100V - 240V AC, 50/60Hz
Power Consumption	Normal Mode: 400W / Quiet Mode: 330W / Standby: 11W
Noise Level	Normal Mode: 36dBA / Quiet Mode: 32dBA
Operating Environment	+5°C to +35°C
Storage Environment	-30°C to +60°C
Warranty	3 years
