18 megapixel APS-C CMOS sensor
Capture every detail with an APS-C sized CMOS sensor offering 18 megapixel resolution. Images can be printed at large sizes, or cropped for alternative compositions without losing quality.
Low-light shooting
Use the EOS 7D hand held in low light, without the need for flash. Sensitivities extend up to ISO 6400 (expandable to ISO 12,800).
Shoot at 8 frames per second
Shoot full-resolution images at 8 fps, and ensure you never miss that decisive moment. Capture 130 JPEG files in a single burst, or 25 images in RAW format.

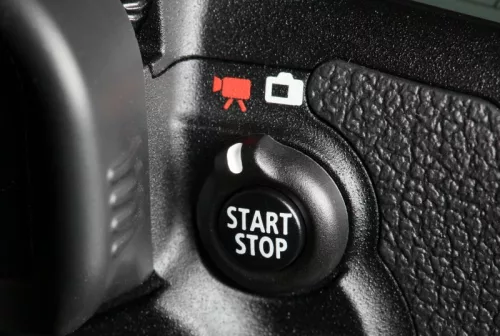

Full HD movie recording
Capture Full-HD movies at 1080p, with manual control over settings such as exposure, audio level and white balance. Canon’s EF lenses provide access to cinematic effects and shooting styles.
19-point autofocus system
Focus quickly and accurately using 19 cross-type AF points, spread out in a diamond formation across the frame.
Dual “DIGIC 4” processors
A pair of “DIGIC 4” processors provide the EOS 7D with the power to deliver exceptional image quality and outstanding performance. Effective noise reduction is accompanied by smooth tonal gradation and natural reproduction of colours.
Clear View II LCD screen
Review images and navigate the camera’s menu systems using a 920,000-dot, 7.7cm (3.0”) Clear View II LCD screen. Live View composition, offering three autofocus modes, is available while shooting stills or video.
Intelligent Viewfinder
Enjoy a natural view through the EOS 7D’s viewfinder, with approximately 100 per cent viewfinder coverage and 1.0x magnification. A transparent LCD screen overlays focus information and a dual-axis electronic level ensures straight horizons.
iFCL metering system
The EOS 7D uses a 63-zone exposure metering system for accurate determination of shutter speed and aperture values. Colour and luminance information is combined with data from the camera’s AF system.
Integrated Speedlite Transmitter
Explore new creative lighting possibilities. Control up to three groups of off-camera Speedlite flashguns using the EOS 7D’s Integrated Speedlite Transmitter.

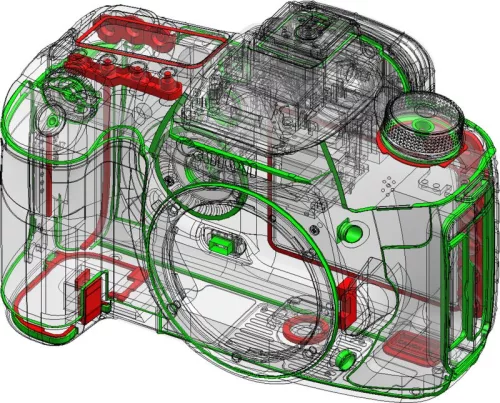

Robust construction
The EOS 7D has been designed for use in the most demanding situations. A magnesium-alloy body is sealed against dust and moisture. An EOS Integrated Cleaning System ensures the camera’s sensor stays dust free for optimum image quality.
p>A 920 000 képpontos, 7,7 cm-es (3,0”) Clear View II LCD képernyőn megtekintheti a képeket és navigálhat a fényképezőgép menürendszerében A három autofókusz üzemmóddal rendelkező Élőképes kompozíció állóképek és videók készítéséhez is használható.
Intelligens kereső
Az EOS 7D keresője természetes módon jeleníti meg a képet körülbelül 100%-os képátfogással és 1,0-szeres nagyítással. Az áttetsző LCD kijelzőn átfedésben láthatók a fókuszálási adatok, a horizont egyenesen tartásáról pedig kettős tengelyű elektronikus horizont gondoskodik.
iFCL fénymérési rendszer
Az EOS 7D 63 zónás fénymérési rendszert használ a záridő és a rekeszértékek pontos meghatározása érdekében. A szín- és fényerőadatok együtt kerülnek feldolgozásra a fényképezőgép AF-rendszerének adataival.
Integrált Speedlite adó
Új, kreatív megvilágítási lehetőségek tárulnak fel Ön előtt.. Az EOS 7D integrált Speedlite adójával akár három csoportra osztva is vezérelheti a külső Speedlite vakukat.
Robusztus kialakítás
Az EOS 7D a legmostohább körülmények között is megállja a helyét. A magnéziumötvözet váz a por és a nedvesség ellen is védi a fényképezőgépet. Az EOS Integrált tisztítási rendszernek köszönhetően a fényképezőgép érzékelője mindig pormentes marad az optimális képminőség érdekében.
IMAGE SENSOR
|
Type
|
22.3mm x 14.9mm CMOS
|
|
Effective Pixels
|
Approx. 18.00 megapixels
|
|
Total Pixels
|
Approx. 19.00 megapixels
|
|
Aspect Ratio
|
3.2
|
|
Low-Pass Filter
|
Built-in/Fixed with fluorine coating
|
|
Sensor Cleaning
|
EOS integrated cleaning system
|
|
Colour Filter Type
|
Primary Colour
|
IMAGE PROCESSOR

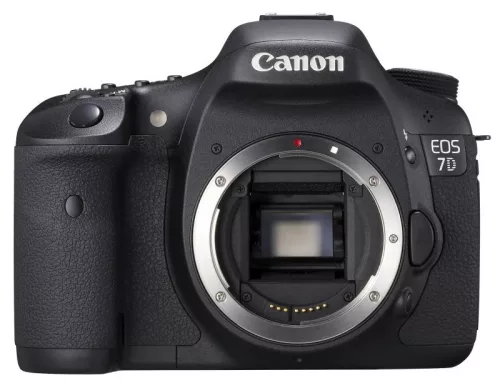

LENS
|
Lens Mount
|
EF/EF-S
|
|
Focal Length
|
Equivalent to 1.6x the focal length of the lens
|
FOCUSING
|
Type
|
TTL-CT-SIR with a CMOS sensor
|
|
AF System/ Points
|
19 cross-type AF points (f/2.8 at centre)¹
|
|
AF Working Range
|
EV -0.5 - 18 (at 23°C & ISO100)
|
|
AF Modes
|
AI Focus
One Shot
AI Servo
|
|
AF Point Selection
|
Automatic selection: 19 point AF
Manual selection: Single point AF
Manual selection: Spot AF
Manual selection: AF point Expansion
Manual selection: Zone AF
AF points can be selected separately for vertical and horizontal shooting
|
|
Selected AF Point Display
|
Indicated by a transmissive LCD in viewfinder and on top LCD panel and Quick Control screen
|
|
Predictive AF
|
Yes, up to 8m
|
|
AF Lock
|
Locked when shutter button is pressed half way in One Shot AF mode or AF-ON button is pressed.
|
|
AF Assist Beam
|
Intermittent firing of built-in flash or emitted by optional dedicated Speedlite
|
|
Manual Focus
|
Selected on lens, default in Live View Mode
|
|
AF Microadjustment
|
C.Fn III-5
+/- 20 steps
Adjust all lenses by same amount
Adjust up to 20 lenses individually
|
EXPOSURE CONTROL
|
Metering Modes
|
TTL full aperture metering with 63 zone Dual Layer SPC
(1) Evaluative metering (linked to All AF point)
(2) Partial metering (approx. 9.4% of viewfinder at centre)
(3) Spot metering (approx. 2.3% viewfinder at centre)
(4) Centre weighted average metering
|
|
Metering Range
|
EV 1 - 20 (at 23°C with 50mm f/1.4 lens ISO100)
|
|
AE Lock
|
Auto: In 1-shot AF mode with evaluative metering exposure is locked when focus is achieved.
Manual: By AE lock button in creative zone modes.
|
|
Exposure Compensation
|
+/-5 EV in 1/3 or 1/2 stop increments (can be combined with AEB).
|
|
AEB
|
3 Shots +/-3 EV 1/3 or 1/2 stop increments
|
|
ISO Sensitivity*
|
Auto (100-6400, max ISO can limited by user ), 100-6400 (in 1/3-stop or whole stop increments)
ISO can be expanded to H: 12800
|
SHUTTER
|
Type
|
Electronically-controlled focal-plane shutter
|
|
Speed
|
30-1/8000 sec (1/2 or 1/3 stop increments), Bulb (Total shutter speed range. Available range varies by shooting mode)
|
WHITE BALANCE
|
Type
|
Auto white balance with the imaging sensor
|
|
Settings
|
AWB, Daylight, Shade, Cloudy, Tungsten, White
Fluorescent light, Flash, Custom, Colour Temperature Setting.
White balance compensation:
1. Blue/Amber +/-9
2. Magenta/ Green +/-9.
|
|
Custom White Balance
|
Yes, 1 setting can be registered
|
|
WB Bracketing
|
+/-3 levels in single level increments
3 bracketed images per shutter release.
Selectable Blue/Amber bias or Magenta/ Green bias.
|
VIEWFINDER
|
Type
|
Pentaprism
|
|
Coverage (Vertical/Horizontal)
|
Approx. 100%
|
|
Magnification
|
Approx. 1.0x¹
|
|
Eyepoint
|
Approx. 22mm (from eyepiece lens centre)
|
|
Dioptre Correction
|
-3 to +1 m-1 (dioptre)
|
|
Focusing Screen
|
Fixed (Transmissive LCD screen)
|
|
Mirror
|
Quick-return half mirror (Transmission: reflection ratio of 40:60, no mirror cut-off with EF600mm f/4 or shorter)
|
|
Viewfinder Information
|
AF information: AF points, focus confirmation light.
Exposure information: Shutter speed, aperture value, ISO speed (always displayed), AE lock, exposure level/compensation, spot metering circle, exposure warning, AEB.
Flash information: Flash ready, high-speed sync, FE lock, flash exposure compensation, red-eye reduction light.
Image information: White balance correction, CF card information, monochrome shooting, maximum burst (2 digit display), Highlight tone priority (D+).
Composition information: Grid, Dual Axis Electronic level
|
|
Depth of Field Preview
|
Yes, with Depth of Field preview button.
|
|
Eyepiece Shutter
|
On strap
|

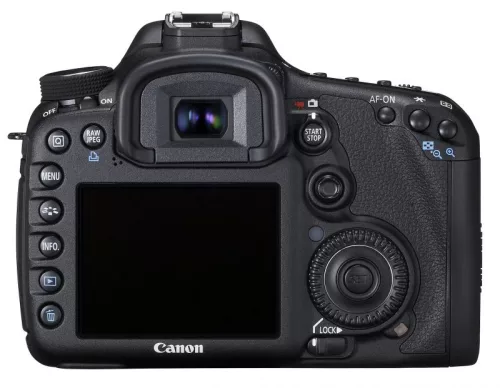

LCD MONITOR
|
Type
|
7.5cm (3.0") Clear View II TFT, approx. 920K dots
|
|
Coverage
|
Approx. 100%
|
|
Viewing Angle (Horizontally/Vertically)
|
Approx 160°
|
|
Coating
|
Anti-reflection and Solid Structure
|
|
Brightness Adjustment
|
Auto: Using extenal ambient light sensor
Manual: Adjustable to one of seven levels
|
|
Display Options
|
(1) Quick Control Screen
(2) Camera settings
(3) Dual Axis Electronic Level
|
FLASH
|
Built-in Flash GN (ISO 100, meters)
|
12
|
|
Built-in Flash Coverage
|
up to 15mm focal length (35mm equivalent: 24mm)
|
|
Built-in Flash Recycle Time
|
Approx. 3 seconds
|
|
Modes
|
Auto, Manual flash, Multi flash, Integrated Speedlite Transmitter
|
|
Red-Eye Reduction
|
Yes
|
|
X-Sync
|
1/250sec
|
|
Flash Exposure Compensation
|
+/- 3EV in 1/2 or 1/3 increments
|
|
Flash Exposure Bracketing
|
Yes, with compatible External Flash
|
|
Flash Exposure Lock
|
Yes
|
|
Second Curtain Synchronisation
|
Yes
|
|
HotShoe/ PC Terminal
|
Yes/ Yes
|
|
External Flash Compatibility
|
E-TTL II with EX series Speedlites, wireless multi-flash support
|
|
External Flash Control
|
Via camera menu screen
|
SHOOTING
|
Modes
|
Auto (Stills and Movie), Creative Auto, Program AE, Shutter priority AE, Aperture priority AE, Manual (Stills and Movie), Custom (x3)
|
|
Picture Styles
|
Standard, Portrait, Landscape, Neutral, Faithful, Monochrome, User Defined (x3)
|
|
Colour Space
|
sRGB and Adobe RGB
|
|
Image Processing
|
Highlight Tone Priority
Auto Lighting Optimizer (4 settings)
Long exposure noise reduction
High ISO speed noise reduction (4 settings)
Auto Correction of Lens Peripheral illumination
RAW image processing - during image Playback only
Resize to M or S
|
|
Drive Modes
|
Single, Continuous L, Continuous H, Self timer (2s+remote, 10s +remote)
|
|
Continuous Shooting
|
Max. Approx. 8fps. (speed maintained for up to 130 images (JPEG)¹³(with UDMA card), 25 images (RAW))²³
|
LIVE VIEW MODE
|
Type
|
Electronic viewfinder with image sensor
|
|
Coverage
|
Approx. 100% (horizontally and vertically)
|
|
Frame Rate
|
30 fps
|
|
Focusing
|
Manual Focus (Magnify the image 5x or 10x at any point on screen)
Autofocus: Quick mode, Live mode, Live Face detection mode
|
|
Metering
|
Real-time evaluative metering with image sensor
Active metering time can be changed
|
|
Display Options
|
Grid overlay (x2), Histogram
|
FILE TYPE
|
Still Image Type
|
JPEG: Fine, Normal (Exif 2.21 [Exif Print] compliant) / Design rule for Camera File system (2.0),
RAW: RAW, M-RAW, S-RAW (14bit, Canon original RAW 2nd edition),
Digital Print Order Format [DPOF] Version 1.1 compliant
|
|
RAW+JPEG Simultaneous Recording
|
Yes, any combination of RAW + JPEG, M-RAW + JPEG, S-RAW + JPEG possible.
|
|
Image Size
|
JPEG: (L) 5184x3456, (M) 3456x2304, (S) 2592x1728
RAW: (RAW) 5184x3456, (M-RAW) 3888x2592, (S-RAW) 2592x1728
|
|
Movie Type
|
MOV (Video: H.264, Sound: Linear PCM, recording level can be manually adjusted by user)
|
|
Movie Size
|
1920 x 1080 (29.97, 25, 23.976 fps)
1280 x 720 (59.94, 50 fps)
640 x 480 (59.94, 50 fps)
|
|
Movie Length
|
Max duration 29min 59sec, Max file size 4GB
|
|
Folders
|
New folders can be manually created and selected
|
|
File Numbering
|
(1) Consecutive numbering
(2) Auto reset
(3) Manual reset
|
OTHER FEATURES
|
Custom Functions
|
27 Custom Functions with 70 settings
|
|
Metadata Tag
|
User copyright information (can be set in camera)
Image rating (0-5 stars)
|
|

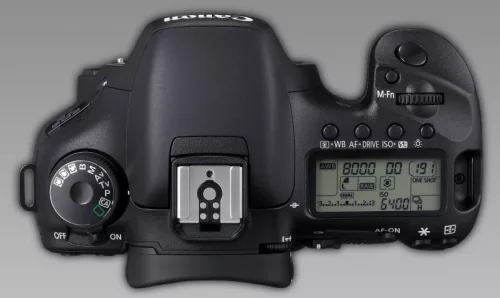

LCD Panel / Illumination
|
Yes / Yes
|
|
Water/ Dust Resistance
|
Yes (equal to EOS-1N)
|
|
Sound Memo
|
No
|
|
Intelligent Orientation Sensor
|
Yes
|
|
Playback Zoom
|
1.5x - 10x
|
|
Display Formats
|
(1) Single image with information (2 levels)
(2) Single image
(3) 4 image index
(4) 9 image index
(5) Magnified view
|
|
Slide Show
|
Image selection: All images, by Date, by Folder, Movies, Stills, Rating
Playback time: 1/2/3/5 seconds
Repeat: On/Off
|
|
Histogram
|
Brightness: Yes
RGB: Yes
|
|
Highlight Alert
|
Yes
|
|
Image Erase/Protection
|
Erase: Single image, All images in folder, Checkmarked images, unprotected images
Protection: Erase protection of one image at a time
|
|
Menu Categories
|
(1) Shooting menu (x4)
(2) Playback menu (x2)
(3) Setup menu (x3)
(4) Custom Functions menu
(5) My Menu
|
|
Menu Languages
|
25 Languages
English, German, French, Dutch, Danish, Portuguese, Finnish, Italian, Norwegian, Swedish, Spanish, Greek, Russian, Polish, Czech, Hungarian, Romanian, Ukrainian, Turkish, Arabic, Thai, Simplified Chinese, Traditional Chinese, Korean and Japanese
|
|
Firmware Update
|
Update possible by the user.
|

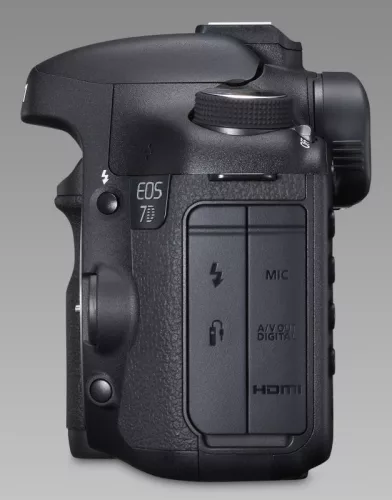

INTERFACE
|
Computer
|
Hi-Speed USB
|
|
Other
|
HDMI mini output, Video output (PAL/ NTSC), Extension system terminal (for WFT-E5), External microphone (Stereo mini jack)
|
DIRECT PRINT
|
Canon Printers
|
Canon Compact Photo Printers and PIXMA Printers supporting PictBridge
|
|
PictBridge
|
Yes
|
STORAGE
|
Type
|
CompactFlash Type I/ II (Microdrive compatible, UDMA compatible), external storage with WFT-E5
|
SUPPORTED OPERATING SYSTEM
|
PC & Macintosh
|
Windows XP (SP2/SP3) / Vista inc SP1 (excl. Starter Edition) / 7 (excl. Starter Edition)
OS X v10.6-10.7
|
SOFTWARE
|
Browsing & Printing
|
ImageBrowser EX
|
|
Image Processing
|
Digital Photo Professional
|
|
Other
|
PhotoStitch, EOS Utility (inc. Remote Capture, WFT utility*), Picture Style Editor
* Requires optional accessory
|
POWER SOURCE
|
Batteries
|
Rechargeable Li-ion Battery LP-E6 (supplied), 1xCR1616 for date & settings
|
|
Battery Life
|
Approx. 800 (at 23°C, AE 50%, FE 50%)¹
Approx. 750 (at 0°C, AE 50%, FE 50%)
|
|
Battery Indicator
|
6 levels + percentage
|
|
Power Saving
|
Power turns off after 1, 2, 4, 8, 15 or 30mins.
|
|
Power Supply & Battery Chargers
|
AC Adapter Kit ACK-E6, Battery charger LC-E6, Car Battery charger CBC-E6
|
PHYSICAL SPECIFICATIONS
|
Body Materials
|
Magnesium Alloy body covers
|
|
Operating Environment
|
0 – 40 °C, 85% or less humidity
|
|
Dimensions (WxHxD)
|
148.2 x 110.7 x 73.5mm
|
|
Weight (Body Only)
|
Approx. 820g
|
ACCESSORIES
|
Viewfinder
|
Eyecup Eg, Dioptric adjustment lens Eg, Anti-Fog Eyepiece Eg
|
|
Case
|
EH20-L
|
|
Wireless File Transmitter
|
Wireless File Transmitter WFT-E5
|
|
Lenses
|
All EF and EF-S lenses
|
|
Flash
|
Canon Speedlites (220EX, 270EX, 270EX II, 320EX, 420EX, 430EX, 430EX II, 550EX, 580EX, 580EX II, 600EX, 600EX-RT, Macro-Ring-Lite, MR-14EX, Macro Twin Lite MT-24EX, Speedlite Transmitter ST-E2, Speedlite Transmitter ST-E3-RT)
|
|
Battery Grip
|
BG-E7
|
|
Remote Controller/ Switch
|
Remote control with N3 type contact, Wireless Controller LC-5, Remote Controller RC-1/RC-5
|
|
Other
|
Hand Strap E2, GP-E2
|
|
AF System/ Points
|
¹ Peripheral Cross type AF points will not function as a cross type AF points with the following lenses: EF 35-80mm f4-5.6 (II/III/USM), EF35-105mm f4.5-5.6 (USM). EF 80-200mm f4.5-5.6 (II)
|
|
Predictive AF
|
¹ with EF300mm f/2.8L IS USM at 50kph
|
|
Magnification
|
¹ with 50mm lens at infinity, -1 (1/m) dpt
|
|
Continuous Shooting
|
¹ Large/Fine(Quality 8) resolution
² Based on Canon's testing conditions, JPEG, ISO 100, Standard Picture Style. Varies depending on the subject, memory card brand and capacity, image recording quality, ISO speed, drive mode, Picture Style, Custom functions etc.
³ Maximum fps and buffer capacity may be reduced depending on the cameras settings and light level
|
|
Battery Life
|
¹ Based on the CIPA Standard and using the batteries and memory card format supplied with the camera, except where indicated
|
- *Recommended Exposure Index
- All data is based on Canon standard testing methods except where indicated.
- Subject to change without notice.
