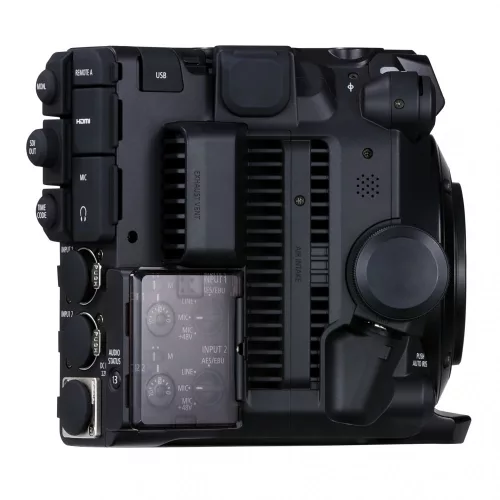

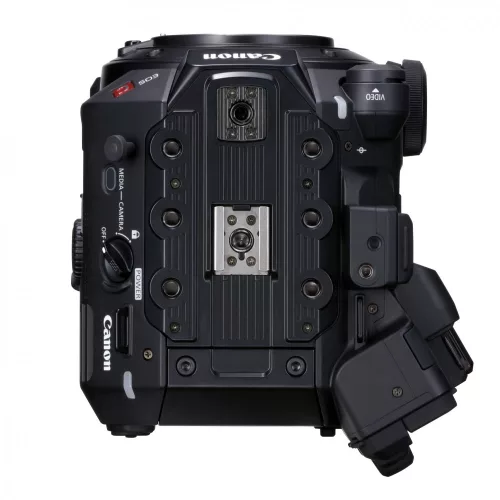

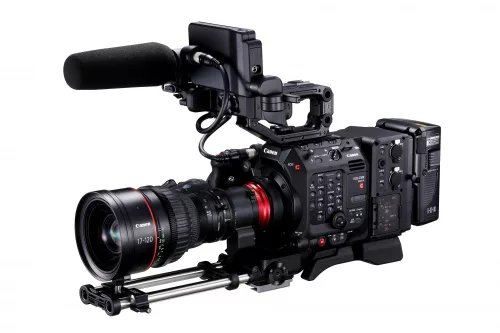

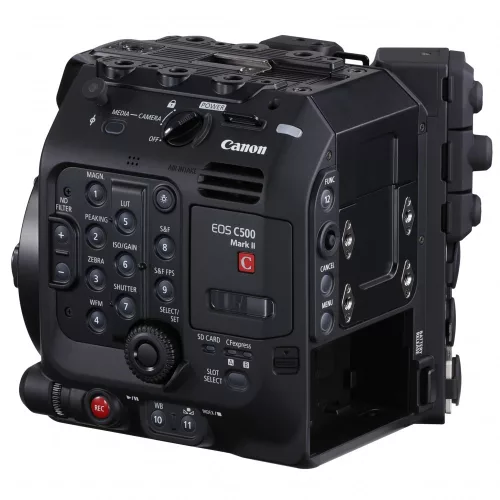

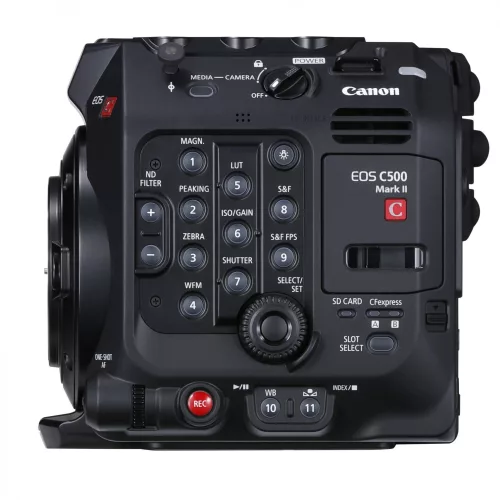

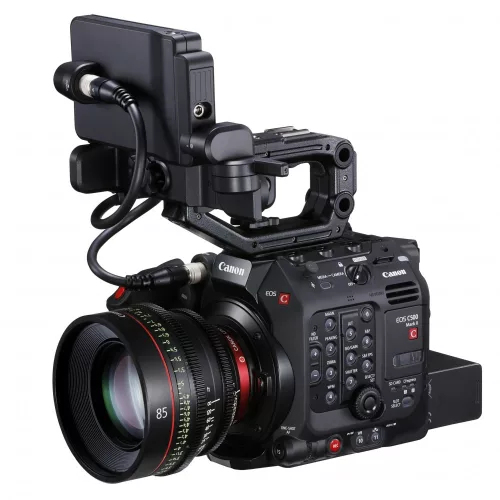

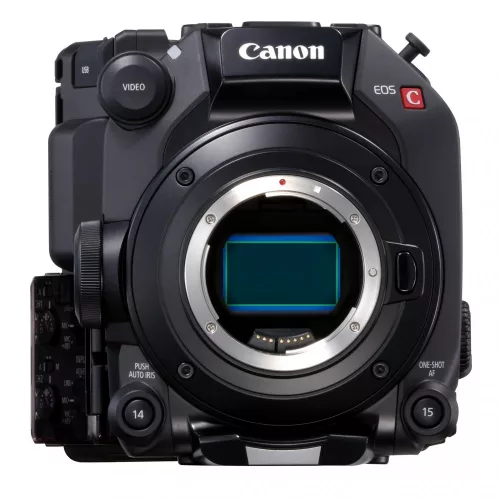

Canon EOS C500 mark II váz (5.9K) (EF mount) (3794C009)

Name: Canon EOS C500 mark II váz (5.9K) (EF mount) (3794C009)
SKU: 3794C009-4549292143683
Price: 5439900 HUF
Availability: InStock

Article No.:

3794C009-4549292143683

Canon EOS C500 mark II váz (5.9K) (EF mount) (3794C009)

Canon EOS C500 mark II váz (5.9K) (EF mount) (3794C009)

Article No.:

3794C009-4549292143683

Canon EOS C500 mark II váz (5.9K)

(EF mount)

New generation Cinema EOS System

5.9K Full Frame sensor packed into a newly developed compact and reliable Cinema EOS body, this camera provides new inspiration and great flexibility for all cinematographers.

EOS C500 mark II

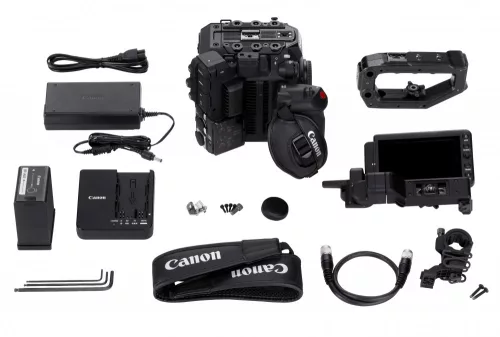

What's in the box

EOS C500 Mark II Body
LCD Monitor LM-V2
LCD Attachment Unit LA-V2
Unit Cable UN-5
Camera Grip GR-V1
Handle Unit
Mic Holder Unit
Battery Pack BP-A60
Battery Charger CG-A20
Compact Power Adapter CA-CP200B
AC Power Cable
Shoulder Strap SS-1200
Extension System Attachment Bracket
Thumb Rest
Body Cap
Allen wrenches and bolts

Available for order

4 283 386 HUF+TAX=5 439 900 HUF

Bonus point : 54 399 HUF

Kedvezményeket keres?

Details

Specifications in detail

Image Sensor

Sensor

Full Frame CMOS sensor

System

RGB primary colour filter (Bayer array)

Sensor Modes

Full Frame / Super 35 mm (Crop) / Super 16 mm (Crop)

Total Pixels

Approx. 20.8 megapixels (6062 x 3432)

Effective Pixels (Full Frame Mode)

Approx. 18.69 megapixels (5952 x 3140): 5952 x 3140 or 4096 x 2160 or 2048 x 1080 selected resolution
Approx. 17.52 megapixels (5580 x 3140): 3840 x 2160 or 1920 x 1080 selected resolution

Effective Sensor Screen Size

38.1 x 20.1 mm (43.1 mm on the diagonal): 5952 x 3140, 4096 x 2160 or 2048 x 1080 selected resolution
35.7 x 20.1 mm (41.0 mm on the diagonal): W 3840 x 2160 or 1920 x 1080 selected resolution

Dynamic Range

Canon Log 2: 1600% / 15+ stops
Canon Log 3: 1600% / 14 stops
Wide DR: 800% (at ISO 400)

Image Processor

Type

DIGIC DV7

Lens

Lens Mount

Canon EF Mount. B4 mount lens via adapter accessory (EF or PL)

Lens Magnification factor (for EF Mount lenses, including Cinema Primes)

Full Frame:
5952 X 3140/4096 X 2160/2048 X 1080: x1.00
3840 X2160/1920 X 1080: x1.056
Super 35MM (Crop):
4096 X 2160/2048 X 1080: x1.460
3840 X 2160/1920 X 1080: x1.534
Super 16mm (Crop):
4096 X 2160/2048 X 1080: x2.920
3840 X 2160/1920 X1080: x3.069

Changeable Lens Mount

Yes, User changeable to EF with Cinema Mount or PL

Peripheral illumination correction

YES (dependent on lens used)

ND filter

Up to 10 stops via built in ND filter system (in extended mode)

Focus control

EF Mount: Via lens, wireless control or wired remote (dependent on lens used)
PL Mount: Only Cine Servo lenses

Iris control (EF mount lenses)

Via body, grip, wireless control or wired remote.
1/2-stop, 1/3-stop or FINE control.
Possible to maintain constant F-number during zoom.

Cooke/I Technology Support

Yes (PL Mount only after mount change)

Anamorphic Lens Support

Yes, x2.0/x1.3

Image stabilization system

Optical depending on lens used

Recording

Internal Recording

CFexpress card x2 for Cinema RAW Light or XF-AVC/MXF, SD card for XF-AVC Proxy recording
SD card also used for Photo Storage (1920 x 1080), CP setting transfer and firmware update

Recording time (Cfexpress card, 512GB) Approx.

Cinema RAW Light: 5952 X 3140: 2.1Gbps: 30 Mins
4096 X 2160: 1 Gbps: 65 Mins
2048 X 1080: 250 Mbps 270 Mins
XF-AVC/MXF: 4096 X 2160: 810 Mbps 80 Mins/410 Mbps 165 Mins
2048 X 2160: 310 Mbps 215 Mins/160 Mbps 425 Mins

Recording Formats

Cinema RAW Light (CRM), XF-AVC (MXF)

System Frequency/ Frame Rates

59.94Hz mode (59.94P / 59.94i / 29.97P / 23.98P)
50.00Hz mode (50.00P / 50.00i / 25.00P)
24.00 Hz mode (24.00P)

Cinema RAW Light Bit Rate/Bit Depth (PAL)

5952 X 3140: 50.00P, 2.1Gbps 10-bit/25.00P, 2.1 Gbps 12-bit
4096 X 2160: 50.00P, 1 Gbps 10-bit/25.00P, 1Gbps 12-bit
2048 X 1080: 50.00P, 250Mbps 10-bit/25.00P 250 Mbps 12-bit

XF-AVC Recording Bit Rate/ Sampling (PAL)

4096 X 2160/3840 X 2160: 50.00P YCC 4:2:2 10-BIT 810 Mbps/25.00P YCC 4:2:2 10-bit 410 Mbps
2048 X 1080/1920 X 1080: 50.00P YCC 4:2:2 10-BIT 310 Mbps/25.00P YCC 4:2:2 10-bit 160 Mbps
All Intra Frame

XF-AVC Proxy Recording Bit Rate/ Sampling (PAL) To SD Card

2048 X 1080: 50.00P, YCC 4:2:0 8-bit 35 Mbps/25.00P, YCC 4:2:0 8-bit 24 Mbps Long GOP

Slow/Fast motion

Yes, Cinema RAW Light 5952 x 3140/4096 x 2160: 1 -60 FPS/2048 x1080 (2K Crop) 1 -120FPS
XF-AVC: 4096 x 2160/3840 x 2160 (810/410 Mbps) 1 - 60 FPS (Full Frame/Super 35mm Crop)
2048x1080/1920x1080 1 - 60 FPS (Full Frame/Super 35mm Crop)
1 - 120 FPS (Super 16mm Crop)

Interval Record

Frame Record

Pre Record (cache record)

Yes, 3 seconds

Relay Recording

Yes

Double Slot (simultaneous) Recording

Yes

Scan Reverse

Yes

HD->SD conversion

Photo storage media

SD/SDHC memory card

Photo Recording Size

Approx. 930 KB at 2048x1080; Approx. 880 KB at 1920x1080

System

Wave Form Monitor

Yes. Via MON.1/2, VIDEO or HDMI Terminals (Not available from SDI Out 1 -4)
Line Display/Line and Spot/Line Select/Field Display/RGB Display/YPrPb. HDR PQ and HDR-HLG output supported.

False Colour Display (Exposure Indication)

Yes. Via MON.1/2, VIDEO or HDMI Terminals

Colour Bars

SMPTE, EBU and ARIB colour bars available. See the menu.

Peaking

Peaking 1, Peaking 2 (Colour, Gain, Frequency customisable)

Zebra

Level 1; Level 2; Both

Output via HD-SDI or HDMI

Markers

On/Off selectable: center, horizontal, grid, aspect, safety zone, and rectangular marker. Colour selectable, yellow, blue, green, red, black, gray or white.

EVF

Built- In EVF

Optional EVF Accessory

Yes. OLED Electronic Viewfinder, EVF-V50 or EVF-V70

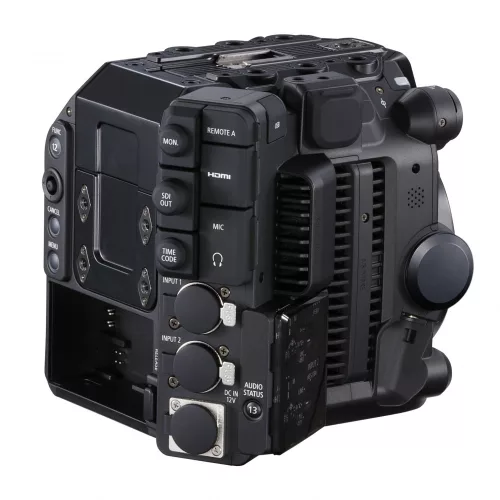

Inputs/Outputs

Audio in

XLR 3-pin connector x2, 3.5 mm stereo mini jack (input only)
Input 1 and 2 on camera body. Additional 2x 3-Pin XLR on optional Expansion Unit EU-V2 (Input 3 and 4)

Headphone output

3.5 mm stereo mini jack (output only, Camera Body).

Video monitor output

MON.: BNC jack, (output only, Camera Body).

HDMI

HDMI connector (type A) (output only, Camera Body).

USB

Yes, Input only, Camera Body. (GP-E2 connection)

SDI output

BNC jack 1 x 12G-SDI Out (output only, Camera Body).

Time code

BNC jack (input/output, Camera Body).

Genlock

Ye with optinal Expansion Unit EU-V1 and EU-V2. BNC jack (input only/also serves as SYNC OUT connector)

Synch

BNC jack (output only/also serves as GENLOCK connector)

Component out

AV terminal

DC Output

Yes, with optiional EU-V2. DC 24V 2A jack Fischer 3-pin jack (output only),
D-Tap connection, 50W maximum

DC input

XLR 4-pin jack

Remote Control Terminal

REMOTE A connector 2.5 mm stereo mini-mini jack (input only)
REMOTE B connector Round 8-pin jack (for RS-422) with optional EU-V1 or EU-V2

Wireless Control Terminal

Yes

Lens terminal

Yes, with optional EU-V2. 12-pin jack

Ethernet terminal

Yes, with optional EU-V1 and EU-V2. Ethernet connector (RJ45) (supports 1000 BASE-T)

IP Streaming

Yes. Via Ethernet connection. Wi-Fi capability TBC) 9 Mbps/4 Mbps:1920 X 1080 (59.94p/59.94i/ 50.00p/50.00i) optional EU-V1 or EU-V2 required

User Viewing LUT input

YES

Video connector

Canon’s proprietary specification (special 13-pin jack) for LM-V2 Monitor or optional EVF-V70 viewfinder or LM-V1 monitoror

Misc.

Tally lamp

Yes

Custom Dial

Yes

Exposure

Exposure metering

Manual exposure determined by shutter setting, iris setting, ISO/gain setting and ND filter setting, Push Auto Iris, Auto Iris

Exposure Compensation

Yes

Auto Exposure mode

Auto Iris with compatible lenses

Push Auto Iris

Yes EF model all compatible lenses, PL Version compatible Canon Cine Servo lenses only with 12-pin connection on optional EU-V2

Exposure Lock

Auto Gain Control setting

Yes

ISO Sensitivity

1-Stop Display: [100], 160(*), 200, 400, 800, 1600, 3200, 6400, 12800, 25600, [51200,102400]
[---] Displayed when ISO speed expansion is ON. (*) Displayed when ISO speed expansion is OFF
1/3 Stop Display: [100,125], 160, 200, 250, 320, 400, 500, 640, 800, 1000, 1250, 1600, 2000, 2500,
3200, 4000, 5000, 6400, 8000, 10000, 12800, 16000, 20000, 25600,
[32000,40000,51200,64000, 80000,102400]
[---] When ISO speed expansion is ON.

Auto Focus System (EF Mount)

Dual Pixel CMOS AF, Contrast AF

AF Frame Sizes (EF Mount)

Large; size equivalent to approx. 20% (vertical) x 25% (horizontal) of the image display range
Small; size equivalent to approx. 20% (vertical) x 8% (horizontal) of the image display range
Selectable AF point over 80% (approx.) of sensor

Auto Focus Modes (EF Mount)

One-Shot AF, Continuous AF and AF-Boosted MF. All modes take effect when the AF/MF switch of the EF lens is at the AF setting.
One-Shot AF, Continuous AF, AF-Boosted MF
