Canon XEED 4K6021Z 4K-Laserprojektor (3693C003)

Article No.: 3693C003-4549292146318

Canon XEED 4K6021Z 4K-Laserprojektor (3693C003)

Article No.: 3693C003-4549292146318

Out of stock

Light, bright and reliable: the ultimate in 4K laser projection

Compact and light, this 4K laser projector with display port delivers unrivalled image quality plus a choice of seven interchangeable lenses. A wide range of features along with a laser light source offers maintenance free, 24/7 reliability.

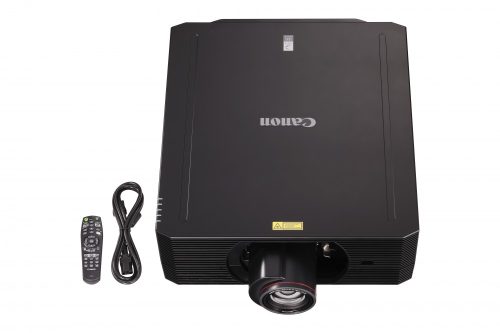

What’s in the box:

Canon XEED 4K6021Z
Remote Control Unit RS-RC07
AAA Alkaline Batteries x2
AC Mains Power Cable
Warranty card

Csatoló felület

HDMI, DP, HDBaseT, 3,5mm Jack, USB, Wi-fi, RS-232

Képméretarány

17:9

Natív felbontás

4096×2160 (4K)

Optikai Zoom

1.76 x

Fényerő

6 000 lumen

Kontrasztarány

4000:1

Vetítési távolság

0.45 – 86 m

Gift

Info

Colour

Beépített hangszóró

nincs

Bemenetek

HDMI, DP, HDBaseT, 3, 5mm Jack, USB, Wi-fi, RS-232

Delivery time

Variable - Contact us!

Article No.

3693C003-4549292146318

Details

Specifications in detail

Panel

Type

LCOS reflective display, TFT Active Matrix

Size and Number

0.74” diagonal, 3 panels

Aspect Ratio

approx 17:9

Native Resolution

4096 x 2160 (4K), 8,847,360 pixels

OPTICS

Light Source Type

Blue laser diodes and yellow phosphor

Lens F Number and Focal Length

F2.1 - F2.4; f=22.7 – 39.8mm (4K Lens)

Zoom Magnification and Control

1.76x Motorised (4K Lens)

Focus control

Motorised

Lens Mount

Spigot type

Lens Shift

Vertical: +/-73%*

Horizontal: +/-11%*

IMAGE AND AUDIO

Colour Brightness

6,000 lumens**

Colour Brightness Quiet mode 1 & 2

3,600 / 2,400 lumens**

Brightness Uniformity

80% or more (When 4K lens used)

Native Contrast Ratio

4000:1 (When iris is set to close 9)

Dynamic Contrast Ratio

4000:1 (When iris is set to close 9)

Projection Distance Coverage

0.45m – 86.0m (Depending on lens)

Screen size

40” - 600” (86 x 54cm - 1292 x 808cm Depending on lens)

Distance for 100"

2.0 - 5.3m (4K lens)

Projection Ratio

1.34:1 - 2.35:1 (4K lens)

Digital Zoom Magnification

1.76x (4K lens)

Keystone Correction Range

Vertical & horizontal: +/-20°

Digital image input

640x480, 720x480, 720x576, 800x600, 1280x720, 1024x768, 1366x768, 1440x900, 1280x1024, 1920x1080, 2048x1080, 2560x1080, 1920x1200, 2048x1200, 2560x1440, 2560x1600, 3840x2160, 4096x2160

DisplayPort 1x2

1280x480, 3840x2160, 4096x2160

HDBaseT input

Equivalent to the digital image input

Network communication

HDBaseT (100BASE-TX)

Built-in Speaker

Not Supplied

PORTS AND CONNECTORS

Digital image input

HDMI x 2

Digital image input

DP x 2

Digital Video and Audio Input

HDMI, DP & HDBaseT

HDBaseT input

RJ-45 (HDBaseT) Image, audio, control signal & network

Audio Input

3.5mm stereo mini-jack

DC 12v (max 0.35A)

3.5mm mini-jack

Wired Remote Control

3.5mm mini-jack

USB Port

USB Type A (Firmware update)

Service Port / Projector Control

Mini D-Sub 9-pin / RS-232

Network Port

RJ-45 HDBaseT input (100BASE-TX)

Wi-Fi transmission standard

IEEE 802.11b / g / n

Wi-Fi transmission distance

Up to 25m (no electric wave interference / clear view to access point)

Wi-Fi encryption

Open / WEP / WPA-PSK TKIP / WPA-PSK AES / WPA2-PSK TKIP / WPA2-PSK AES

Wi-FI Connection Modes

Infrastructure mode
PjAP (Projector Accss Point) mode

Wi-Fi certification and WPS

Acquired. Push Button Method (PBC) & PIN code method (PIN)

MECHANISMS

Elevation Mechanism

Four rotary feet, extension length 14.6mm.
Maximum angle of elevation +/-1.8°

RATINGS

Dimensions (W x H x D)

480mm x 196mm x 545mm (excluding lens)

Weight

19kg (without lens)

Power Source

100V - 240V AC, 50/60Hz

Power Consumption

Normal: 625 W
Standby: 0.25-1.6W (depending on HDBaseT and network settings)

Heat Dissipation

2131 BTU/h

Light source life

20,000 / 40,000 hours

Noise Level (normal / quiet modes)

38 / 33 / 29 dB

Operating Environment

0°C to +45°C (20%RH - 85%RH)

Storage Environment

-20°C to +60°C

Warranty

5 years (12,000 hours)

All data is based on Canon standard testing methods except where indicated

Subject to change without notice.

* When using RS-SL07RST 4K lens, normal mode. In expanded mode, (optical performance not guaranteed) V: +/-104%, H: +/-25%.

Maximum lens shift in both directions is not possible.

** When Image mode is set to presentation / RS-SL07RST 4K lens

HDBaseT Transmitter operation confirmation chart

A transmitter and a receiver is required to create an HDBaseT system. Normally, HDBaseT entails an external receiver and transmitter, and if these devices are made by the same manufacturer, their performance is usually guaranteed. However, because the projector has a built-in receiver, the receiver and transmitter used will be made by different manufacturers. For this reason, in the list below, confirm that the transmitter you are using works with the projector before use. (Canon does not guarantee operations)

Manufacturer	Model name	Image	Audio	LAN	Serial
Crestron	DM-TX-4K-202C	Yes (4K compatible)	Yes	Yes	No
Crestron	DM-TX-401C	Yes	Yes	Yes	No
AMX	AVB-TX-MULTI-DXLINK	Yes^*1	Yes	Yes	No
Kramer	TP-780Txr	Yes (4K compatible)	Yes	Yes	Yes
Kramer	TP-582T	Yes (4K compatible)^12	Yes	Yes	Yes
Extron^*3	XTP T USW 103 4K	Yes (4K compatible)	Yes	Yes	No
Gefen	GEF-HDCAT5-ELRPOL	Yes (4K compatible)^12	Yes	Yes^*4	No
Atlona	AT-HDTX-RSNET	Yes (4K compatible)^12	Yes	Yes	-
CYP	PU-507-KIT	Yes (4K compatible)^12	Yes	Yes	Yes

* Yes: Available, No: Not available, -: No function in Tx
4K compatible: 4096x2160 signals and 3840x2160 signals compatible
*¹: When some input devices are connected, the image may not be displayed correctly
*²: When some input devices are connected, the image may not be displayed with the expected resolution
*³: Setting Extron XTP "On" is required
* ⁴: Standby power settings should be set to “Normal.”
