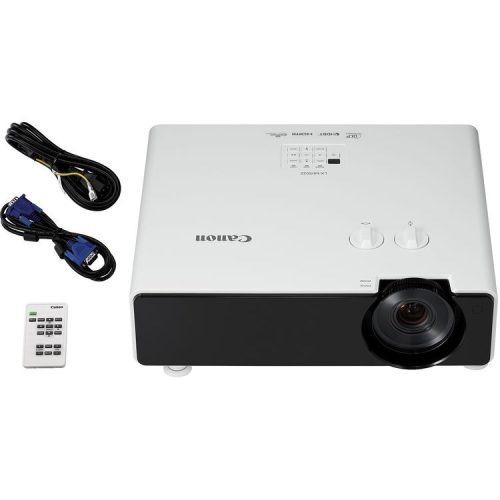

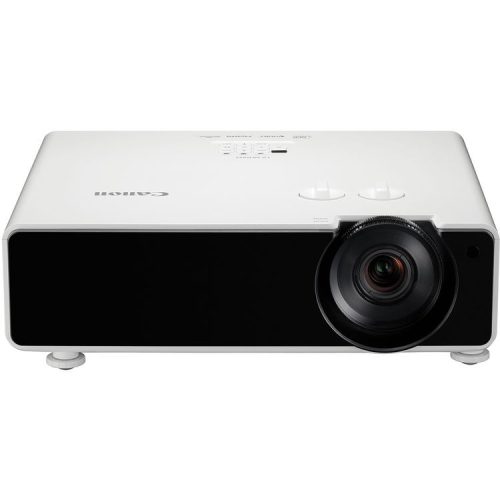

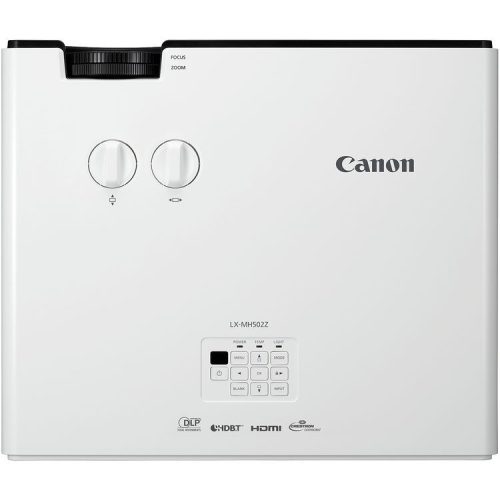

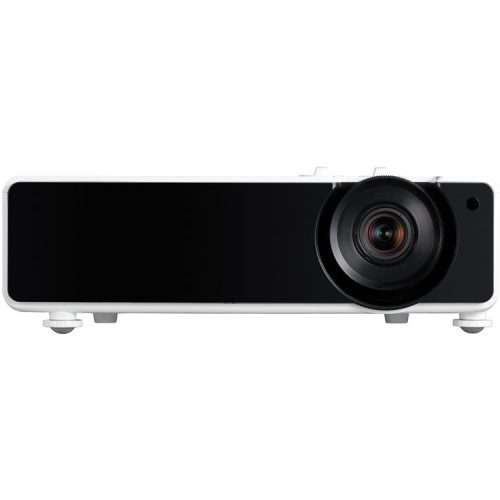

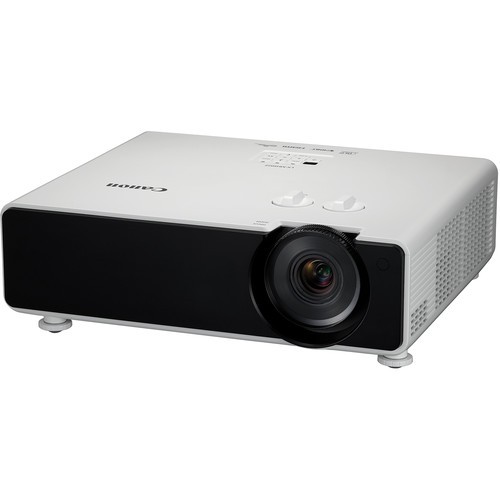

Canon LX-MH502Z 4K UHD laser projector (3576C003)

Name: Canon LX-MH502Z 4K UHD laser projector (3576C003)
SKU: 3576C003-4549292135961
Price: 2133000 HUF
Availability: OutOfStock

Article No.: 3576C003-4549292135961

Canon LX-MH502Z 4K UHD laser projector (3576C003)

Article No.: 3576C003-4549292135961

Out of stock

1 679 528 HUF+TAX=2 133 000 HUF

Bonus point : 21 330 HUF

A compact and bright 4K UHD installation laser projector

For businesses looking for superior colour quality, with low total cost of ownership, this lightweight installation projector offers 5,000 lumens, HDBaseT connectivity and 4 way pixel shift technology to deliver truly stunning 4K UHD results.

Benefits:

Low total cost of ownership
Easy to install and operate
High image quality and brightness
Powerful and accurate
Simple to use and maintain

Képméretarány

16:9

Natív felbontás

3840*2160 (4K)

Optikai Zoom

1.6 x

Fényerő

5 000 lumen

Kontrasztarány

50000:1

Vetítési távolság

1.8 – 9.58 m

Gift

Info

Beépített hangszóró

van

Bemenetek

mini D-SUB (15pin), mini D-SUB (9pin) HDMI, 3, 5mm jack, USB, HDBase-T, RJ-45

Delivery time

Variable - Contact us!

Article No.

3576C003-4549292135961

Details

Specifications in detail

Panel

Type

DLP™ chip

Size and Number

0.47” diagonal, Single chip

Aspect Ratio

16:9

Resolution

3840 x 2160 (4K shift function ON)

Native Resolution

1920 x 1080 Full HD (4K shift function OFF)

OPTICS

Light Source Type

Blue laser diode & yellow phosphor

Lens F Number and Focal Length

F14.3-22.9mm; f=1.81-2.10mm

Zoom Magnification and Control

1.6x Manual

Focus control

Manual

Lens Shift

Vertical: +/-60%* Manual*
Horizontal: +/- 23% Manual

IMAGE AND AUDIO

Brightness

5000 lumens (3750 Eco Mode) Presentation Mode

Brightness Uniformity

80%

Dynamic Contrast Ratio

50,000:1 (Fully white : fully black / presentation mode)

Projection Distance Coverage

1.8m – 9.58m (2.99m-4.79m for 100" image)

Screen size

60”–300” (1.33m x 0.75m – 6.64 x 3.74m)

Projection Ratio

1.36-2.18

Keystone Correction Range

Vertical: +/-30° Manual.

Digital PC Input

3840x2160** / WUXGA / WSXGA+ / UXGA / SXGA+ / WXGA+ / FWXGA / WXGA / SXGA / XGA / SVGA / VGA

Analogue PC Input

WUXGA / WSXGA+ / UXGA / SXGA+ / WXGA+ / FWXGA / WXGA / SXGA / XGA / SVGA / VGA / MAC

Digital Video Input

2160p / 1080p / 1080i / 720p / 576p / 480p / 576i / 480i

HDBaseT input

Image, Audio, control, network (100BASE-TX)
3840x2160** / WUXGA / WSXGA+ / UXGA / SXGA+ / WXGA+ / FWXGA / WXGA / SXGA / XGA / SVGA / VGA

Display Modes

Presentation, Standard, sRGB, Cinema, DICOM, User 1 & 2

Built-in Speaker

10W monaural

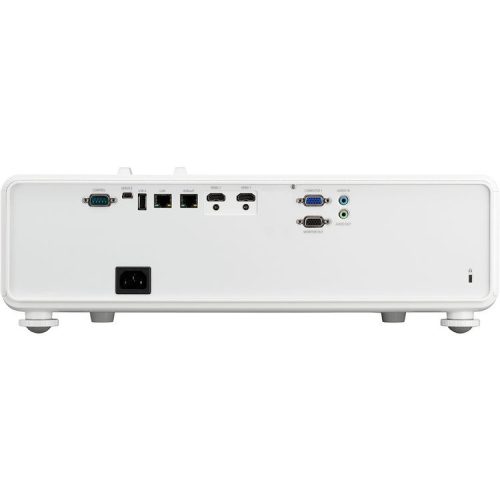

PORTS AND CONNECTORS

Analogue PC Input

Mini Dsub 15

Analogue PC Output (Monitor out)

Mini Dsub 15

Digital PC / Digital Video

HDMI 1

Digital PC / Digital Video

HDMI 2

Audio Input

3.5mm stereo mini-jack x 1

Audio Output

3.5mm stereo mini-jack (variable level)

USB

Type A 5V/2A

Mini USB Service Port

Type B (for firmware update)

Projector Control

Mini D-Sub 9-pin (RS232c)

Network Port 1

HDBase-T (4K 30p)

Network Port 2

RJ-45 (100Base-TX / 10Base-T)

Built-in Speaker

10W monaural

MECHANISMS

Front Elevation Mechanism

4 x rotary feet (up to 1.9° elevation angle, front, rear, left and right)

RATINGS

Dimensions (W x H x D)

450mm x 154mm x 379mm (including protrusions)

Weight

9.3kg

Power Source

100-240 V AC, 50/60Hz

Power Consumption

Modes – Normal: 510W / Eco: 380W
Standby: (LAN on/off) 2W / 0.5W

Light source life

Normal: 20,000H

Noise Level

Normal / Eco: 39/37 dB (4K shift ON)
Normal / Eco: 37/35 dB (4K shift OFF)

Operating Environment

0° to 40°C (RH: 10-90%)

Storage Environment

-10°C to +65°C

Warranty

5 years (12,000 hours)
Terms and conditions apply

*When horizontal is in centre position

**With a native resolution of 1920 x 1080 each pixel is divided into 4 pseudo pixels using a dedicated image algorithm and a 4K shift actuator that redirects the pixel light to appear in 4 places. The resulting output image is 4K UHD resolution: 3840 x 2160 pixels.

Class 1 Laser Product (Complies with ENC60825-1: 2014)

Class 3 Laser Product (Complies with IEC60825-1: 2007)

All data is based on Canon standard testing methods except where indicated

Subject to change without notice.
