Versatile installation projectors with 20,000-hour laser life
For professionals looking for top quality installation laser projectors for commercial, medical and education use, the Canon XEED LASER range offers a new centrally-positioned lens design with near maintenance free laser life, HDBaseT connectivity plus a choice of six lenses.

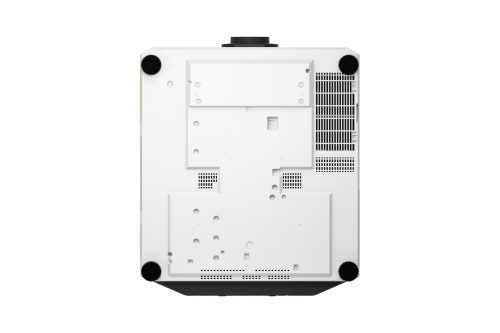

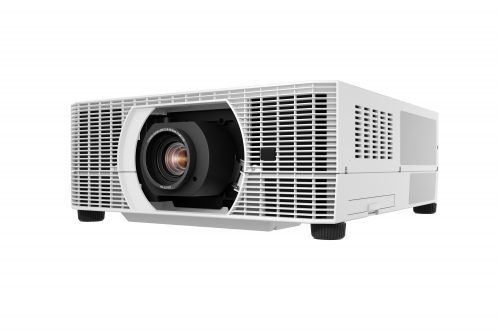

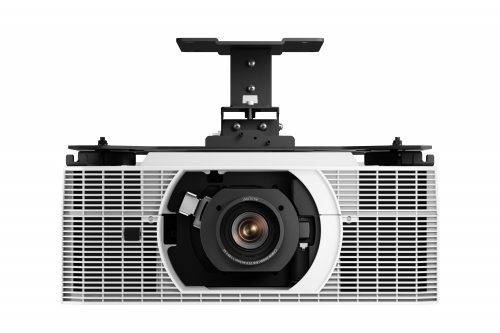

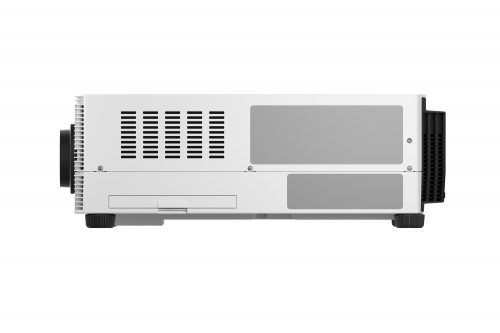

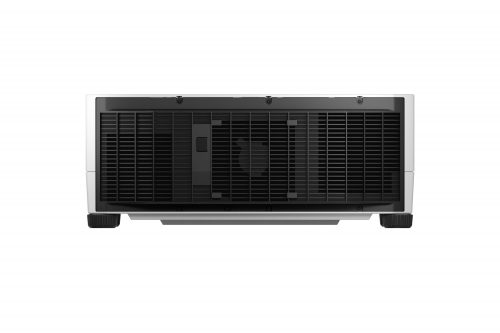

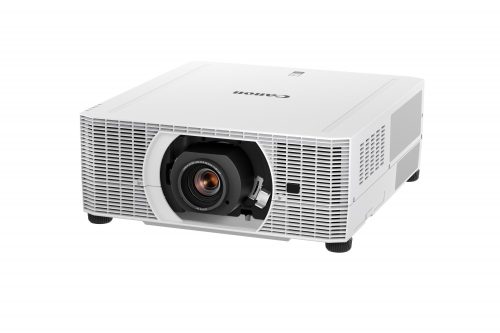

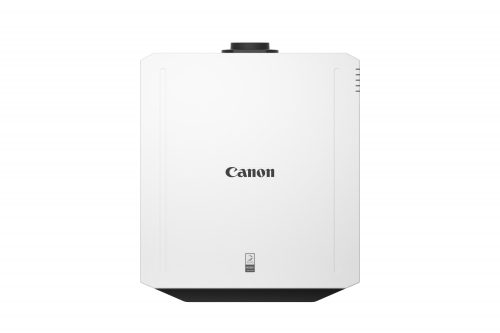

Advanced 7,000 lumen laser projector for professional installations in business, education and medical environments.
Benefits:
Adjustable power
HDR projection
Easy connection
Easy installation
LCOS reflective display, TFT Active Matrix
0.71” diagonal, 3 panels
16:10
1920 x 1200 (WUXGA), 2304000 pixels
Blue Laser Diode and Yellow Phosphor
F1.89 – F2.65; f=23.0 – 34.5mm (Standard Lens)
1.5x Motorised (Standard Lens)
Motorised
Vertical: -15% to +55%, Motorised (Standard lens) Horizontal: +/-10%, Motorised
XEED WUX5800Z: 5,800 lumens XEED WUX6600Z: 6,600 lumens XEED WUX7000Z: 7,000 lumens
XEED WUX5800Z: 4,060 / 2,900 lumens XEED WUX6600Z: 4,620 / 3,300 lumens XEED WUX7000Z: 4,900 / 3,500 lumens
90% (Standard lens)
4000:1 (full on / full off) when iris is set to close 9
0.44m – 89.0m (Depending on lens)
40” - 600” (86 x 54cm - 1292 x 808cm Depending on lens)
1.49:1 - 2.24:1 (Standard lens)
1x – 12x
Vertical: +/-20° Horizontal: +/-20°
WUXGA / UXGA / WSXGA+ / SXGA+ / WXGA+ / FWXGA / WXGA / SXGA / XGA / SVGA / VGA
1080p / 1080i / 720p / 576p / 480p
1080p / 1080i / 720p / 576p / 576i / 480p / 480i
Equivalent to the input of digital RGB and digital video
JPEG still image
NMPJ - 'Network Multiprojection' screen transfer (Canon protocol)
1W RMS, Monaural
DVI-I 29-pin
HDMI (incl Deep Colour) DisplayPort
RJ-45 (HDBaseT) Image, audio, control signal & network
Mini D-Sub 15-pin (Component via optional adaptor cable)
3.5mm stereo mini-jack
3.5mm stereo mini-jack (variable level)
USB Type A
Mini D-Sub 9-pin
RJ-45 HDBaseT input (1000BASE-T / 100BASE-TX / 10BASE-T)
IEEE 802.11b / g / n
Up to 25m (no electric wave interference / clear view to access point)
Open / WEP / WPA-PSK TKIP / WPA-PSK AES / WPA2-PSK TKIP / WPA2-PSK AES
Infrastructure mode PjAP (Projector Accss Point) mode
Acquired. Push Button Method (PBC) & PIN code method (PIN)
Four rotary feet, extension length 14.6mm. Maximum angle of elevation +/-1.8°
480mm x 196mm x 545mm (excluding protrusions)
17kg (without lens)
100V - 240V AC, 50/60Hz
XEED WUX5800Z: 485 W XEED WUX6600Z: 525 W XEED WUX7000Z: 540 W Standby: 0.3-2.0W (depending on HDBaseT and network settings)
Quiet mode 1: 394 W Quiet mode 2: 368 W
XEED WUX5800Z: 1654 BTU/h XEED WUX6600Z: 1790 BTU/h XEED WUX7000Z: 1841 BTU/h Power save 1: 1343 BTU/h Power save 2: 1254 BTU/h
20,000 hours
XEED WUX5800Z: 35 / 32 / 29 dB XEED WUX6600Z: 36 / 32 / 29 dB XEED WUX7000Z: 36 / 32 / 29 dB
0°C to +45°C (20%RH - 85%RH)
-20°C to +60°C
5 years(Terms and conditions apply)
