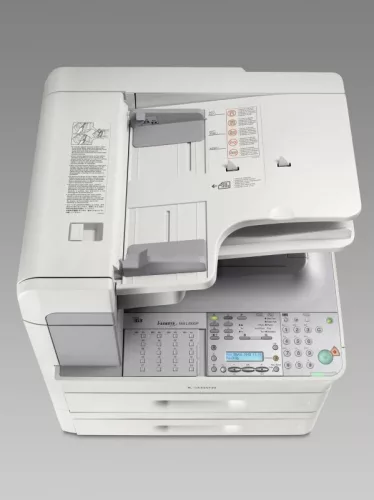

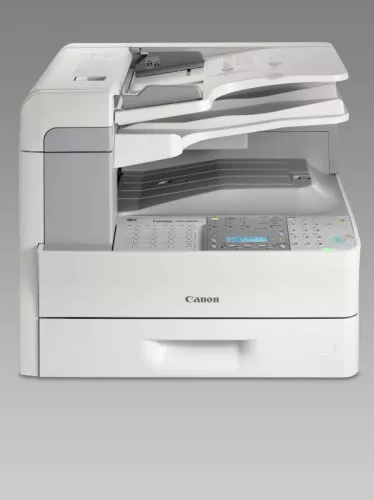

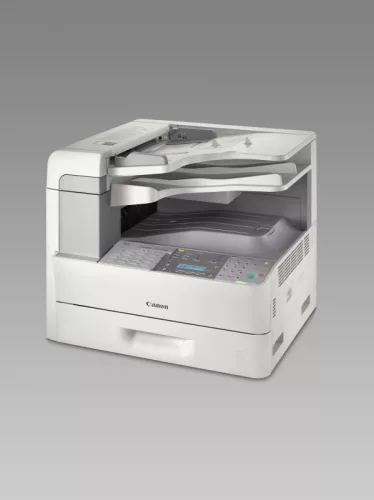

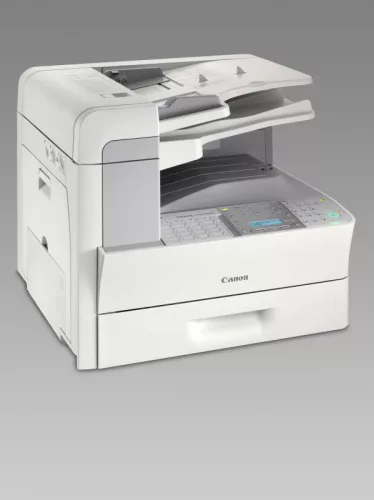

Robust, network laser fax with fax, print, copy and optional SEND functionality
Fast, efficient faxing
This robust fax offers the ultimate in faxing efficiency for large enterprises. A Super G3 fax modem transmits documents at 3 seconds per page* so phone costs are reduced. Multiple faxes can be received without blocking the line saving more time.
Printing and copying
Benefit from professional laser printing and copying at 22 cpm/ppm (A4). There’s a fast First Copy Out Time of Less than 13 seconds and virtually zero warm-up time from sleep mode with Quick First Print performance.
Automatic duplexing and document feeding
Automatic double-sided faxing, copying and printing increase productivity and cut paper costs. The 50-page Duplex Automatic Document Feeder can scan at a rapid rate of 45 images per minute (A4). It is even capable of scanning A3 documents (simplex only).
Built-in networking
Built-in networking brings productive network printing and PC faxing to all connected users on your network. A Remote User Interface enables easy monitoring of machine status. PCL5e/6 support ensures full compatibility with existing PCL printing environments.
Optional SEND functionality
With optional SEND functionality the FAX-L3000IP acts a central communication hub for sharing office documents digitally, boosting workflow efficiency and productivity. Users can scan colour documents direct to email, network Server (SMB and FTP) or Internet Fax. Fax forwarding allows automatic or conditional forwarding of faxes to other destinations.
Large paper supply
The standard paper supply consists of a 500-sheet cassette and 100-sheet multipurpose tray. An optional 500-sheet cassette takes this up to a total of 1100 sheets for demanding heavy duty use.
Security and cost control
Department and User ID Management restrict machine use to authorised staff only and let you keep a tight check on all costs. Each department and user can be assigned a different ID or password, ensuring complete security.
Risk-free faxing
If paper or toner run out, the 1500 page* standard memory safely stores all incoming documents for printing out later. In the event of a power failure, memory back-up stores faxes and other data for up to three hours.
Speed dialling
Dialling is quick and simple, with 80 one-touch speed dials and 200 coded dials (500 maximum)** to store all regular contact numbers.
* based on ITU-T Standard Chart No. 1
** with optional SEND kit
|
Product Specification
|
|
FAX UNIT TYPE
|
|
Type
|
Standalone facsimile with optional upgrades
|
|
Compatibility
|
Group 3
|
|
Applicable line
|
Public Switched Telephone Network (PSTN)
|
|
Modem speed
|
33.6K bps ( Super G3 )
|
|
Print technology
|
Laser beam printing
|
|
Scanner type
|
Duplex Sheet fed
|
|
|
|
FAX SCANNING FEATURES
|
|
Automatic document feeder
|
50 sheets (80 g/m² paper) A4, 20 sheets (80 g/m² paper) A3,
|
|
Document size
|
Max. 297 x 432 mm (Max. 630 mm)
Min. 148 x 148 mm (W x L)
|
|
Effective scanning width
|
A3(297mm)
|
|
Scanning speed
|
45 images per minute
|
|
Fax resolution
|
FINE: 203 pels/in. x 196 lines/in. (8 pels/mm x 7.7 lines/mm)
PHOTO: 203 pels/in. x 196 lines/in. (8 pels/mm x 7.7 lines/mm)
SUPER FINE: 203 pels/in. x 392 lines/in. (8 pels/mm x 15.4 lines/mm)
ULTRA FINE: 406 pels/in. x 392 lines/in. (16 pels/mm x 15.4 lines/mm)
STANDARD: 203 pels/in. x 98 lines/in. (8 pels/mm x 3.85 lines/mm)
|
|
Image processing system
|
UHQ (Ultra High Quality)
|
|
Halftone
|
256 greyscales
|
|
|
|
FAX PRINTING FEATURES
|
|
Printing method
|
Laser beam printing
|
|
Print speed
|
22 pages per minutes (A4)
|
|
Print resolution
|
600 x 600dpi, 1200 x 600 dpi (enhanced)
|
|
Smoothing
|
Yes 1200 x 600 dpi (enhanced)
|
|
Paper capacity
|
500 sheets paper cassette
|
|
Optional cassette
|
500 sheets paper cassette
|
|
Multifeeder
|
100 sheet auto sheet feeder
|
|
Print cartridge
|

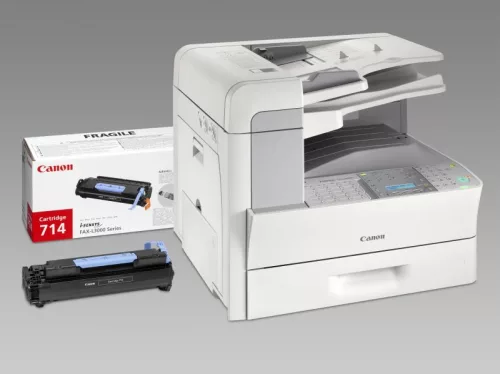

Cartridge 714
|
|
Print cartridge yield
|
4500 pages (Based on 5 %)
|
|
Page collated print( on reception )
|
Yes (Face down print)
|
|
Paper output tray capacity
|
100 sheets (80 g/m² paper)
|
|
Printing width
|
216mm
|
|
Toner save mode
|
Yes
|
|
Auto image reduction on reception
|
Yes ( 100 to 50%, 70%)
|
|
|
|
TRANSMISSION AND RECEPTION FEATURES
|
|
Transmission speed
|
3 seconds per page with 33.6K bps modem*
|
|
Compression method
|
MH, MR, MMR, JBIG
|
|
Direct transmission
|
Yes
|
|
Memory transmission
|
Yes
|
|
Quick memory transmission
|
Yes
|
|
FAX memory
|
1500 pages*
Yes, approx. 3 hours
|
|
Memory backup
|
3 hour
|
|
Optional memory
|
Only as part of optional SEND kit
|
|
Memory reception
|
Yes
|
|
Dual access
|
Yes
|
|
Error correction mode(ECM)
|
Yes
|
|
Delayed transmission
|
Yes
|
|
Sequential broadcast
|
501 Locations
|
|
Polling Transmission
|
No
|
|
Reception
|
No
|
|
Sub-address transmission
|
No
|
|
Batch transmission
|
No
|
|
Error re-transmission
|
Yes
|
|
Relay broadcasting command
|
No
|
|
Relay broadcast
|
No
|
|
No. of boxes
|
No
|
|
Fax transfer
|
Yes
|
|
Fax retrieval( Bulletin board )
|
No
|
|
|
|
SECURITY AND MANAGEMENT FEATURES
|
|
Password user restriction
|
Yes
|
|
Direct mail prevention
|
Yes
|
|
Confidential transmission
|
No
|
|
Confidential mail box
|
No
|
|
No. of boxes
|
No
|
|
Forced memory reception
|
Yes
|
|
System management password
|
Yes
|
|
Usage management by code
|
Yes
|
|
Reports
|
1-TOUCH LIST, CODED DIAL LIST, GROUP DIAL LIST, USER'S DATA LIST, DEPT. INFO LIST, ACTIVITY REPORT, TX/RX REPORT, FORWARDING CONDITIONS LIST
|
|
Transmission header
|
Yes
|
|
Reception footer
|
Yes
|
|
Verification stamp
|
Yes (Option)
|
|
|
|
TELEPHONY FEATURES
|
|
One touch dials
|
80 Locations
|
|
Coded dials
|
420 dials
|
|
Group dials
|
499 dials
|
|
Program dial
|
Yes
|
|
Redial
|
Yes(Automatic and Manual)
|
|
Dial search
|
Yes
|
|
FAX/TEL auto switch
|
Yes
|
|
Answering machine hook up
|
Yes
|
|
Remote reception
|
Yes
|
|
On hook key
|
Yes
|
|
Hold key
|
No
|
|
Built in answering machine
|
No
|
|
Speaker phone
|
No
|
|
Caller ID
|
No
|
|
Telephone handset
|
option
|
|
Type
|
(Handset and Cradle) Tel 6
|
|
|
|
COPIER FEATURES
|
|
Memory copy
|
Yes
|
|
Direct copy
|
Yes
|
|
Copy resolution
|
600 x 600dpi
|
|
Copy speed (Mono)
|
22 copies per minute
|
|
Multiple copy
|
Up to 99 copies
|
|
Reduction
|
50%, 70%
|
|
Enlargement
|
141%,145%
|
|
|
|
OTHER FEATURES
|
|
Internet FAX function (LAN type)
|
Yes
|
|
Energy saver key
|
Yes
|
|
Others
|
SEND functionality: Scan to FTP, SMB and E-mail. Universal SEND, Less than 13 secs FCOT, Less than 19 secs warm-up time from Power ON.
|
|
|
|
GENERAL FEATURES
|
|
Dimensions without trays(Wx Dx H)
|
520 mm x 481 mm x 452 mm
|
|
Dimensions with trays(W x D x H)
|
520 mm x 481 mm x 580 mm
|
|
Installation space(with trays & handset)
|
1097 mm x 984 mm (W x D)
|
|
Weight
|
Approx. 24 Kg
|
|
Power source
|
AC 200-240V 50-60Hz
|
|
Power consumption
|
Max:1010w
Standby: 17W
Sleep: 3w, (3.5w with SEND kit)
|
|
Acoustic Noise Levels
|
Standby: under 25 dB(A)
Operation: under 66.7 dB(A)
|
|
|
|
OPTIONS
|
|
Items
|
COLOUR SEND KIT M1
FXL-CST FEEDER 8(A4) – 500 sheet cassette
Tel 6- Telephone handset with cradle
Verification Stamp Unit
|
|
|
|
PRINTER FEATURES
|
|
Printer type
|
Laser Beam Printing
|
|
Printer speed
|
22 pages per minutes (A4)
|
|
Interface
|
USB & Network Interface card
|
|
PDL
|
PCL 5e, PCL 6 & UFRII-LT
|
|
Memory
|
Standard: 128 MB(Shared)
Optional SEND kit includes 128MB DDR & 128MB USB memory
|
|
Print resolution
|
600 x 600dpi
1200 x 600 dpi (enhanced)
|
|
Smoothing
|
Yes: 1200 x 600 dpi (enhanced)
|
|
Toner save
|
Yes
|
|
Paper sizes
|
LTR, LGL, A4, B5, A5, Executive, Envelope (COM10, Monarch, DL,ISO-C5) TBC
|
|
Duplex (Option)
|
Yes built-in
|
|
Supplied Drivers
|
Print, PC Fax
|
|
Printer
|
Windows 98/ Me/ 2000/ XP/ Server 2003/ Vista
Mac OS X 10.2.8 to 10.5.x (Web distribution only)
Linux (Web distribution only& English driver only)
|
|
Fax
|
Windows 98/ Me/ 2000/ XP/ Server 2003/ Vista
Mac OS X 10.2.8 to 10.5.x (Web distribution only, TX only)
|
|
|
|
NETWORK FEATURES
|
|
Type
|
Ethernet (10BaseT/100BaseT)
|
|
Connection type
|
RJ45
|
|
Network protocols
|
TCP/IP, IPX/SPX
|
|
Others
|
SEND: Scan to email, FTP, SMB and Internet Fax, Universal SEND, Remote User Interface
Canon's E-maintenance service compatiblity
|
|
|
|
|
|
*based on ITU-T Standard Chart No.1
|
