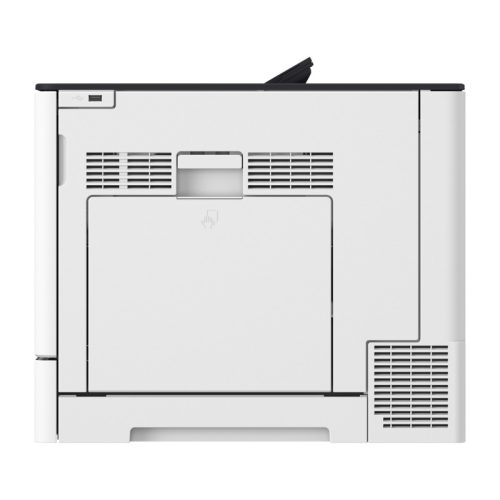

Canon i-SENSYS LBP664Cx laser printer (3103C001)

Single sided : Up to 27 ppm (A4)
Up to 49 ppm(A5-Landscape)
Double sided : Up to 24.5 ipm (A4)

Colour laser beam printing

Up to 600 x 600 dpi

Up to 1200 x 1200 dpi

Approx. 13 seconds or less from power on

Colour approx.: 8.6 seconds or less
Mono approx.: 7.7 seconds or less

750 - 4,000 pages per month

Max. 50,000 pages per month¹

5 mm-top, bottom, left and right

LBP663Cdw:
Secure Print
Print from USB memory key (JPEG/TIFF/PDF)
Google Cloud Print Ready
iOS: AirPrint, Canon PRINT Business app
Android; Mopria certified, Canon Print Service Plug-in, Canon PRINT Business app

LBP664Cx:
Secure Print
Print from USB memory key (JPEG/TIFF/PDF)
Barcode Print²
Touch & Print (NFC)
Google Cloud Print Ready
iOS: AirPrint, Canon PRINT Business app
Android; Mopria certified, Canon Print Service Plug-in, Canon PRINT Business app

250-sheet cassette
50-sheet multi-purpose tray

550-sheet cassette

150-sheet

Plain paper, Recycled paper, Heavy Paper, Thin paper, Colour paper, Glossy paper, Label, Post card, Envelope

Cassette (Standard):
A4, A5, A5 (Landscape), B5, Legal, Letter, Executive, Statement,
OFFICIO, B-OFFICIO, M-OFFICIO, GLTR, GLGL, Foolscap, 16K, Post card,
Envelop (COM10, DL, C5), Custom sizes: Min. 100 x 148 mm Max.
216.0 x 355.6 mm.

Multi-purpose tray:
A4, A5, A5 (Landscape), B5, Legal, Letter, Executive, Statement,
OFFICIO, B-OFFICIO, M-OFFICIO, GLTR, GLGL, Foolscap, 16K, Post card,
Indexcard, Envelope (COM10, DL, C5, Monarch),
Custom sizes: Min 76.2 x 127 mm Max.216.0 x 355.6 mm.

Cassette (Optional):
A4, A5, B5, Legal, Letter, Executive, Statement, OFFICIO, B-OFFICIO,
M-OFFICIO, GLTR, GLGL, Foolscap, 16K, Post card, Envelop (COM10, DL, C5),
Custom sizes: Min. 100 x 148 mm Max. 216.0 x 355.6 mm.

Cassette (standard and optional): 60 to 163 g/m² (Up to 200 g/m² with Glossy paper) Multi-purpose tray: 60 to 176 g/m² (Up to 200 g/m² with Glossy paper)

Automatic Cassette (standard and optional):
A4, B5, Legal, Letter, Executive, OFFICIO, B-OFFICIO, M-OFFICIO, GLTR,
GLGL, Foolscap, 16K
Custom size - Min. 176 x 250 mm Max.
215.9 x 355.6 mm 60 to 200 g/m²

220-240V (±10%) 50/60Hz (±2Hz)

Maximum: Approx. 1,380W or less
Active printing: Approx. 470W
Standby: Approx. 17.0W or less
Sleep: Approx. 0.6W or less
Typical Electricity Consumption (TEC)³: 1.0 kWh/week
For detailed information relating to Lot26 regulation, please go
to: http://www.canon-europe.com/For_Work/Lot26/index.aspx

Sound power*
Active: Simplex 63 dB or less / Duplex 64 dB or less
Standby: 42 dB or less

Sound pressure*
Active: Simplex 48 dB / Duplex 49 dB
Standby: 28 dB

* Declared noise emission in accordance with ISO 9296

LBP663Cdw: 437 mm x 469 mm x 313 mm
LBP664Cx: 476 mm x 469 mm x 379 mm

LBP663Cdw: Approx. 20.7 kg LBP664Cx: Approx. 21.2 kg

Temperature: 10 to 30ºC (50 to 86ºF) Humidity 20 to 80% RH (no condensation)

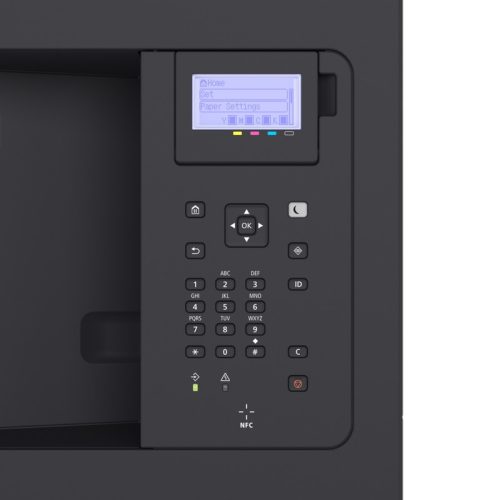

LBP663Cdw; 5 Line LCD, 3 LED (Job, Error, Energy saver), Buttons, 10-key numeric keypad
LBP664Cx: 12.7 cm LCD Colour Touch Screen

800MHz x 2

1GB

UFRII, PCL5c⁴, PCL6, Adobe® PostScript

LBP663Cdw: 45 PCL fonts, 136 PS fonts
LBP664Cx: 93 PCL fonts, 136 PS fonts

USB 2.0 Hi-Speed, 10BASE-T/100BASE-TX/1000Base-T, Wireless 802.11b/g/n, Wireless Direct Connection

LBP663Cdw:
Remote User Interface (RUI),
Department ID Management,
Toner Status Tool,
iW Management Console: Server-based software for centralised management of a fleet of devices
eMaintenance: embedded RDS allows remote eMaintenance services such as meter capture,
automatic consumables management and remote diagnostics.

LBP664Cx:
Remote User Interface (RUI),
Department ID Management,
Toner Status Tool,
iW Management Console: Server-based software for centralised management of a fleet of devices
eMaintenance: embedded RDS allows remote eMaintenance services such as meter capture,
automatic consumables management and remote diagnostics.
Universal Log-in Manager / uniFLOW online / uniFLOW online Express / uniFLOW compatibility
Application Library

Windows® 10 / Windows® 8.1 / Windows® 7 / Server® 2016 / Server® 2012R2 / Server® 2012 /
Server® 2008R2 / Server® 2008
Mac OS X version 10.9.5 & up /Mac OS 10.14 & up
Linux⁵/Citrix

Cartridge 055 Black (2,300 pages*)**
Cartridge 055H Black (7,600 pages*)**
Cartridge 055 Cyan (2,100 pages*)**
Cartridge 055H Cyan (5,900 pages*)**
Cartridge 055 Magenta (2,100 pages*)**
Cartridge 055H Magenta (5,900 pages*)**
Cartridge 055 Yellow (2,100 pages*)**
Cartridge 055H Yellow (5,900 pages*)**

* Based on ISO/IEC 19752
** Printer ships with starter cartridge (Black: 1,200, C/M/Y: 1,200 pages)

CST.Feeding Module-AF1 (550-sheet cassette)
Barcode Printing Kit-E1E
MiCard Multi (Card reader for identification with RFID or magnetic cards with uniFLOW)
Micard Plus (Card reader for identification with RFID or magnetic cards with uniFLOW)
MiCard Attachment Kit-B1
