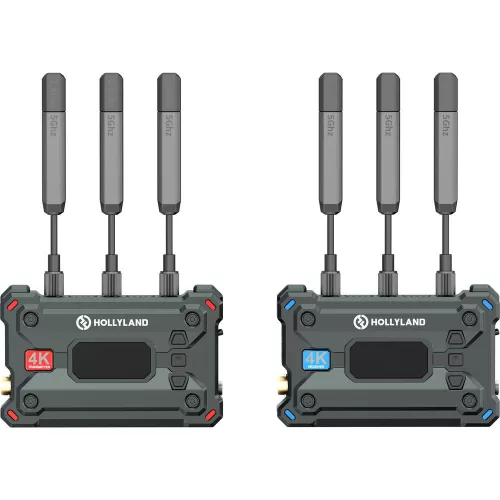

HOLLYLAND PYRO S (4K) Wireless Video Transmission System // vezeték nélküli videoátvitel (HDMI / SDI)

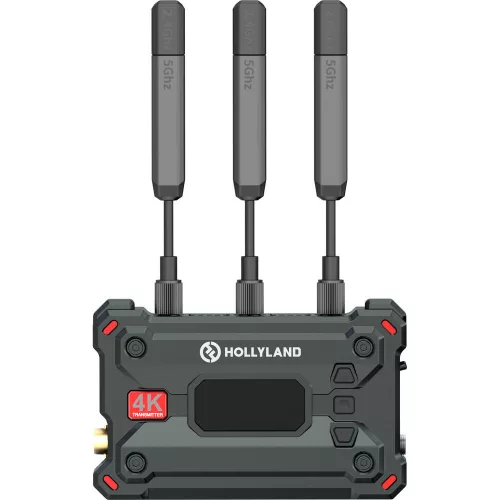

Specifications, Transmitter

Port

• DC Input: 2.0mm Core Socket
• HDMI Input: HDMI 1.4b
• SDI Input: 3G SDI
• USB-C: USB 2.0 OTG
• Antenna: SMA Male

Power Supply

• Battery Voltage Range: 6.8 - 8.4V
• DC Voltage Range: 6 - 16V

Power Consumption

• < 11W

Net Weight

• 207g

Dimensions

• Lx Wx H: 112 x 71.2 x 34.1mm (4.4 x 2.8 x 1.3in.)

Input/Output Format

• HDMI Input

• 720p50/59.94/60

• 1080150/59.94/60

• 1080p23.98/24/25/29.97/30

• 1080p50/59.94/60

• 3840*2160 30/25/24/29.97/23.98

• SDI Input

• 1080p60/59.94/50

• 1080160/59.94/50

• 1080p30/29.97/25/24/23.98

• 720p60/59.94/50

• 1080psf23.98/24

• 1080psf25/29.97/30

Operating Frequency

• 5 GHz Frequency Band

  • 5.150 - 5.250 GHz
  • 5.250 - 5.350 GHz
  • 5.470 - 5.725 GHz
  • 5.725 - 5.850 GHz

• 2.4 GHz Frequency Band

  • 2.412 - 2.484 GHz

Transmit Power

• < 23 dBm

Latency

• as low as 50ms

Bandwidth

• 20 MHz (Broadcast: 40 MHz)

Temperature

• 10 - 45°C (working)

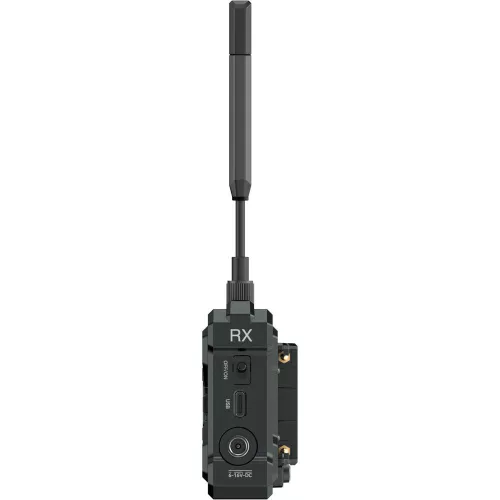

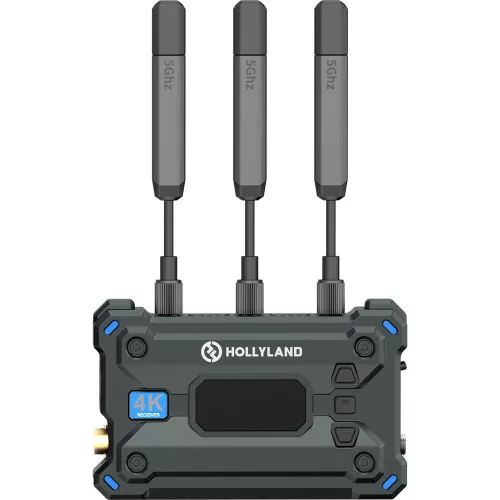

Specifications, Receiver

Port

• DC Input: 2.0mm Core Socket
• HDMI Input: HDMI 1.4b
• SDI Input: 3G SDI
• USB-C: USB 2.0 OTG
• Antenna: SMA Male

Power Supply

• Battery Voltage Range: 6.8 - 8.4V
• DC Voltage Range: 6 - 16V

Power Consumption

• < 8W

Net Weight

• 207g

Dimensions

• Lx Wx H: 112 x 71.2 x 34.1mm (4.4 x 2.8 x 1.3in.)

Input/Output Format

• HDMI Output

  • 720p50/59.94/60
  • 1080150/59.94/60
  • 1080p23.98/24/25/29.97/30
  • 1080p50/59.94/60
  • 3840*2160 30/25/24/29.97/23.98

• SDI Output

  • 1080p50/59.94/60
  • 1080150/59.94/60
  • 1080p23.98/24/25/29.97/30
  • 720p50/59.94/60
  • 1080p23.98/24
  • 1080150/59.94/60

Operating Frequency

• 5 GHz Frequency Band

  • 5.150 - 5.250 GHz
  • 5.250 - 5.350 GHz
  • 5.470 - 5.725 GHz
  • 5.725 - 5.850 GHz

• 2.4 GHz Frequency Band

  • 2.412 - 2.484 GHz

Receiver Sensitivity

• -85 dBm (Broadcast: -80 dBm)

Latency

• as low as 50ms

Bandwidth

• 20 MHz (Broadcast: 40 MHz)

Temperature

• 10 - 45°C (working)
• 40 - 60°C (storage)

In The Box

• Pyro S Wireless Video Transmitter*1
• Pyro S Wireless Video Receiver*1
• Paddle Antenna (2.4 GHz & 5 GHz)*7
• Rotatable Cold Shoe Mount*1
• USB-C OTG Adapter*1
• User Manual*1
• Packing List Card*1
• Warranty Card*1
• 12V/2A DC Power Adapter*1
• Compliance Information*1
• Hollyland Ecosystem Leaflet*1*
