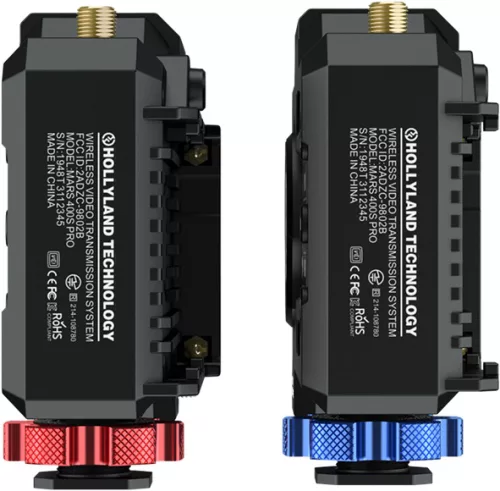

HOLLYLAND Mars 400s PRO vezeték nélküli videoátvitel (HDMI+SDI) (MARS400S PRO)

MARS 400S PRO is using the latest coding, decoding technology, and 5G wireless transmission technology.

It can achieve ultra-low latency wireless video transmission.

It has a transmission range over 400ft with a clean line of sight (LOS) when the transmitter is connected to 1 or 2 receivers.

MARS 400S PRO can also support 2 APPs monitoring when connected with 1 receiver. It supports up to 1080P 60Hz image resolution.

And both transmitter and receiver is equipped with L-series battery-plate and can also be powered by DC adapter or USB-C interface.

** Key Features**

• Supports 1 Transmitter Connects With 2 Receivers
• Supports Up To 2 Mobile Devices Monitoring While Only 1 Receiver Is Connected. Supports Up To 4 Mobile Devices Monitoring without Receiver connecting
• OLED Display Screen
• Channel Scan
• Three Application Scene Modes
• Battery Voltage Display
• 400ft (kb. 150m) Transmission Range (LOS)
• Lowest Latency is 0.08s

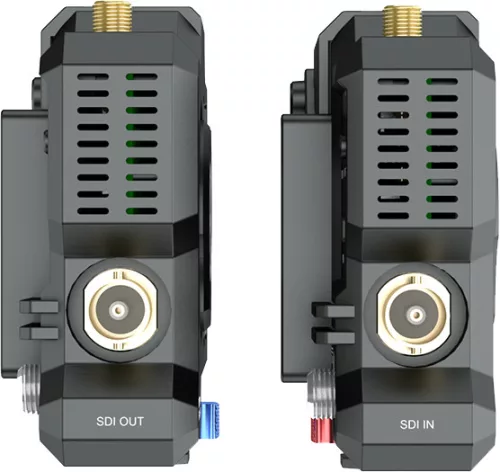

• Both HDMI & SDI Connection Options
• USB Firmware Upgrade

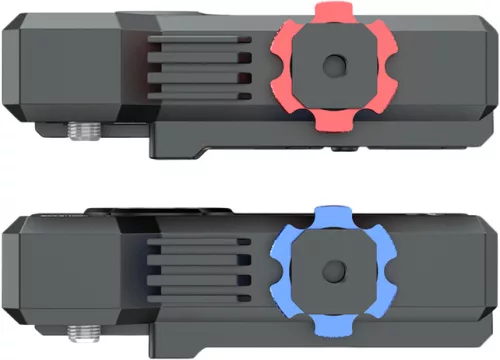

• Integrated Cold Shoe for Quick Installation
• Supports DC Power, USB Type-C Power Supply and Battery Power Supply

Specifications Transmitter:

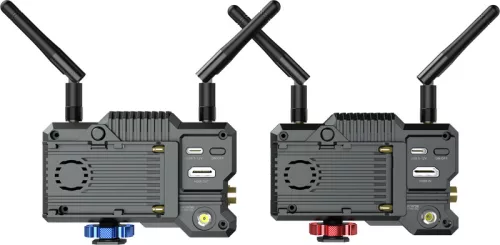

• Interface: HDMI Input (type A female), SDI Input, 2 Antenna interfaces (RP-SMA male), DC input, Type-C USB
• Supply power range: 6~16V DC, USB Type-C Power supply 5V/2A
• Power Consumption: <11W
• Net weight: 206g
• Dimension: (LxWxH): 110x72x33.5mm (external antennas and battery plate excluded)
• Input / Output Video format: HDMI: 480p60, 576p50, 720p50/59.94/60, 1080i50/59.94/60, 1080p23.98/24/25/29.9/30, 1080P50/59.94/60, SDI: 1080P60/59.94/50(Level A), 1080P60/59.94/50(Level B), 1080i60/59.94/50, 1080P30/29.97/25/24/23.98, 1080Psf25, 720P60/59.94/50, 1080Psf24/23.98
• Frequency: 5GHz
• Modulation Mode: OFDM
• Transmission Power: Maximum 21dBm
• Receiver Sensitivity: /
• Transmission Latency: 0.08s
• Bandwidth: 20MHz

Specifications Receiver:

• Interface: HDMI Output (type A female), SDI Output, 2 Antenna interfaces (RP-SMA male), DC input, Type-C USB
• Supply power range: 6~16V DC, USB Type-C Power supply 5V/2A
• Power Consumption: <7W
• Net weight: 206g
• Dimension: (LxWxH): 110x72x33.5mm (external antennas and battery plate excluded)
• Input / Output Video format: HDMI: HDMI: 480P60, 576P50, 720P50/60, 1080i50/60, 1080P24/25/30, 1080P 50/60, SDI: 1080P60/50(Level A), 1080i60/50, 1080P30/25/24, 720P60/50, 1080i50(1080Psf25/24/23.98 Input), 1080i60(1080Psf30/29.97 Input）
• Frequency: 5GHz
• Modulation Mode: OFDM
• Transmission Power: /
• Receiver Sensitivity: -80dBm
• Transmission Latency: 0.08s
• Bandwidth: 20MHz
