TECHNICAL SPECIFICATIONS:
|
IMAGE SENSOR
|
|
|
Effective Pixels
|
Approx. 13.0 MP
|
|
|
|
|
LENS
|
|
|
Focal Length
|
25.4 mm (35 mm equivalent:)
|
|
Zoom
|
Fixed
|
|
Aperture
|
f/2.2
|
|
View Angle (FOV)
|
Approx. 78 degrees (Diagonal)
|
|
EIS (Electronic Image Stabilization)
|
Yes
|
|
|
|
|
FOCUSING
|
|
|
Focusing Range
|
50cm - infinity
|
|
|
|
EXPOSURE CONTROL
|
|
|
ISO sensitivity
|
AUTO (ISO range: 100 – 3200)
|
|
|
|
CONTROLS
|
|
|
Auto-power Off
|
Yes (3 mins / 5 mins / 10 mins)
(Setting on app)
|
|
Self Timer
|
Yes (OFF / 3 sec / 5 sec / 10 sec)
(Setting on app)
|
|
Remote Shutter
|
Yes (on app)
|
|
Reset Button
|
Yes
|
|
|
|
WHITE BALANCE
|
|
|
Settings
|
Auto
|
|
|
|
|

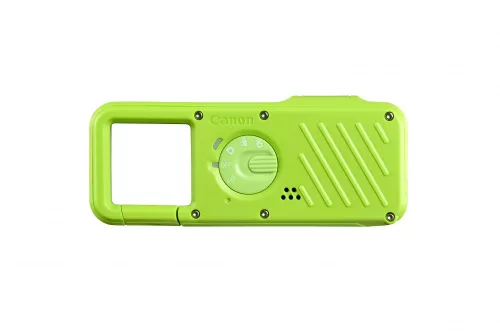

CONTROL PANEL
|
|
|
1. Mode Dial ( OFF / Photo Mode / Video Mode / Multi Mode / Wireless Mode - for Live View and access to microSD card DCIM folder)
2. Shutter Button
|
|
|
|
RECORDING PIXELS
|
|
|
Single Still Photo
Image Size
|
4: 3 Image
L: 4160 x 3120, M: 2944 x 2208,
S: 2080 x 1560
1: 1 Image
L: 3104 x 3104, M: 2208 x 2208,
S: 1568 x 1568
|
|
Video Recording Resolution
|
(Full HD) 1080p @ 60fps, 1080p @ 30fps
(HD) 720p @ 30fps (support Live View Recording)
|
|
|
|
|
FILE TYPE
|
|
|
Still Image
|
JPEG
|
|
Video
|
MPEG-4
|
|
|
|
MEMORY CARD
|
|
|
Type
|
MicroSD / MicroSDHC / MicroSDXC
(Class 10 or above is recommended, up to 256GB)
|
|
|
|
|
SUPPORTED OPERATING SYSTEMS
|
|
|
Compatible OS
(for Mobile app)
|
iOS 11 or above
Android 5.1 or above
|
|
Compatible OS
(for Computer)
|
Windows 7 / 8 / 8.1 / 10
Mac OS X 10.10-10.14
|
|
SOFTWARE
|
|
|
Mobile Application
|
Canon Mini Cam
|
|
Connection for Charging and Data Transfer
|
USB 2.0 (Micro USB)
|
|
|
|
POWER SOURCE
|
|
|
Battery
|
Built-in rechargeable lithium polymer battery, 660mAh, 3.8 V
|
|
Battery life
|
Approx. 1000 shots
Video Recording: approx. 60 min for 1080p @60fps
|
|
Charging Speed
|
Approx. 180 mins (full charge)
|
|
|
|
ACCESSORIES
|
|
|
Other
|
Interface Cable (micro USB), supplied
|
|
|
|
PHYSICAL SPECIFICATIONS
|
|
|
Operating Environment
|
-10 °C – +40 °C, <70 % relative humidity
|
|
Recommended Operating, Charging & Storage Temperature
|
15 °C – 32 °C
|
|
Recommended Operating Humidity (RH)
|
40-55 % RH
|
|
Dimensions (W x H x D)
|
110.5 x 45.2 x 18.5 mm
|
|
Weight
|
Approx. 90 g
|
|
|
|
INTERFACE
|
|
|
Connectivity to
External Mobile Device
|
Wi-Fi (IEEE 802.11 b/g/n)
Bluetooth® Low Energy 4.2
|
|
|
|
OTHER FEATURES
|
|
|
Microphone
|
Yes (Mono)
|
|
GPS
|
GPS via Mobile
(linked to a compatible smartphone)
|
|
NFC
|
N/A
|
|
Date and Time
|
Yes (sync via APP)
|
|
Water and Dust Proof
|
IP68 (max 2 metres, up to 30 mins)
|
|
Shockproof
|
2 metres
|
All data is based on Canon standard testing methods
(according to CIPA Standards) except where indicated.
Subject to change without notice.
Shockproof up to 6.6 ft./2 m. The shock resistant testing methods are unique to this product and do not guarantee against damage or malfunction of the product.
Waterproof up to 30 min. at a depth of 2 m or 6.6 ft.
