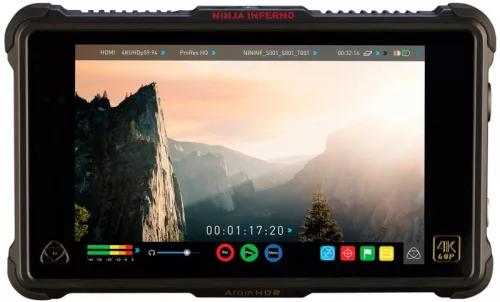

Atomos Ninja Inferno (ATOMNJAIN1)

Cikkszám:

ATOMNJAIN1-

Atomos Ninja Inferno (ATOMNJAIN1)

Cikkszám:

ATOMNJAIN1-

Az ATOMOS 4K-s felbontású, 60p-s HDR SSD-s rögzítője, amely veszteségmentes tömörítéssel rögzíti a 4K felbontású anyagot, 7"-os 1920x1200-as felbontású kijelzővel rendelkezik. HD felbontásban 3D-s anyagok rögzítésére is alkalmas, és akár 120 képkocka/másodperces sebességű rögzítésre is képes. HDMI be és kijáratokkal rendelkezik. A kijelzőn kivezérlés mérő és vektorszkóp is megjeleníthető.

A doboz tartalma:

1x Atomos Ninja Inferno
1x puha tok
1x Master Caddy II merevlemez/SSD tok
1x hálózati adapter

Gyártó:

Atomos

Nincs raktáron

Részletek

Weight
Without batteries & media	630g / 22.2oz
With batteries & media	1074g / 37.9oz
Dimensions (W x H x D mm)	214 x 127 x 45mm, 8.4 x 5 x 1.8”
Construction	High quality lightweight ABS Polycarbonate for durability & portability
	Built-in armor protection

Power
Operating power	10 - 33W
Compatible batteries	NP-F series and supporting accessories
Input voltage (battery)	6.2V to 16.8V
Battery time (based on 2 x 7.4V batteries)	-
	5200mAh - up to 1.5hrs (monitor & record 4K 30p)
	7800mAh - up to 2.2hrs (monitor & record 4K 30p)
DC In	1 x DC in (6.2 - 16.8V)
Continuous power * Patent pending	Primary-secondary battery system. Change batteries without losing power Loop batteries continuously

Touchscreen
Size	7.1”
Resolution	1920 x 1200
PPI	325
Aspect ratio	16:9 native
Color Gamut	REC709 HDTV
Look up table (LUT) support	3D LUT (.cube format)
Anamorphic de-squeeze	2x, 1.5x, 1.33x, Panasonic 8:3
Technology	SuperAtom IPS panel (capacitive touch), calibration to Rec.709 with optional calibration unit

HDR
AtomHDR	Yes
Supported Log formats	Sony SLog2 / SLog3, Canon CLog / CLog 2, Arri Log C, Panasonic Vlog, JVC JLog, Red LogFilm, FujiFilm Flog
Supported Gamuts	Sony SGamut / SGamut3 / SGamut3.cine Canon Cinema / BT2020 / DCI P3 / DCI P3+ Panasonic V Gamut Arri Alexa Wide Gamut
Bit depth	10-bit (8+2 FRC)
Brightness	1500nit (+/- 10% @ center)
HDR input (PQ/HLG) HDR output (PQ/HLG)	Yes / Yes Yes / Yes

Video input/loop out
HDMI	1 x HDMI (2.0)
SDI	-
Signal	Uncompressed true 10-bit or 8-bit 422 (camera dependent)

Video output (play out)
HDMI	1 x HDMI (2.0)
SDI	-
Signal	Uncompressed true 10-bit or 8-bit 422 (playback file dependent)

Supported loop out formats
HDMI to HDMI	720p 50/60, 1080i 50/60, 1080p 24/25/30/50/60/100/120 2160p 24/25/30/50/60

Supported Codecs & frame rates (record & playback)
Video to ProRes / DNxHR (DNx utilizes a .MOV wrapper)^**	Brand / Model / Codec Refer camera compatibility list; atomos.com/cameras ProRes (HQ, 422, LT) DNxHR (HQX,HQ,SQ,LB)	Resolution / Framerate 4K DCI; 24/25/30/50/60p 4K UHD; 24/25/30/50/60p 2K; N/A^*** 1080p; 24/25/30/50/60/100^/120^ 1080i; 50/60i 720p; 50/60p

Onboard processing
Pulldown removal	24/25/30pSF > 24/25/30p (2:2 pulldown) 60i > 24p (3:2 pulldown)
4K UHD downscaling	Yes - Loop-out and playback

Audio in/out (48kHz PCM audio)
HDMI	2 or 8ch 24-bit, camera dependent
Audio	2ch balanced XLR analog in/out Dynamic range >90dB Max signal level +24dBu Max analog gain +52dB 48V Phantom Power for Mic

Remote start/stop
HDMI	Auto HDMI Trigger Supported Protocols - Canon, Sony, Atomos Open Standard
Other	LANC control - Slave

Playback
Playlist / Genlock / LTC	Yes / No / No
CDNG (Recorded content)	N/A
ProRes (Recorded content)	All recorded files can playback. Playback in slow motion >= 100fps
DNxHR / DNxHD (recorded content)	All recorded files can playback. Playback in slow motion >= 100fps

Recording
Pre-roll record	Yes (HD 8s, 4K 2s)
Custom timelapse	Yes
Meta data tagging	Yes (10 tags available)
Supported media	2.5” SSD/HDD compatibility depends on recording format, resolution and frame rate. Visit atomos.com/drives for list of tested and approved drives
Master caddy case	Master Caddy II (included) 75mm x 105mm x 12mm
Master caddy dock	2.5” SATA to USB 2.0/3.0
Supported applications	Supported Applications FCPX/FCP7+ / Media Composer 5.0+ / Premiere 5.5+ EDIUS 6.0+ / Vegas Pro 10+ / Lightworks / Autodesk Smoke 2015
XML support	FCPX XML native, FCPX/Adobe limited supported with 3rd party conversion tools
Accessories included	Ninja Inferno unit, Master Caddy II x 1, 12V-3A AC power supply
Optional extras	Accessory Kit: 2 x battery, 1 x charger, 1 x power supply, HPRC case, USB dock, control cable, Dtap cable, Master Caddy x 4, Power supply, Sun hood Power Kit: 2 x battery, 1 x charger, 1 x power supply Other: Atomos HDMI cable, X-Rite i1DisplayPro calibration
